Acuity Brands sensorswitch SPODMRA SSA Installation Instructions

Active Configuration Mode

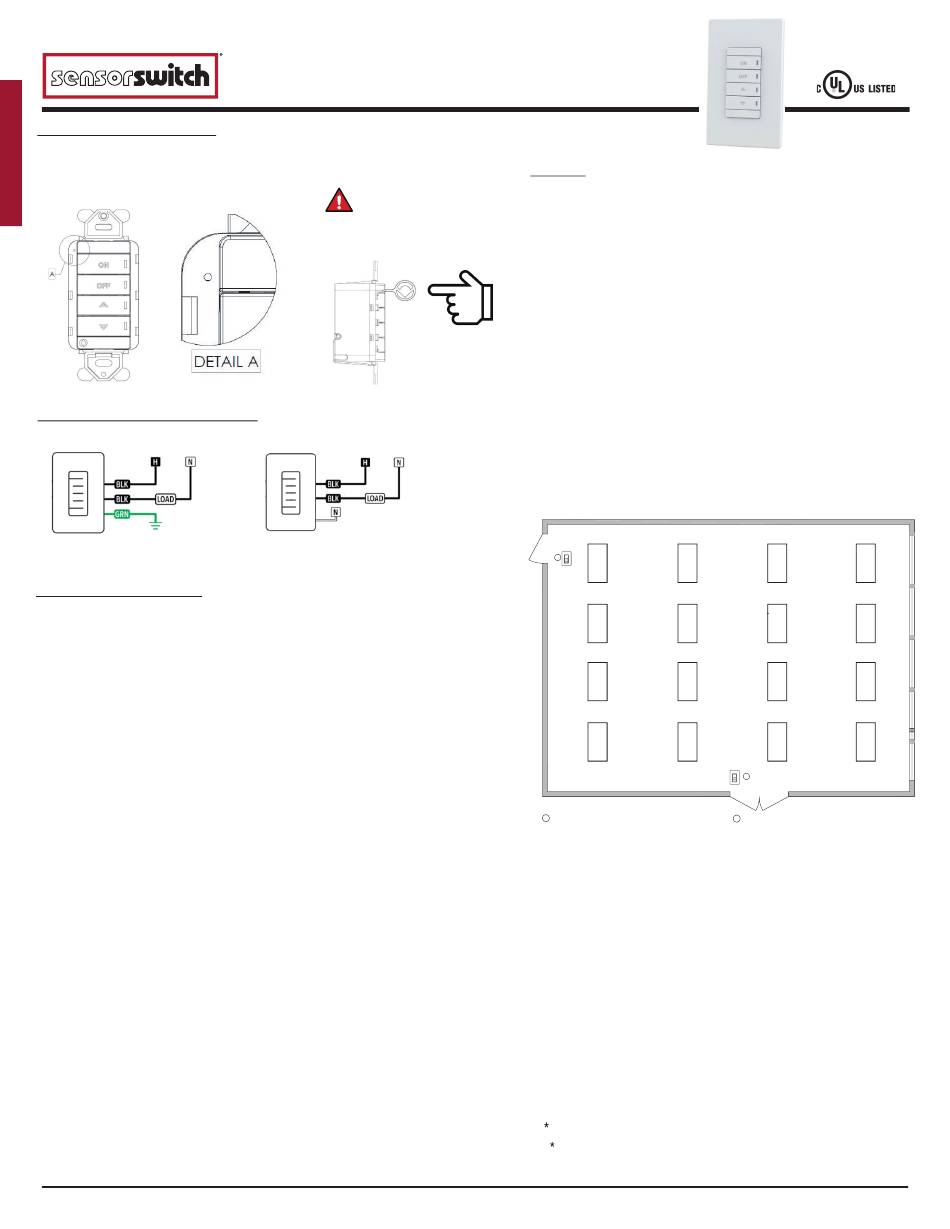

Locate the PIN hole as shown below. Insert pairing tool to start active configuration
mode, which allows for pairing and setting changes directly from the switch.
CONVERSION FROM GROUND ONLY:
neutral. If neutral is required, the unit easily converts in seconds by slipping off green sleeve.
OUTPUT RATING
20VAC, 800W, 6.7A; 277VAC, 1200W, 4.3A; 347VAC, 1500W, 4.3A
1
OPERATIONAL SETTINGS
Pairing tool must be inserted to perform any of the below operations. Press any button
on the front of the switch to enter mode.
2 = Occupancy Time Detection
Maintain the same light level after occupancy was last detected. When time expires, group
will enter prolong state (10% dim and off after 2.5 min). Prolong state is adjustable via app.
1 - Test Mode** 6 - 10.0 min 11 - 22.5 min
2 - 30 sec 7 - 12.5 min 12 - 25.0 min
3 - 2.5 min 8 - 15.0 min 13 - 27.5 min
4 - 5.0 min 9 - 17.5 min 14 - 30.0 min
5 - 7.5 min* 10 - 20.0 min
3 = Start Level
Level of light output when occupancy
is initially detected. Not applicable in
Automatic Dimming Control mode.
4 = On Mode
1 - Automatic On*:
Sensor automatically turns the light on when it detects occupancy.
2 - Manual On:
Sensor requires pressing the button to turn the light on.
5 = High Trim Setting (Maximum Brightness level)
1 - 1% 5 - 40%
3 - 20%
2 - 10% 4 - 30%
6 - 50%
6 = Join
"Join" places an unpaired device to join mode allowing the device to join an existing
group or initiate formation of a new group (using Join / Accept pairing method).
Join mode may also be used to form 3-way connections as shown in the typical.
7 = Accept
"Accept" places an paired or unpaired device into accept mode allowing the
device to accept a join mode device into the group or form a new group. For
group formation using Join / Accept pairing method, the accepting device
becomes the configurator represented by "GM" within the app.
Acuity Brands | One Lithonia Way Conyers, GA 30012 Phone: 800.535.2465 www.acuitybrands.com ©
912-00148-004
SPODMRA SSA
Dimming Wall Switch
Installation Instructions
WARNING
Only use pre-packaged tool.
DO NOT INSERT METAL INTO PIN HOLE!
WSXA SSA is pre-configured for wiring without
* Defualt Setting
**Test mode sets Occupancy Time Delay to 30 seconds
and increases photocell transition rate in addition to
disabling the microphone on units with Dual
Technology
1 - 10% 4 - 40% 7 - 70% 10 - 100%*
2 - 20% 5 - 50% 8 - 80%
* DEFAULT
SETTING
3 - 30% 6 - 60% 9 - 90%
7 - 60% 10 - 90%
11 - 100%*
8 - 70%
9 - 80%
PAIRING
Based on your wiring situation, there are multiple ways to pair your wall switch:
1. Power Interrupt Verifcation: When SensorSwitch AIR embedded or components
are on the load side of the wall switch, insert the tool as shown, then press and hold
any button for 6-seconds to start auto-pairing.
2. When the switch is on a different circuit, it can be accepted into a group via join /
accept pairing technique. Here are the steps and LED visual indicators:
a) Insert pairing tool to start "active configuration mode".
b) Visually, the LED in active configuration mode will double blink every second.
c) Press any button 6-times to place device in join mode. Visually represented by a
constanct LED blink.
d) On an existing device within the group, place that device in accept mode. Repeat
steps a and b as shown above; however, press any button 7-times to start the
accept mode. (see setting codes 6 and 7 for more details)
WARNING:
e) When using jin / accept pairing ensure other spaces are not being
paired at the same time; otherwise cross pairing may occur.
3. When pairing the switch using the Clarity+ app, use the intuitive app workflow. For
more information, see Clarity+ Quick Start Guide.
3-Way or (Multi-Way Application);
WSXA SSA
1
1
SETTING CODE 6 (Join a Group)
8 = Add Mobile Device (Clairity Pro)
Allow user to use mobile application of a pre-configured group.
9 = Reset PIN
Reset the PIN of a secure group
1 = Remove Local Device Only
10
1 - Do not remove 2 - Remove
* If device is the pairing device, used to form group, the group will "Restore"
all devices group back to factory default. This action will un-pair all devices.
** If device is not the pairing device, it will send a "Delete Node" message
to the pairing device for itself and restore itself back to factory defaults. It
will no longer be able to communicate with the group.
11 = Restore all Group Devices to Factory Default
1 - Do not remove 2 - Remove
12 = LOW TRIM SETTING (LOWEST DIM VALUE)
1 - 1% 3 - 20% 5 - 40%
2 - 10%
6 - 50%
4 - 30%
* Low trim value is driver dependent.
2025
Acuity Brands Lighting, Inc. All rights reserved. Rev.
WSXA SSA
2
2
SETTING CODE 7 (Accept New Device)
* and **
9 - 80%
7 - 60%
11 - 100%
8 - 70% 10 - 90%
02/11/2025 1 of 2
