Catalog Number:

OVERVIEW

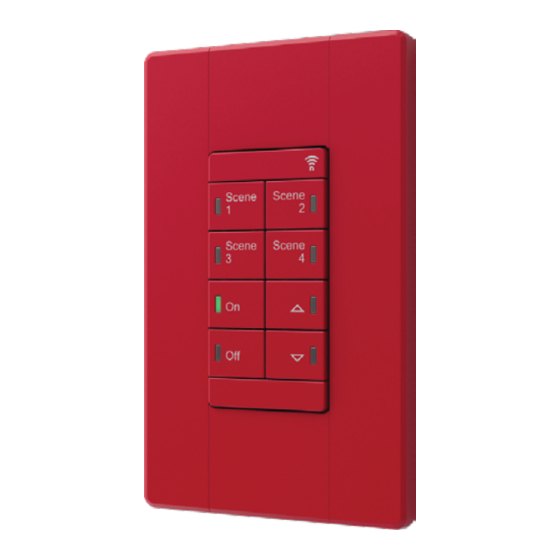

The nLight® AIR rPODBA is a wireless, battery-powered wall switch including toggle and/or raise lower
features with optional multi-pole control. It provides a user with local control of a lighting zone. A true
wire-free switch, these single gang decorator style devices have soft-click buttons and a green LED indicator
for each button. The wall switches communicate with other nLight AIR devices via radio frequency (RF). A
battery-powered wall switch can work with any nLight AIR enabled fixture or power pack to provide toggle
switch operation. Wall switches with the DX option have the added ability to adjust the level of any nLight
AIR controlled dimmable light fixture.

FEATURES

Powered with three off-the-shelf lithium AAA batteries and rated for 10 years of normal use, minimizing
battery replacement. (Battery replacement with alkaline batteries does not guarantee a 10-year run
time.)
Communicates with nLight AIR devices via radio frequency (RF) in the 900MHz spectrum
Soft-click push-button control
Single pole or two pole on/off control with optional raise/lower option ("DX" option)
2 or 4 preset scene control fully configurable via CLAIRITY™+ mobile app
Maximum of 4 total preset scenes per nLight AIR group
Batteries are included and preinstalled, allowing for a simple unbox and mount installation
Wireless multi location dimming

CUSTOM BUTTON ENGRAVING

Custom lettering for units can be specified and ordered at:
To ensure color uniformity, ordering templates facilitate specifying all buttons on a unit as custom
lettered. Replacing single buttons is not recommended
Custom buttons will ship separately and require field installation

Warranty

Five-year limited warranty. This is the only warranty provided and no other statements in this specification
sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete
warranty terms located at:
www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application.
Specifications subject to change without notice.
Capable
This item is an A+ capable component, which has been designed and tested to provide out-of-the-box
luminaire compatibility with simple commissioning, when included as part of an A+ Certified™ Solution.
To learn more about A+, visit www.acuitybrands.com/aplus.
nLight, nLight AIR and the Acuity Controls and Acuity Brands logos are trademarks of Acuity Brands. Bluetooth is a trademark of Bluetooth
SIG, Inc. used by Acuity Brands under license. Apple and the Apple logo are trademarks of Apple Inc. Android and Google Play are
trademarks of Google, Inc. Other trademarks are property of their respective owners.
rPODBA
Series
Poles & Scenes
RPODBA
[blank] Single Pole
2P
Two Pole
2S
2 Scene control (2 buttons)
4S
4 Scene control (4 buttons)
Acuity Brands | One Lithonia Way Conyers, GA 30012 Phone: 800.535.2465 www.acuitycontrols.com
© 2019-2022 Acuity Brands Lighting, Inc. All rights reserved. Rev. 09/01/22
Date:
nGrave Form
Dimming Control
[blank] On/Off Control
DX
On/Off + Raise/Lower Control
Project:
nLight
®
rPODBA:
Battery-Powered
Wall Switch
Note: nLight® AIR devices are only compatible with other nLight AIR
enabled devices and are not cross compatible with other nLight product lines
at this time.
Color
Generation
WH White
G2
Generation 2 Compatibility
IV
Ivory
AL
Light Almond
BK
Black
GY
Gray
RD
Red
AIR
Example: RPODBA 2P DX WH G2
RPODBA
1 of 4
