Summary of Contents for Technicolor OWA7111

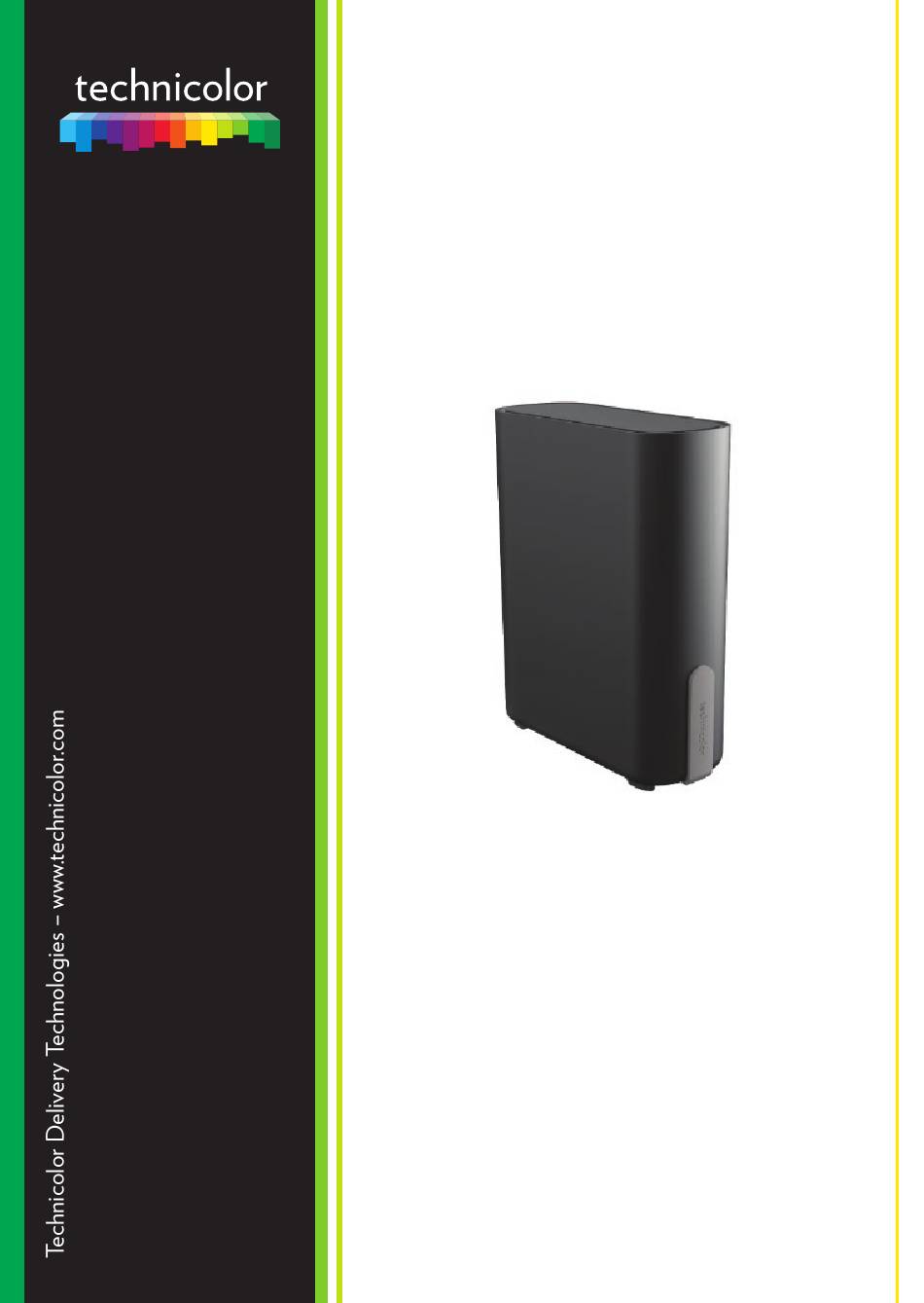

- Page 1 OWA7111 Quick Setup Guide...
-
Page 3: Before You Start
1. Before you start • Carefully read the Safety Instructions and Regulatory Notices document included in your package before continuing with the installation of your OWA7111. • Do not make any connections until instructed to do so! 2. Check the content of your box... - Page 4 3. About the OWA7111 3.1. Wi‑Fi Wi‑Fi 6E Enabled with the latest Wi-Fi 6E technology, the OWA7111 offers ultimate wireless networking by improving latency, providing faster throughputs, better performance, and optimal link stability in your local network. Wi‑Fi radios • The OWA7111 is equipped with: •...
- Page 5 The USB port (optional) is reserved for future use. Reset button (item F) When the OWA7111 is powered on and you press the Reset you can restart or reset “6.4. How to repair an unresponsive Wi-Fi 6E extender” it. For more information, see page 9.
-
Page 6: Led Behavior
Power port (item H) The power port allows you to connect the power supply. Warning: Only use the power supply delivered with your OWA7111. 4. LED behavior 4.1. Front LED Indicator Status Description Signal Powered-off Blue Normal System boot blinking Blue... - Page 7 4.2. Back LED Indicator Status Description Signal Fast WPS pairing failed blinking Green Slow WPS process started blinking Green Solid WPS pairing success See “6.2. Optimizing the link quality” on page 7 for more information. RSSI Indicator Signal strength Signal Green Good Orange...
- Page 8 ) of the OWA7111 and then plug the other end into a nearby power outlet. 3 Press the power ( ) button on the back of the OWA7111. Wait until the LED turns purple color. 4 Briefly press the WPS button on the OWA7111.
-
Page 9: Tips And Tricks
1 Take the included Ethernet cable (this is the cable with the yellow connectors). Connect one end of the Ethernet cable to the red Ethernet WAN ( ) port on the back of your OWA7111. Connect the other end of the Ethernet cable to an Ethernet or LAN port of your Internet gateway. - Page 10 1 Unplug the power supply and move the OWA7111 closer to your access point, or to a place with less obstacles between the OWA7111 and your access point. 2 Plug in the power supply and wait two minutes to allow the OWA7111 to start up all services and evaluate the link quality.
- Page 11 ACCESS KEY printed on the label of your Wi-Fi 6E extender as password. Note: If this is the first time that you sign in, the OWA7111 may offer you to change your password. 4 The Wi-Fi 6E extender web interface appears with all settings available.
- Page 14 Technicolor Delivery Technologies – www.technicolor.com *6331557A* Copyright © 2023 Technicolor. All rights reserved. All tradenames referenced are service marks, trademarks, or registered trademarks of their respective companies. Specifications subject to change without notice. 6331557A DMS3-QIG-25-747 v1.0...
