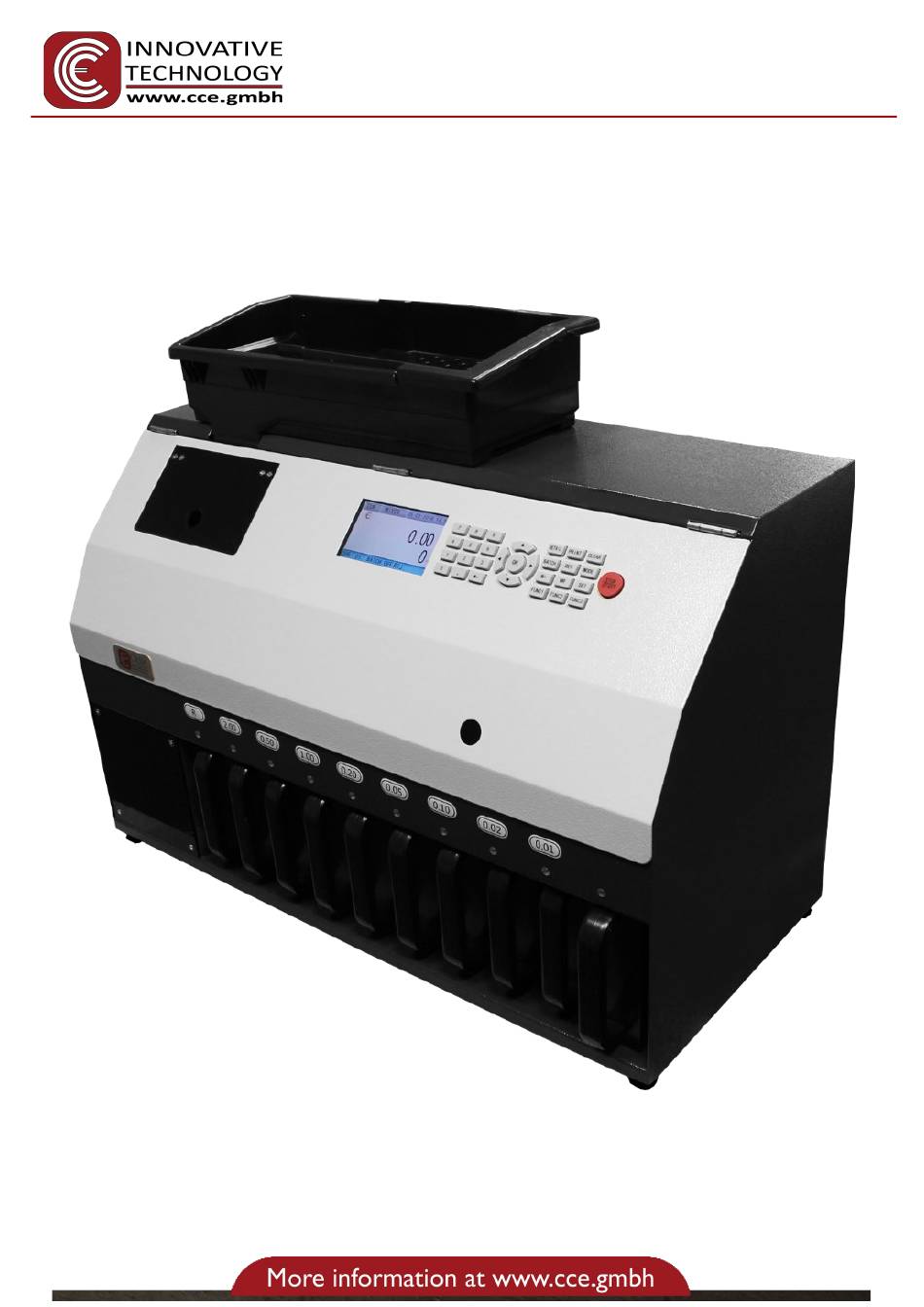

- Page 1 CCE 4200/4300/4400 User Manual CCE GmbH – Von-Behring-Straße 6 A – 88131 Lindau Tel. +49 (0) 8382 – 943 15 – 33 / Fax +49 (0) 8382 – 943 15 – 20 / office@cce.gmbh Page [1]...
-
Page 2: Table Of Contents
CCE 4200/4300/4400 User Manual Contents Introduction........................................3 Warnings ..........................................3 Description .........................................4 Differences CCE 4200 / CCE 4300 / CCE 4400..............................5 Putting into operation ......................................5 Display indication .......................................6 Report function ........................................6 Sorting function (CCE 4200 only) ..................................6 Memory function .......................................7 Batch counting / counting stops ..................................7 Settings in the Setup menu ....................................8... -
Page 3: Introduction
Introduction Thank you for choosing the CCE 4200 / 4300 / 4400. This coin counting and sorting machine is designed to simplify your daily cash register or vending machine accounting. The sorting function allows the coins to be fed in mixed. You will then receive the result per coin type and of course the total sum. -
Page 4: Description
CCE 4200/4300/4400 User Manual Description Description Photo Coin chute (tiltable) Access to transport area / hopper (can be opened) Display (see below) Panel (see below) Sorting and counting area (can be opened) Built-in thermal printer (optional) Reject compartment for rejected coins... -
Page 5: Differences Cce 4200 / Cce 4300 / Cce 4400
4300 sorts 1 cent and 2 cent coins uncounted into the reject box. All texts and graphics in the manual were created on the basis of the CCE 4400. The CCE 4200 is a pure All-In / All-Out counter, but can sort out one coin per run. -
Page 6: Display Indication
Total 537.00 Sorting function (CCE 4200 only) By pressing the MODE button you can change the setting from MIXED (All-in/All-out). You can then select a denomination, have it counted and sorted and all other coins are sorted out. Press the MODE button and you will see the first coin value "MX1 C1" displayed and behind it the denomination to be counted. -
Page 7: Memory Function
CCE 4200/4300/4400 User Manual Memory function The counting machine has a buffer memory to add certain counting results and / or perform check counts. When using the memory function, please proceed as follows. Start the counting process and wait until it is finished. -
Page 8: Settings In The Setup Menu
CCE 4200/4300/4400 User Manual Settings in the Setup menu Please note that mistakes made in the setup menu may affect the functionality and performance of the machine. Some items in the setup menu are reserved exclusively for service technicians. Please do not make any changes here. -
Page 9: Setup: 5 Buzzer / Acknowledgement Tones
CCE 4200/4300/4400 User Manual Setup: 5 Buzzer / Acknowledgement tones In this menu item you can switch the acknowledgement tones on and off by pressing buttons. Use the arrow keys up and down to select the desired setting "Enable" (sound on) or "Disable" (sound off). Confirm the selection with OK. Exit the menu via CLEAR. -
Page 10: Setup: 12 Upgrade Software / Software Updates
CCE 4200/4300/4400 User Manual Setup: 12 Upgrade Software / Software Updates Before selecting this menu item, insert an appropriate update stick into the USB slot on the back. Confirm the confirmation prompt with OK to start the update process and cancel the process with CLEAR. -
Page 11: Error Management And Maintenance
CCE 4200/4300/4400 User Manual Error management and maintenance The CCE 4400 is equipped with a comprehensive error management system to inform you about problems during the processing of coins, but also to draw your attention to soiled sensors. Please pay particular attention to the instructions below on cleaning the machine to prevent errors caused by contaminated sensors and to ensure optimum results when counting coins. -
Page 12: Coin Learning And Relearning
User Manual Coin learning and relearning With the help of these instructions, you can improve the detection of genuine coins in the CCE 4200 / 4300 / 4400 coin counters if the sorting rate is too high. Please note urgently: Only one type of coin can be scanned at a time during each scanning process. -
Page 13: Error Message
Changing the fuse The CCE 4200 / 4300 / 4400 is protected by a fuse that you can easily replace if necessary. Before changing the fuse, please switch off the machine and disconnect the mains plug from the machine. There is a danger to life due to electric shock if this is not done. -
Page 14: Scope Of Delivery
30-75 % Dimensions: CCE 4400: 662 x 308 x 518 mm / CCE 4300: 540 x 308 x 518 mm / CCE 4200: 480 x 410 x 280 mm Weight: CCE 4400: approx. 25 kg / CCE 4300 approx. 22,5 kg / CCE 4200 approx. 15,0 kg...
