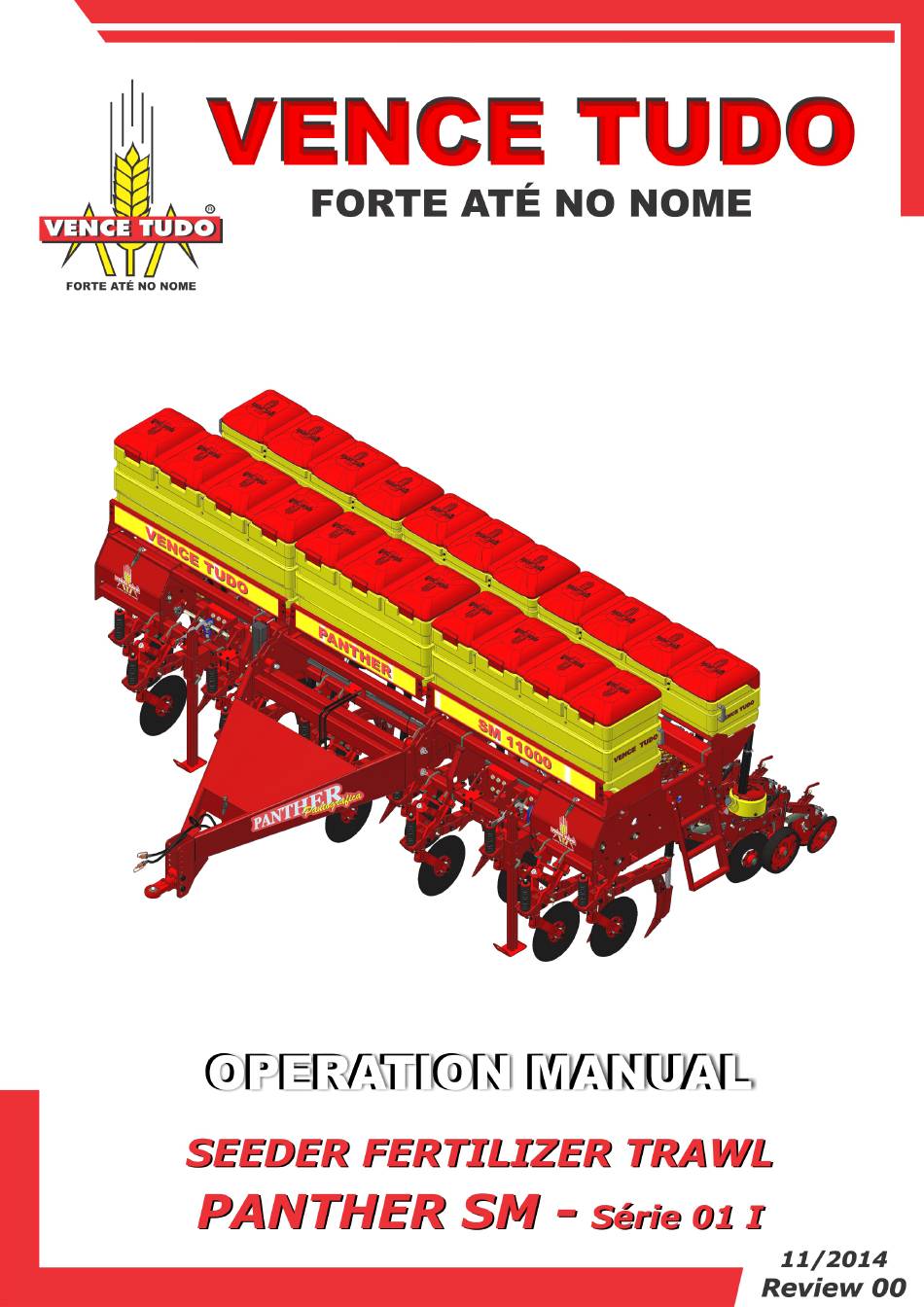

- Page 1 PANTHER SM...
- Page 2 PANTHER SM...
- Page 3 The correct interpretation of this manual, will give you conditions to do the necessary replacement according to the equipment models identified and described. If any doubts come over during any work operation, get in touch with VENCE TUDO LTDA; therefore, we can solve your doubts through the CUSTOMER TECHNICAL ASSISTANCE so that we can improve our customer service, being sure of a strong relationship between VENCE TUDO and YOU.
- Page 4 TO THE VENCE TUDO CUSTOMER Farming friend, you are from congratulations when acquiring a product VENCE TUDO; the development of our products is based mainly on the user’s sa- tisfaction. Your satisfaction in the hour of picking the profits generated through our implements is ours also.
- Page 5 PANTHER SM WARRANTY #______ The warranty of the VENCE TUDO products, it is assured to the acquirer, for the period of 01 (one) year; starting from the acquisition date; against manufacture or material defect that may cause the operational compromising of the product, except for components acquired of third, which have their own manufacturer’s warrantees.
- Page 6 PANTHER SM I declare having received on this date, the model described before, according to the speci- fications above in a perfect state and that the warranty terms were accepted by me. DATE: ____/____/____ CUSTOMER: _____________________________________ DELIVERY DATE: ______/______/______...
- Page 7 PANTHER SM INDEX ...
- Page 8 PANTHER SM ...
- Page 9 MODEL, YEAR and SERIAL NUMBER of the product. These data are located in the Product’s Identification Plate, fixed on the chassis, always on the left side. When need to replace any parts, always use original VENCE TUDO parts. To make the iden- tification of each part easier, see the PARTS CATALOGUE.
- Page 10 PANTHER SM CARE WITH THE ENVIRONMENT Mr. Farmer! Let us value the nature. The uncontrollable spilling of residues in the soil and in the water, it harms the life of all the living beings of the planet. Spilling in the soil and in the water, lubricating and combustible oils, plastic packing, and of agroche- micals, etc;...
-
Page 11: Safety Rules
PANTHER SM SAFETY RULES - The improper operation of this equip- ment can cause serious wounds or death. Before using it, be sure that the operator. - Was instructed for safe and appropriate use; - Read understood the operation manual of the product; - Removed people close to the operational area;... - Page 12 PANTHER SM THIS INDICATIVE SYMBOL SHOWS SITUATIONS OF SECURITY IN THIS OPERATION MANUAL. OBSERVE AND READ WITH ATTENTION THE MESSAGES TO PREVENT PERSONAL ACCIDENTS. Only people with the complete knowledge of the tractor-seeder group should operate it and to do repairs in the components and kits; with the maximum security; The farmers should follow the recommendation on the use of chemical products in doses recommended by the manufacturer and the responsible agronomist always.
- Page 13 PANTHER SM Have the maximum of care when making the coupling of the tractor to the seeder. Do not allow anybody to stay between the seeder and the tractor; Be sure that there is not anybody or animals close to the seeder neither whenever you lift nor lower it to the ground;...
-
Page 14: Technical Specification
PANTHER SM TECHNICAL SPECIFICATION * Considering these spacing, moving the row with interference with the cross member or wheeled of about 2cm to the left or to the right will be necessary. ** Restriction because consecutive 2 rows are assembled in the same alignment. - Page 15 PANTHER SM TECHNICAL SPECIFICATION * Considering these spacing, moving the row with interference with the cross member of about 2cm to the left or to the right will be necessary. ** Restriction because consecutive 2 rows are assembled in the same alignment. NOTE: - The dimensions, weights and capacities as well as any other information shown in this manual are subject to changes without any prior notice.
-
Page 16: Basic Dimensions
PANTHER SM Basic Dimensions MODEL PANTHER SM 9000 4523 3940 3600/2800 2997 1457 2717 4211 2184 1929 PANTHER SM 10000 4960 4380 4050/3300 3185 1457 2717 4370 2184 1929 PANTHER SM 11000 5390 4817 4560/4000 3185 1457 2717 4370 2184 1929 PANTHER SM 12000 5880... -
Page 17: General Characteristics
PANTHER SM General Characteristics COUPLING: Pulled by the tractor drawbar. HEADER: Articulated with adjustment for the coupling height in the drawbar. It allows positioning for transport and/or storage. CHASSIS: Monobloc. WHEELED: Wheels with independent direction compose it. Flanged rims, fastened by screws, form it;... -
Page 18: General Information
PANTHER SM GENERAL INFORMATION 1- When receiving your Seeder it is extremely important to check the product conditions and accessory box, particularly regarding the use of original components; 2- The “right side” and “left side” identifications were considered by observing the machine from back to front;... -
Page 19: Components Identification
PANTHER SM COMPONENTS IDENTIFICATION 01- FRAME 02- WHEELS 03- HEADER 04- FERTILIZERS RESERVOIR 05- SEEDS RESERVOIR 06- FERTILIZER FEEDER – ENDLESS WORM 07- FERTILIZER FEEDER – FERTISYSTEM 08- SEEDS FEEDER 09- STRAW CHOPPING SYSTEM 10- DEPOSITOR AND CONDUCTOR KNIFE OF FERTLIZERS 11- SEEDS DEPOSITING 12- COMPRESSION MECHANISM 13- DEPTH STOP... - Page 20 PANTHER SM COMPONENTS IDENTIFICATION PIPOQUEIRA SYSTEM 01- FRAME 02- WHEELS 03- HEADER COUPLING 04- FERTILIZERS RESERVOIR 05- PIPOQUEIRA SEEDS RESERVOIR 06- PIPOQUEIRA RESERVOIR 07- STRAW CHOPPING SYSTEM 08- KNIFE DEPOSITOR AND CONDUCTOR OF FERTILIZERS 09- SEEDS DEPOSITING 10-DEPTH STOP 11- COMPACTER 12- PANTOGRAPHIC SYSTEM 13- GEAR ENGAGED 14- HYDRAULIC SYSTEM...
- Page 21 PANTHER SM COMPONENTS IDENTIFICATION SEED SYSTEM 01- FRAME 02- WHEELS 03- HEADER COUPLING 04- SEED RESERVOIR 05- SEED RESERVOIR 06- HANDRAIL 07- STRAW CHOPPER SYSTEM 08- KNIFE PLOW 09- SEEDS DEPOSITING 10- HEADER 11- COMPACTER 12- PANTOGRAPHIC SYSTEM 13- GEAR ENGAGED 14- HYDRAULIC SYSTEM 15- DEPTH STOP 16- ROW MARKER (OPTIONAL)
- Page 22 PANTHER SM PREPARATION Seeder Header and Support In order to lift the header, remove the lock-pin with ring (A) (pic. 01),remove the pins (B), lift the header and put the pins in the holes (C) and (D), locking it with the lock-pin with ring (A). pic.
- Page 23 PANTHER SM Seeder Coupling - Tractor When performing the Seeder coupling and uncoupling to the tractor, do it in a flat, firm ground; Perform the movement with the tractor at slow speed toward the Seeder and be attentive to break the movement of the tractor. Make the attachment of the header to the tractor drawbar;...
- Page 24 PANTHER SM Tires pressure The use of an ideal pressure for the job allows perfect contact with the ground while maintaining the essential flexibility to a longer tires durability. The use of low or high pressure can cause serious and irreversible damage to the tires.
- Page 25 PANTHER SM Alteration of Seeds Row and Fertilizer Row spacing PROCEDURES FOR CHANGING DISTANCE: 01- Change the spacing doing it on a plan, firm and clean place; 02- Lower the support legs; 03- Place props against the two rear ends of the chassis; 04- Power the hydraulic cylinders, moving down the planting rows;...
- Page 26 If the seed chosen does not fit any of these discs, look for a Vence Tudo authorized dealer to purchase an optional set of distribution discs. Below are the models of seed discs available for supply.
- Page 27 PANTHER SM MODELS FOR OPTIONAL SEEDSFEEDER DISCS CROP DISC COLOR NUMBER OF HOLES HOLE TYPE OF HOLE SOYBEAN – GRAIN PER GRAIN * Gray 7 mm Double-row round BEANS – GRAIN PER GRAIN Light Gray 7 x 12 mm Double-row oblong SORGHUM 5.5 mm Double-row round...
- Page 28 PANTHER SM SEEDS DISTRIBUTOR DISCS Select the correct disc and make the necessary replacements as well, cleaning them frequently. For checking or replacing the discs, press the lever (A), lift the reservoir (B) and release the plate (C) locked by fasteners (D). C h e c k i n g o r r e p l a c i n g d i s c s , m a ke adjustment of the ring gap (E), by releasing the nut (F), and adjust the possible gap in the ring-disc...
- Page 29 PANTHER SM IMPORTANT The roller working position must be in the center of the distributor disc orifice. If the roller is used in a different position, it can cause wear on the disc and it is a problem in the distribution of the seeds.
- Page 30 PANTHER SM TRANSMISSION OF THE SEED SHAFT Activate the lever (A) (pic. 03) to ease the stretcher (B) of the chain. Move the gears on the shaft, aligning the gears with the chain, set the bushings (C), release the lever (A) to release the tensioner (B). pic.
- Page 31 PANTHER SM * 23,40 = 10 wheel turns x circumference 2,340m GERMINATION CORRECTION (PERCENTAGE) N = 4 plants / linear meter ________________ 96% N________________ 100% N = 4,16 CORRECTION OF SLIDE (PERCENTAGE) N = 4,37 4,37 is the number of plants per linear meter that should be used in the adjustment of the Seeder.
- Page 32 PANTHER SM IMPORTANT High working speeds affect the uniformity of distribution of seeds and fertilizer. Whenever a change in formulation, lot or manufacturer of seeds and fertilizers, make the measurements of quantities again. THEORICAL CALCULATION – FERTILIZERS DISTRIBUTION In order to a better determination of the fertilizers distribution, proceed as follows: 1-Collect the amount of fertilizers in a row through 10 turns of the drive Wheel, use more than one collection point and take the average to make the weighing easier;...
- Page 33 PANTHER SM Fertilizers Distribution System FERTILIZER DISTRIBUTION – ENDLESS THREAD WORM The adjustment of the amount of fertilizer in kg/hectare is achieved by the endless worm (A) (pic. 05) and the exchange of driving sprockets (B) and driven sprockets (C), driving dipstick (D) and driven dipstick (E) (pic.
- Page 34 PANTHER SM...
- Page 35 PANTHER SM Fertilizer Distribution System FERTILIZER DISTRIBUTION – FERTISYSTEM The adjustment of the amount of fertilizer per kg/hectare is achieved by the endless worm (A) (pic. 08) and the exchange of driving sprockets (B) and driven sprockets (C), driving dipstick (D and driven dipstick (E) (pic.
- Page 36 PANTHER SM...
- Page 37 PANTHER SM IMPORTANT For increasing productivity and reducing the loss of agricultural inputs i.e. unevenness in the application along the sown area is important to have the greatest care when performing the adjustments in the Seeder. Make daily measurements with the desired amounts of fertilizer and seeds per hectare because it is in the planting that the production of the new crop to be harvest is defined.
-
Page 38: Hydraulic System
PANTHER SM Hydraulic System PLACEMENT OR REMOVAL OF HYDRAULIC CYLINDERS Place the cylinder (A) (pic. 11), to the support (B), which is attached to the chassis frame through screws (C). After placing the cylinder, insert the pin (D),put the spring rings (E) and assemble the hoses (F). - Page 39 PANTHER SM HOSESINSTALLATION (DOUBLE WHEELS) Place the hoses in the direction of flow tractor-Seeder(A) (pic. 13), to the upper entry of the larger cylinder(B). Put the hose (C) in the bottom outlet of the larger cylinder (B) and connect the hose to the upper entry of the smaller cylinder (D). Attach the hose in the direction of the Seeder-tractor (E) and in the bottom outlet of the smaller cylinder (D).
- Page 40 PANTHER SM HOSESINSTALLATION (TRIPLE WHEELS) Place the hoses in the direction of flow tractor-Seeder (A) (pic. 14), to the upper entry of the larger cylinder (B). Put the hose (C) in the bottom outlet of the larger cylinder (B) and connect the hose to the upper entry of the smaller cylinder (D).
- Page 41 6-Gradually increase the pressure until you get the lift of the Seeder in a normal lift speed (about 120 Kg/cm2); 7-If the problem persists please contact the technical assistance department VENCE TUDO. IMPORTANT IF THE HYDRAULIC SYSTEM HAS A VERY HIGH PRESSURE, IT SHOULD BE ADJUSTED.
- Page 42 PANTHER SM SAFETY REGULATIONS - TRANSPORT SHIPPING ON A TRUCK OR TRAILER When shipping on a truck or trailer use loading ramps for loading or unloading the Seeder. Do not perform these operations on ravines, it may cause serious accidents. When using pulleys, choose appropriate points for lifting.
-
Page 43: Operation
PANTHER SM OPERATION IMPORTANT The Seeders SM PANTHER have several adjustments that must be observed considering the local conditions in order to determine the best adjustment. To check and adjust the cutting parts (discs and plows), turn the ratchet off to avoid waste. - Page 44 PLANTING SET WITH MOVABLE PLOW - SKIP STONE This planting set, which is called “Skip Stone”, was pioneered developed by VENCE TUDO LTDA., in order to meet the need of planting in a soil with many stones. The mechanism is based on a set on which are attached the cutting disc and the plow in the same device.
- Page 45 PANTHER SM Depth and Position of Fertilizer Plow – Skip Stone and Cutting Disc Height The position of the plow can be adjusted vertically. In this regard, simply release the plow knife (A) (pic. 16) and change the depth of the groove by changing the position of the screws (B). pic.
- Page 46 PANTHER SM Fertilizer Double Discs - Optional It was developed aiming to perform a groove-shaped “V” to place the fertilizer in the bottom of it in light and well-drained soils. It is formed by a set of double mismatched discs 15” and 15” (A) (pic. 18), which are assembled on an interchangeable structure(B) bolted to the plow row (C) (D).
- Page 47 PANTHER SM Double Disc Assemblage When using the fertilizer double disc (F) or the second cutting disc, the row must be locked by the pin (E) and the spring (D) should not be pressured. The cutting disc depth is determined by the increasing of spring pressure (A) (pic. 20) displacing with the guide key (B) which is locked by the nuts (C).
- Page 48 PANTHER SM Seeds Rows Insulation When planting using spacing where it is necessary the insulation of the intermediary rows (non-used rows), remove the seeds distributor discs and lift the row, proceeding as below: Remove the pressure of the springs (C) (pic. 22) by the lever (A). Remove the springs (C), remove the screw (B) and lift the row, putting on with a wedge (D) (pic.23).
- Page 49 PANTHER SM The desired height of the depth limiter wheels should be adjusted in each planting row as follows: 1- Lift the planting rows in order to relieve the weight on the limiter wheels; 2-Release the spring latch (A) (pics. 25/26) and turn the handle (B) to the desired height on the indicator scale (C).
- Page 50 PANTHER SM Independent Depth Limiter - Optional The depth limitation is made individually through the depth wheels (A) (pic. 27) that are adjusted with the handle (B), each position allowing the adjustment of 1 to 1cm, as needed. pic. 27 Compacter in “V”- Optional The compacters in “V”...
- Page 51 PANTHER SM Compacter in “V” The compacters in “V” (A) (pic. 29), press the soil laterally in the seed and work with various pressure settings, according to soil conditions, crop residues, moisture, etc. Adjust the pressure by pulling the handle (B) changing the position in the regulator (C), adjusting the angle between the rollers, allowing removal or compaction approach in relation to the seed groove.
- Page 52 PANTHER SM The marker discs allowadjustments through the screws (D). To adjust the distance from the marker disc, loosen the screws (E) of the arm (F). This type of marker consists of a spring system (G), the pressure adjustment is made by the nut (H), allowing a uniform reading and easy adjustment in different types of soil.
- Page 53 PANTHER SM OPTION 2: Making the marking by the front tire of the tractor (on the outside).This option marking should only be used when the spacing require it. Otherwise, always use the option 1. To determine and regulate the length of the row marker arm practically, observe the diagram below: A= DISTANCE BETWEEN THE LAST ROW AND THE MARKER DISC.
-
Page 54: Maintenance
IMPORTANT Use only original VENCE TUDO parts. Using improvised parts mischaracterizes the product and hinders the warranty analysis in case of need to use the certificate of warranty. Do not use burned oil or diesel oil for lubricating the Seeder. - Page 55 PANTHER SM - Replace the worn parts that may affect the operation of the equipment; - Put new grease in hubs and inside the cap assembling them again; - Every 200 hours of work, check looseness in the bearings or ball bearings. IMPORTANT During the assemblage, make the necessary adjustments in the roller bearings so that the discs rotate freely.
- Page 56 PANTHER SM FERTILIZER FEEDER–SELF-LUBRICATING FERTISYSTEM MAINTENANCE OR REPLACEMENT OF COVERING AND WASHERS At the end of the harvest, check the covering (A) (pic. 30). If it is excessively worn, replace it after loosening and removing the screws (B). Also check if the felt (C), washer (D) and the cleaning washer (E) are worn.
- Page 57 PANTHER SM pic. 31 Note that the adjusting washers (I) must be carefully assembled. They provide smaller or larger space for the pinions adjustment (L and M).If it is necessary to replace the pinions, you must replace the entire assembly: driving pinion (L) and the moved pinion (M).
- Page 58 PANTHER SM FERTILIZER FEEDER – ENDLESS WORM For maintenance or replacement of the endless worm fertilizer feeder or making any repairs inside of it, proceed as follows: 1- Loosen the screws (D), which secure the base of the gear (E) releasing it; 2- Remove the cotter pin (H) and the axis (I) in the direction of the pin that does not need to be disassembled;...
-
Page 59: Technical Recommendations
WITH NO DETERGENT. 12- PROTECT THE SEEDER AGAINST CLIMATE FACTORS WHEN NOT USING THE MACHINE. 13- USE ONLY ORIGINAL VENCE TUDO SPARE PARTS. 14- READ THE OPERATION MANUAL CAREFULLY. FAILURE TO OBSERVE THE RELATED ITEMS CAN CAUSE SERIOUS DAMAGE TO THE... - Page 60 PANTHER SM Calculating the operating speed In order to calculate the operating speed proceed as the following: 1- Determine the time (in seconds) spent by the tractor – seeder to travel 50 meters (with the seeder stocked); 2- Measure it again to obtain an average amount; 3- Having done this, calculate according to the example below.
- Page 61 PANTHER SM BOX OF ADDITIONAL PARTS The Fertilizer Seeder Vence Tudo PANTHER Series come along with a box of additional parts according to the choice made by the customer to suit the most varied growing conditions. When you receive your Seeder, check out the parts provided according to the model and assembly set...
