Summary of Contents for AMS AP 362

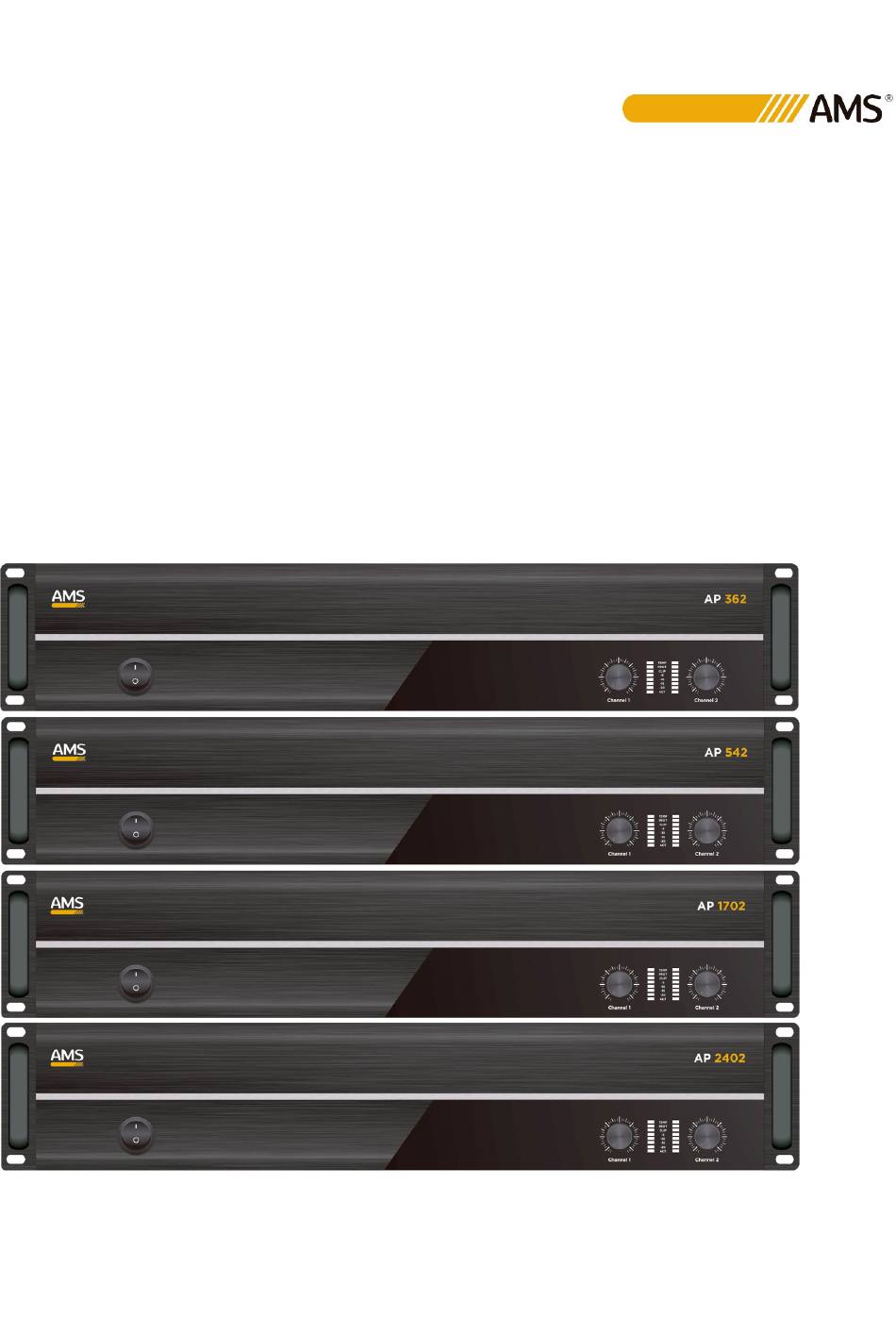

- Page 1 AP 362 / AP 542 AP 1702 / AP 2402 User Manual - Version 1.0...
- Page 2 9. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 10. Only use attachments/accessories specified by AMS. 11. Unplug this device during lightning storms or when unused for long periods of time.
- Page 3 OVERVIEW AP 362, AP 502, AP 1702 & AP 2402 are professional amplifiers for low impedance installations. In this way, it allows operation with 4 and 8 ohm speaker systems, as well as in Bridge mode. For this, it has a stereo / bridge mode selector, as well as a lift ground switch to prevent noise or hum caused by connecting other devices to ground.
- Page 4 FRONTAL VIEW The functionalities and controls are identical in ALL models. 1. Power on/off switch: It allows to power on/off the device. 2. CH 1 Volume: Rotate the knob the increase/decrease the volume of channel 1. 3. LED indicators: PROTECT: When a failure occurs inside the device, it lights up to indicate the protection state.
- Page 5 REAR VIEW 5. Inputs w/ XLR3: Each channel is equipped with balanced XLR 3 female and unbalanced RCA connectors. 6. Inputs w/ RCA: Each channel is equipped with unbalanced RCA connectors. 7. MODE selector: It switches from STEREO to BRIDGE configuration 8.
- Page 6 This short guide is meant to help and try to solve simple problems. If they continue and the device cannot operate, please, don’t try to repair it by yourself, return the device to your AMS dealer. If a problem occurs, carry out the following steps in sequence until find the problem solved.
- Page 7 9. Proteja el cable de alimentación para no ser pisado o pinzado, especialmente en los conectores, tomas murales y el punto desde donde sale del aparato. 10. Únicamente utilice accesorios especificados por AMS. 11. Desenchufe el dispositivo si no va a ser utilizado en largos periodos de tiempo.
- Page 8 Ambos amplificadores disponen de varios sistemas de protección, incluyendo cortocircuito y DC en la salida, sobretemperatura o limitador, así como función soft start. Su tamaño en 2 HU 19” standard, permite la colocación de varias unidades en un rack de transporte. Datos Técnicos: AP 362 AP 502 AP 1702 AP 2402...
- Page 9 VISTA FRONTAL Las funcionalidades y controles son idénticos en ambos modelos todos los modelos 1. Interruptor Power on/off : Permite encender/apagar la unidad. 2. Volumen CH 1: Gire el mando para incrementar/reducir el volumen del canal 1. 3. Indicadores LED: PROTECT: Cuando ocurre un fallo en la unidad, se enciende indicando el estado de protección.
- Page 10 VISTA TRASERA 5. Entradas con/XLR3: Cada canal está equipado con conector XLR3 hembra balanceado 6. Entradas con RCA: Cada canal está equipado con conector RCA desbalanceado 7. Selector de modo: Conmuta los modos de funcionamiento entre STEREO y BRIDGE 8. Salidas con XNL4: Cada canal está equipado con un conector XNL4 9.
- Page 11 Esta breve guía pretende ayudar y tratar de resolver problemas simples. Si continúan y el dispositivo no puede funcionar, por favor, no intente repararlo solo, devuelva el dispositivo a su distribuidor AMS. Si se produce un problema, realice los siguientes pasos en secuencia hasta que resuelva el problema.
