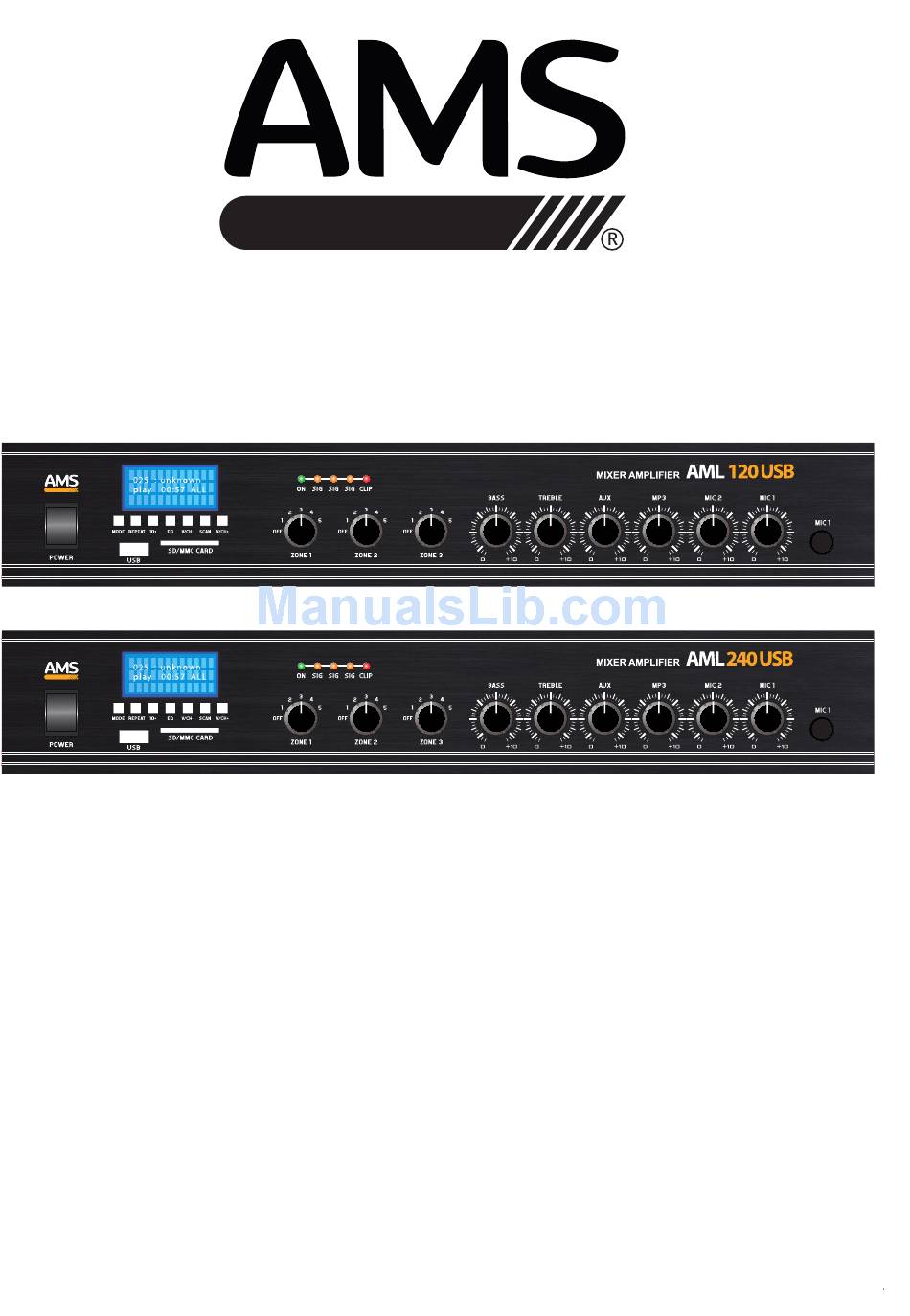

- Page 1 AML SERIES User Manual / Manual de Uso Rev 16.04.01...
- Page 2 SAFETY RELATED SYMBOLS WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN OR HUMIDITY.DO NOT REMOVE COVER. THIS PRODUCT IS NOT INTENDED FOR USE OTHER THAN STATED. External Connection GRAPHICAL SYMBOLS EXPLANATION This symbol, wherever used,alerts you to Always use proper ready-made insulated mains the presence of un-isulated and dangerous cabling (power cord).
-

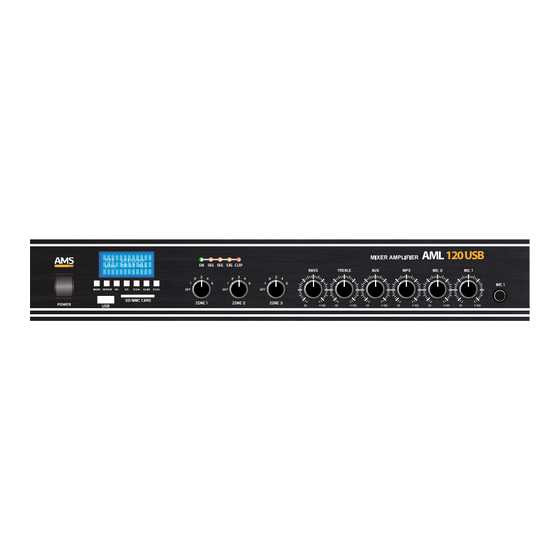

Page 3: Front Panel
FRONT PANEL 1. POWER SWITCH It allows to power on/off the device. 2. USB/SD PORTS They allow to connect an external device with audio files 3. DISPLAY/PLAYER INTERFACE Select the different modes (USB/SD-BT), files, repeat state, etc 4. ZONE OUTPUT VOLUME It is possible to select the output volume on each zone (5 positions+off) 5. - Page 4 18. VOLTAGE SELECTOR Select the adequate main supply input (115V/230V) 19. MAIN SOCKET INPUT Use the incorporated cable in order to connect the device to an adequate main supply input. AML 120 USB AML 240 USB MODEL POWER OUTPUT 100 v line...
- Page 5 SIMBOLOS DE SEGURIDAD WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN OR HUMIDITY.DO NOT REMOVE COVER. THIS PRODUCT IS NOT INTENDED FOR USE OTHER THAN STATED. EXPLICACION DE LOS SIMBOLOS GRAFICOS Conexionado Externo Este símbolo, cuando se use, le alerta de la Utilice un cable de alimentación aislado para el c presencia de una tensión peligrosa y no aislada...
-
Page 6: Panel Frontal
PANEL FRONTAL 1. INTERRUPTOR Permite encender/apagar la unidad 2. PUERTOS USB/SD Permiten conectar dispositivos externos con ficheros de audio 3. DISPLAY/INTERFAZ REPRODUCTOR Seleccione losa diferentes modos (USB/SD-BT), ficheros, etc 4. VOLUMEN ZONES Es posible seleccionar el volumen de salida de cada zona (5 posiciones+off) 5. - Page 7 18.SELECTOR DE TENSION Seleccione el valor adecuado de alimentación de entrada (115V/230V) 19. TOMA DE RED Use el cable de alimentación incorporado para conectar la unidad a una toma de alimentación correcta. AML 120 USB AML 240 USB MODELO POTENCIA DE SALIDA 100 v line...
- Page 8 AUDIOMUSIC Avda. El Saler, 6 - Pol. Ind. L´Alteró, 46460 - Silla (Valencia) Spain Tel. +34 963 124 088 Fax + 34 963 219 645 www.audiomusic.es audiomusic@audiomusic.es...
