RUVATI RVA5103 Installation Manual

RVA5103
Bathroom Sink Popup Drain
INSTALLATION GUIDE
Note: These instructions are for installing the drain with a vessel sink with no over ow:
1. Determine the position of the sink on your countertop and make a 1-3/4" hole in your
countertop aligned with the sink hole.
2. Apply silicone adhesive around the bottom of the sink and place the sink on the countertop
and align it with the countertop hole.
3. Insert the Drain Body and Rubber Ring through the top of the sink's drain opening.
4. From under the countertop, place the Rubber Ring on the base of the drain. Then push it
all the way up until it is ush with the counter.
5. Place the Foam Washer on the base of the Drain Body and push it up until it is ush with the
Rubber Ring.
6. Now, screw the Lock Nut all the way up until it meets the Rubber Ring.
7. Finally, screw the Tail Pipe to the end of the Drain Body until tight, but don't overtighten.
RUVATI USA
www.ruvati.com

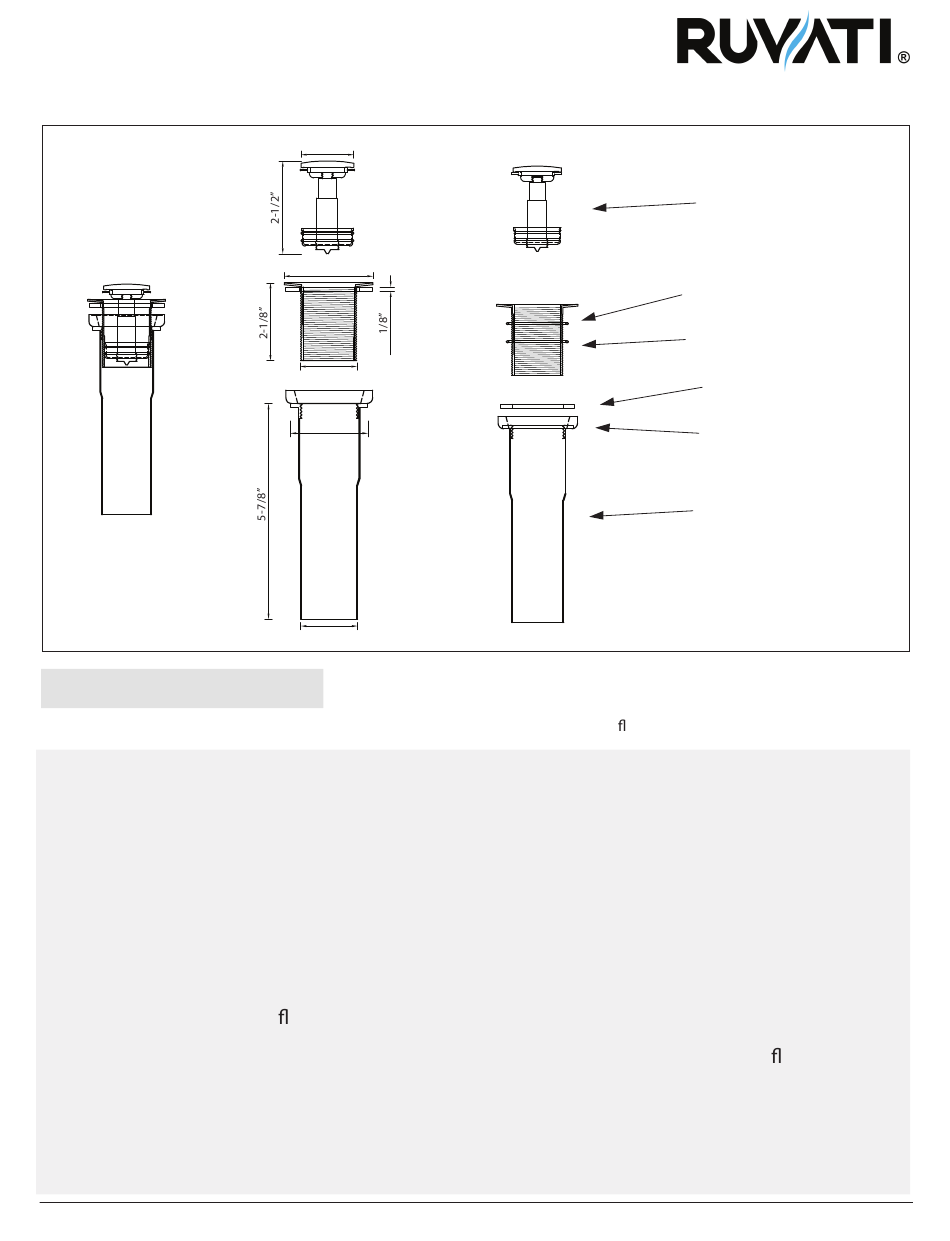

1-3/8"
2-1/2"
1-1/2"
2-1/4"
1-1/4"
Pop Up Drain Top
Rubber Ring
Rubber Ring
Foam Washer
Rubber Ring
Tail Pipe
