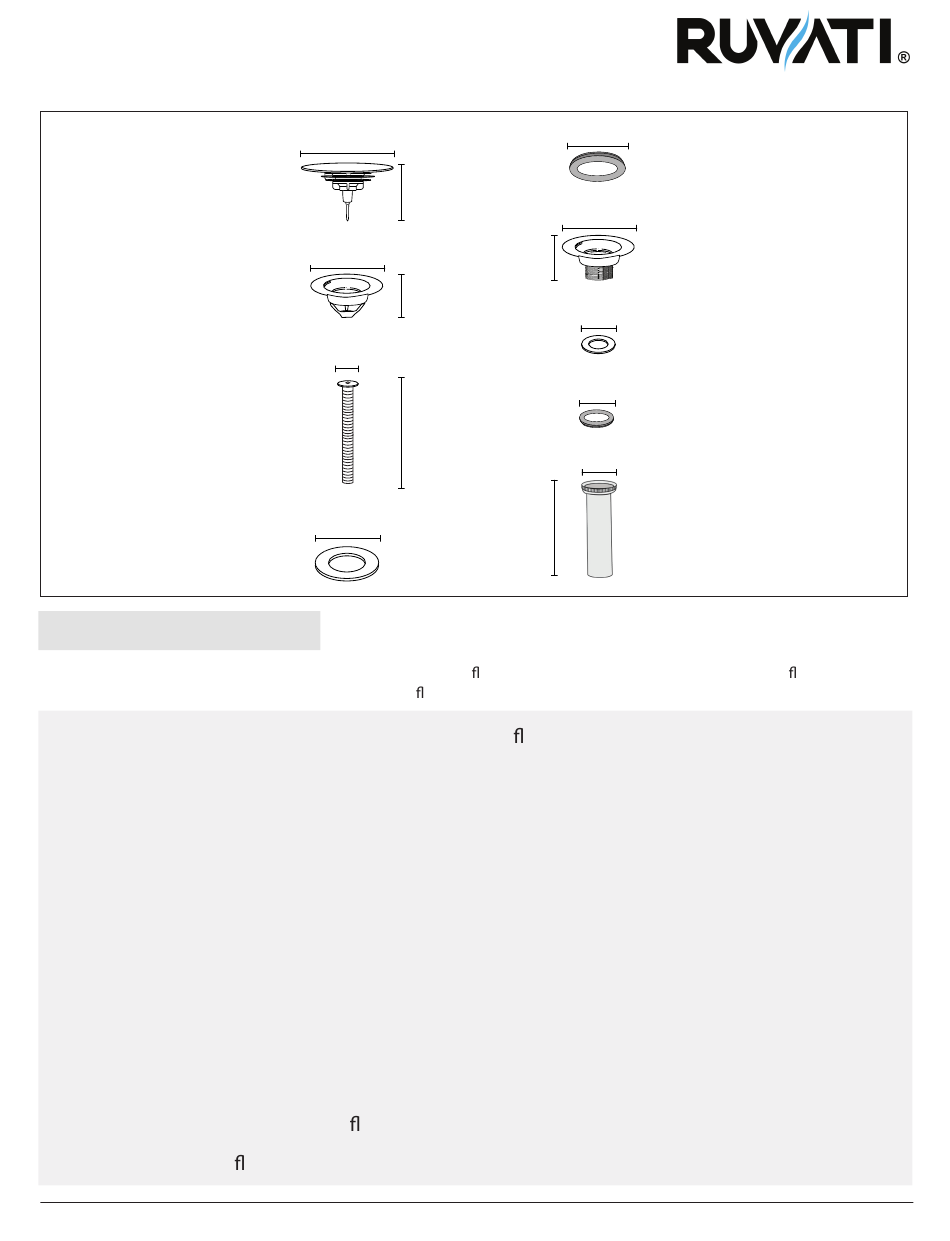

RUVATI RVA6104 Installation Manual

RVA6104
Bathtub Popup Drain
Pop Up Drain Top
Inner Flange
White Foam Washer
INSTALLATION GUIDE
Note: This pop-up drain assembly connects your tub to your oor plumbing. You will need to prepare your oor plumbing
properly, or have a rough-in kit in place on the oor. We recommend the OS&B Freestanding Tub Rough-in.
1. Lay the tub on its side. Have some blankets on the oor to prevent damage to the sides of the
tub.

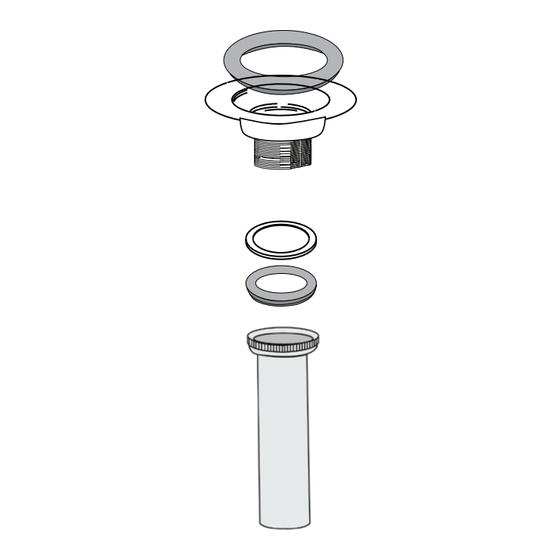

2. Insert the Inner Flange and White Foam Washer through the top of the tub's drain opening.
3. From under the tub, place the Black Rubber Ring and Outer Collar.
4. Insert the Screw from inside the Inner Flange and screw all the way into the Outer Collar.
Tighten fully with an allen wrench.
5. Attach the Tail Pipe to the bottom of the Outer Collar (make sure you have the Grey Plastic
Washer and the Black Rubber Washer in place) and tighten fully with your hand.
The Tail Pipe should now be tightly connected and not move if you try to twist by hand.
6. Push the Popup Drain Top into place.
7. Follow the instructions for your oor plumbing rough-in kit. The Tail Pipe of the drain assembly
will slide into your oor rough-in.
RUVATI USA
www.ruvati.com
2-3/4"
2-5/8"
7/16"
Screw
2-1/2"
2-1/2"
2-1/2"
2-5/8"
1"
1"
1-1/2"
1-1/2"
2-1/4"
5-1/2"
Black Rubber Ring
White Outer Collar
Gray Plastic Washer
Black Rubber Washer
2"
Tail Pipe
