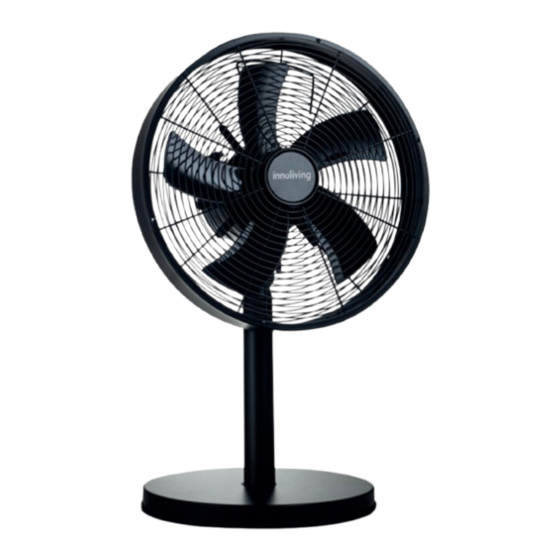

VENTILATORE DA TAVOLO IN METALLO MANUALE D’ISTRUZIONE Grazie per aver acquistato il ventilatore da tavolo in metallo INNOLIVING modello INN-530B. Leggere attentamente le istruzioni prima dell’uso e conservare il presente manuale per future consultazioni. AVVERTENZE E NORME DI SICUREZZA • Prima di utilizzare l’apparecchio, leggere attentamente le istruzioni per l’uso e in particolare le avvertenze sulla...
Page 4
PERICOLO DI LESIONI DOVUTE ALL’ACCIDENTALE CONTATTO CON LE PALE IN MOVIMENTO! • Il presente apparecchio deve essere utilizzato unicamente per lo scopo per cui è stato progettato, ovvero come ventilatore per uso domestico interno. Qualsiasi altro utilizzo è considerato non conforme e pertanto pericoloso.
Page 5
• Non tirare il cavo di rete per sollevare, trasportare o togliere la spina dalla presa di corrente. • Assicurarsi che il cavo non presenti nodi o piegature. • Verificare lo stato del cavo elettrico. Cavi danneggiati o annodati aumentano il rischio di scossa elettrica. •...
Page 6
• Proteggere il prodotto dalle temperature estreme, dalla luce solare diretta, da forti vibrazioni, dall’eccessiva umidità, dal bagnato, da gas, vapori o solventi infiammabili. • Assicurarsi che non vi siano parti, come tessili o capelli, che possano impigliarsi sulla pala del ventilatore. •...
Page 7
DESCRIZIONE DELLE PARTI 1. Corpo principale 2. Tasto oscillazione 3. Cavo di alimentazione e spina 4. Selettore velocità 5. Colonna 6. Base ASSEMBLAGGIO Non utilizzare il ventilatore se non debitamente assemblato. Fissaggio delle griglie e delle pale 1. Svitare le 4 viti dal corpo motore, posizionare la griglia posteriore e serrare le viti.
Page 8
3.Posizionare la griglia anteriore e fissarla al relativo supporto serrando le viti. Fissaggio del piedistallo alla base • Svitare la manopola (6) dalla parte inferiore del piedistallo (3) ed utilizzarla per fissare la base (4) al piedistallo stesso. • Posizionare il corpo del ventilatore (2) sul piedistallo (3).
Page 9
3. Assicurarsi che la tensione del ventilatore sia conforme alle condizioni di alimentazione locale prima di utilizzare il ventilatore. 4. Quando si posiziona il ventilatore su un tavolo o uno scaffale, verificare sempre che il cavo di alimentazione non penda, evitando che possa essere tirato accidentalmente facendo cadere il ventilatore.
Page 10
Consumo elettrico in modo “attesa” Consumo elettrico in modo “spento” Livello di potenza sonora del ventilatore L 57,52 dB(A) Velocità massima dell’aria 3,58 m/sec Consumo elettrico stagionale 10,46 (kWh/a) Norma di misura EN IEC 60879:2019 Referente Innoliving Spa Via Merloni 2/B Ancona...
METAL TABLE FAN USER MANUAL TThank you for purchasing the INN-530B INNOLIVING digital stand fan. Read the instructions carefully before use and keep this manual for future reference. WARNINGS AND SAFETY RULES • Before using the appliance, carefully read the instructions for use, especially the safety warnings, and follow them.
Page 13
MOVING BLADES! • This appliance must be used solely for its intended purpose as an indoor domestic fan. Any other use is considered improper and therefore dangerous. • This appliance is intended for DOMESTIC USE ONLY. • Packaging elements (plastic bags, cardboard, polystyrene, etc.) must not be left within the reach of children as they can pose a danger and should be disposed of in compliance with current regulations.
Page 14
knotted cords increase the risk of electric shock. • Do not touch or use the product with wet or damp hands or feet. Do not touch the plug or cord with wet or damp hands or feet. • Do not leave the product unattended while it is operating.
Page 15
• Never cover the product while it is in operation. • Risk of injury! Do not insert objects through the protective grill while the product is in operation. • Ensure that the cord does not come into contact with hot surfaces, incandescent elements, open flames, pots, or other hot utensils.
Page 16
ASSEMBLY INSTRUCTIONS Do not use the fan unless properly assembled. Attaching the grilles and blades 1.Unscrew the four screws from the motor body, place the rear grille and tighten the screws. 2. Place the blades on the blade holder and fix them by turning the knob to the left.
Page 17
Attaching the fan head and motor to the pedestal 1. Pedestal 2. Big knob to adjust the inclination 3. Fixing screw 4. Motor body 5. Small knob 6. Bolt • To begin with, remove the knob (2) and bolt (6) from the top of the tube, then remove the fixing screw (3) and small knob (5) from the motor body bracket.
Service value 1,14 /min)/W Standby power consumption Off power consumption Fan sound power level 57,52 dB(A) Maximum air velocity 2,73 m/sec Seasonal electricity consumption 10,46 (kWh/a) Measurement standard for service value EN IEC 60879:2019 Innoliving Spa Via Merloni 2/B Ancona Referent...
Page 20
Innoliving Spa Via Merloni, 2/B 60131 Ancona Italy Tel 071 2133550 www.innoliving.it MADE IN CHINA...
