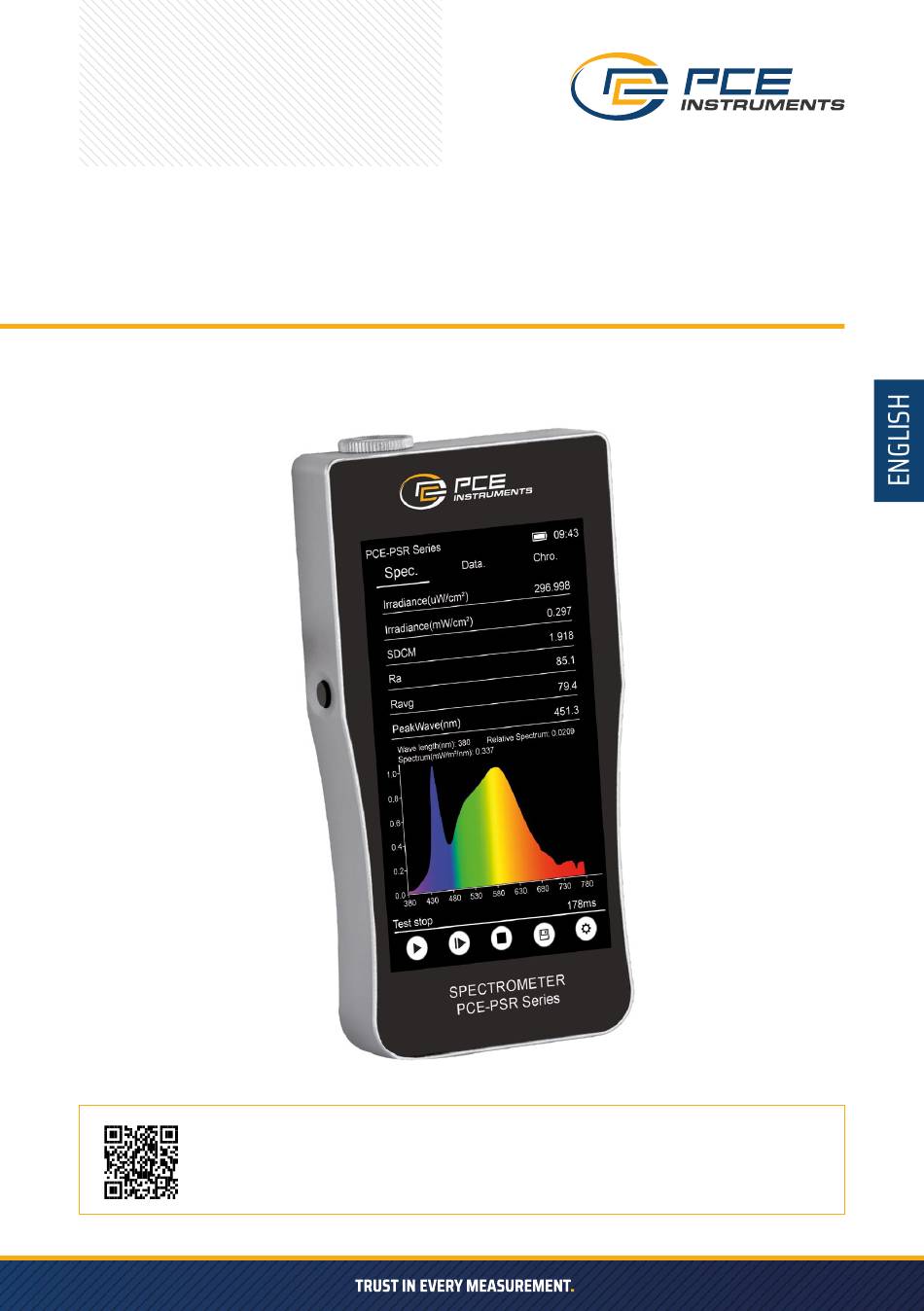

- Page 1 USER MANUAL SPECTROMETER PCE-PSR 100/ 200/ 300UV User manuals in various languages (français, italiano, español, português, nederlands, türk, polski) can be found via our product search on: www.pce-instruments.com...
-
Page 2: Specifications
SPECIFICATIONS Specifications of PCE-PSR series products: Model Function Wave-Range PCE-PSR 100 Illuminance (lux), E (Fc), Tc 380 ... 780 n m (K), Duv Correlated Color Temperature (CCT), Chromati- city Coordinates, CRI, Purity, Peak Wavelength, Dominant Wavelength, Half Bandwidth, Center Wavelength, Centroid... -
Page 3: Hardware Operation
HARDWARE OPERATION 1. Product packaging Accessories: 1. PCE-PSR 100, 2. Flannel bag, 3. USB cable... -
Page 4: Operation
Operation There is only one button on the appliance. Press and hold to switch the device on or off. Place the sensor on the sample light source, then you can perform the test. Note: You must place the sensor closer to the light source or carry out the test in a darkroom if you want to eliminate the influence of stray light. -
Page 5: Operating The Software
‘Settings’ interface of the device. Change the ‘USB communication’ mode to ‘File’. See the following figure. Then connect the PCE-PSR 100 to the computer using the USB cable. You can then view the files stored in the device, open the software and click to open the corresponding CSV file. - Page 6 And here is the report example.Note: The report will look a little different if you use a different model. 3. If you want to perform some tests directly with the software (note: the PCE-PSR 100 does not have this function), please change the ‘USB communication’ mode to ‘Serial’.
-
Page 7: Packing List
Then open the software. The test buttons turn green. Click on the button. The software and the device carry out the test simultaneously. The test results are displayed on the device and in the software after the test. PACKING LIST PCE-PSR 100 USB cable Charger Warranty card... -
Page 8: Subject To Change Without Notice
We either re-use them or give them to a recycling company which disposes of the devi- ces in line with law. For countries outside the EU, batteries and devices should be disposed of in accordan- ce with your local waste regulations. If you have any questions, please contact PCE Instruments. PCE INSTRUMENTS CONTACT INFORMATION...
