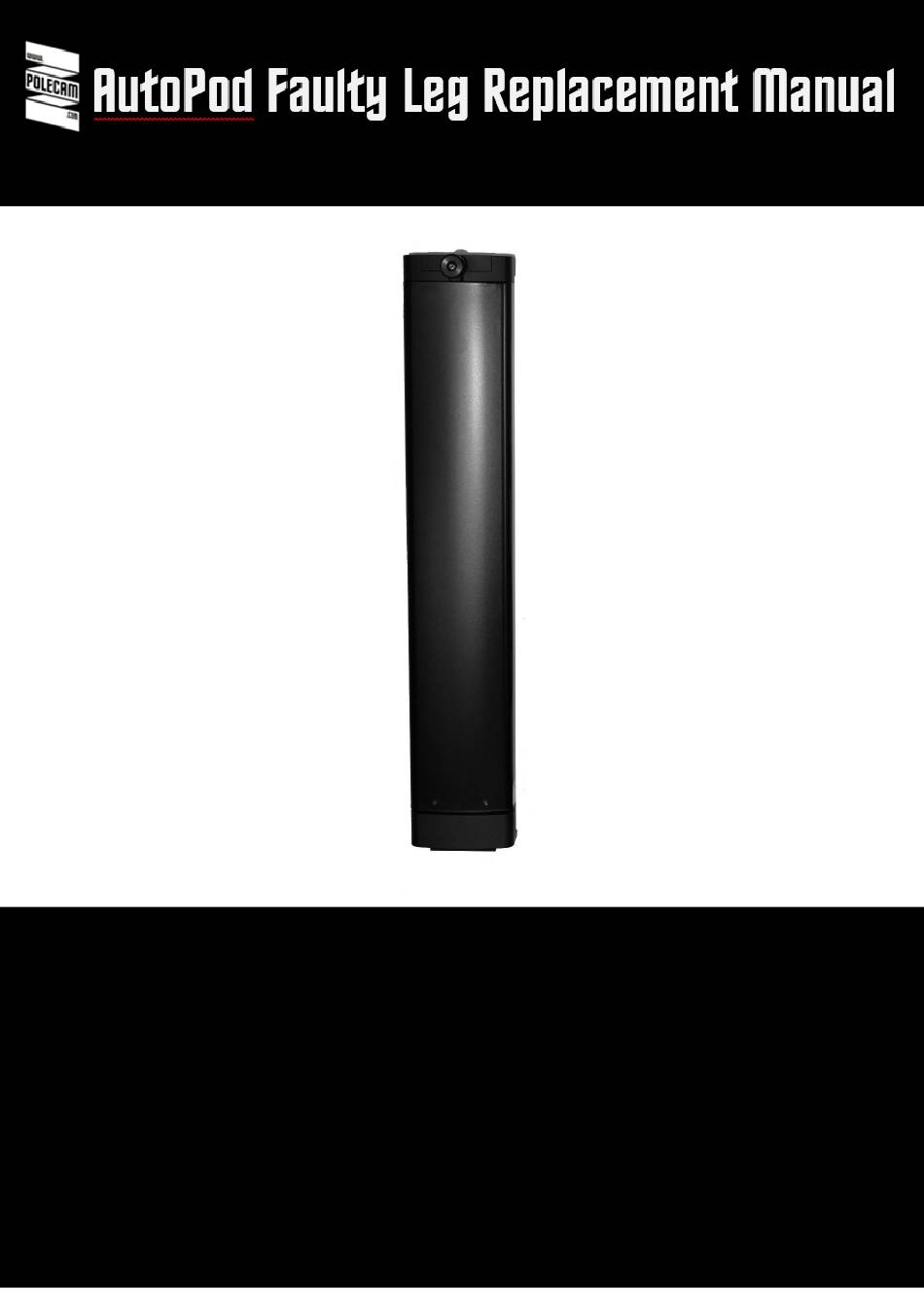

- Page 1 .AutoPod/PanaPod Leg Replacement Kit Metal Work Removal Instructions V.1.2 January 2025...
- Page 2 .AutoPod/PanaPod Leg Replacement Kit This guide describes how to change the metal work on your faulty AutoPod+/Panapod system and connect it into your replacement elevation leg. Step 1 Unscrew the M6 bolts connecting the wired plate to the elevation leg (Figure 1).
- Page 3 .AutoPod/PanaPod Leg Replacement Kit Step 3 Attach the 6 Pin Molex socket on to the replacement elevation leg and push the wire cables into the plate as shown in figure 3. Figure 3 Step 4 Screw the M6 bolts connecting the wired plate to the replacement elevation leg (Figure 4).
- Page 4 .AutoPod/PanaPod Leg Replacement Kit Step 5 Unscrew the M6 bolts connecting the clamp plate to the faulty elevation leg and remove the plate (Figure 5). Figure 5 Step 6 Screw the M6 bolts connecting the clamp plate to the replacement elevation leg (Figure 6).
- Page 5 .AutoPod/PanaPod Leg Replacement Kit Step 7 You system is not set to go (Figure 7) Figure 7...
-
Page 6: Declaration Of Conformity
4 Kenneth Way, Bedford, MK45 3PD Hereby declares that the product know as PanaPod which is manufactured, assembled and marketed by Polecam Limited in the United Kingdom, conforms with the essential requirements of the: EU Machinery Directive (2006/42/EU) EMC Directive (2014/30/EU) - Page 7 .AutoPod/PanaPod Leg Replacement Kit Polecam Limited 4 Kenneth Way, Bedford, MK45 3PD www.polecam.com info@polecam.com +44 (0) 1234 855 222 Polecam Limited 4 Kenneth Way, Bedford, MK45 3PD www.polecam.com info@polecam.com +44 (0) 1234 855 222...
