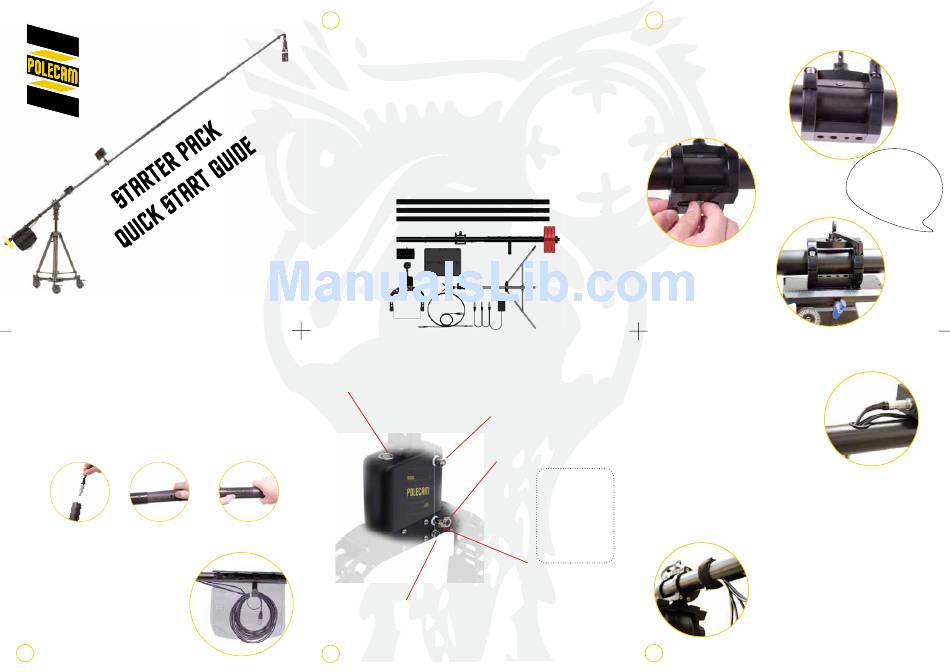

Polecam Starter Pack Quick Start Manuals

Tube Assembly
It is easiest to insert cables into the tubes vertically, feed the cable
through each section in turn, please see instructions on cable
feeding.
The tubes snap together and are held by a small locking pin as
shown in image 2.
Place the rigging stand under the fi nal carbon section to support
your rig during assembly.
1 2
Getting Hooked Up
Under Section 1 (the back end) there is a hook provided for
cable management. This makes it easy to
store excess cable ready for any length
adjustment.
Reverse looping (opposite coiling/
over and under coiling) the cable
coils ensures the cables move freely
without tangles.
4
2
1. 1 x Foam insert - This is designed to fi t directly into a Pelican 1770 Transit Case
2. 3 x Polecam Stiff Carbon Fibre Tubes
3. 1 x Polecam Starter Pack back-end
4. 1 x Wide Pan/Tilt Head or 1 x Narrow Pan/Tilt Head
5. 1 x Joystick, 1 x Accessory wallet
6. 1 x Starter Pack AC power unit with 3 x 4-pin XLR's
7. 1 x PC046 Starter Pack wiring loom, 1 x Iris Cable (only used with certain cameras)
8. 1 x Rigging stand
9. 1 x Polecam Saddle-bag set
10. Polecam Starter Pack Quick Start Guide
12 Pin lemo
(Starter Pack Loom)
3
Iris
(4 pin Hirose)
Iris (+) Pin 1
Iris (-) Pin 4
(Toshiba cameras and others
5
using Polecam Iris blocks)
Box & Contents
Weights not
included
Connection Page
Composite video out
Composite video in
The head has a 12
way slip ring for the
connections as shown
in the diagram.
Tests have shown
that HD-SDI passes
through the slip ring for
monitoring purposes.
Power
(4 pin binder)
1 amp at 12v MAX
Pin 1 - 0v
Pin 4 + 12v
Electronic fuse
resettable
(can power Canon 5D/7D
with optional adaptor)
3
Getting Started
Section One / The Back End
First thing is to fi t your tripod wedge
plate to the Polecam back end.
Always use 2 screws!
Once the wedge plate is fi tted,
you can fi t the Polecam section to
your tripod.
Cable Feeding
Starting with the main Joystick to head cable
(12 pin lemo to 12 pin lemo plus 4 pin XLR)
thread the 12 pin lemo from underneath
section one all the way to the end of
the carbon tubes. (this will connect to
the head when that is mounted, allow
10cm/4inches approx of cable for this)
Next insert the other end of the 12 pin lemo
cable (this one has the 4 pin XLR as well) into
the slot underneath section one and feed it to the slot on top of
section one. (this will connect to the Joystick)
Now run the monitor cables (optional cables, not included)
starting with the cable you are using for monitoring the camera
(this will depend on your camera setup) and run this all the way
to the end of the carbon tubes.
Thread the other end of this cable from
underneath section one to the slot on
top of section one, this should reach to
the end of the fi rst carbon pole. Run
the monitor power cable in a similar
fashion.
6
Tip!
Minimum recommended
tripod specifi cation
100mm/4" bowl -
15kg/33lbs capacity
