Summary of Contents for Northern Diver Odyssey

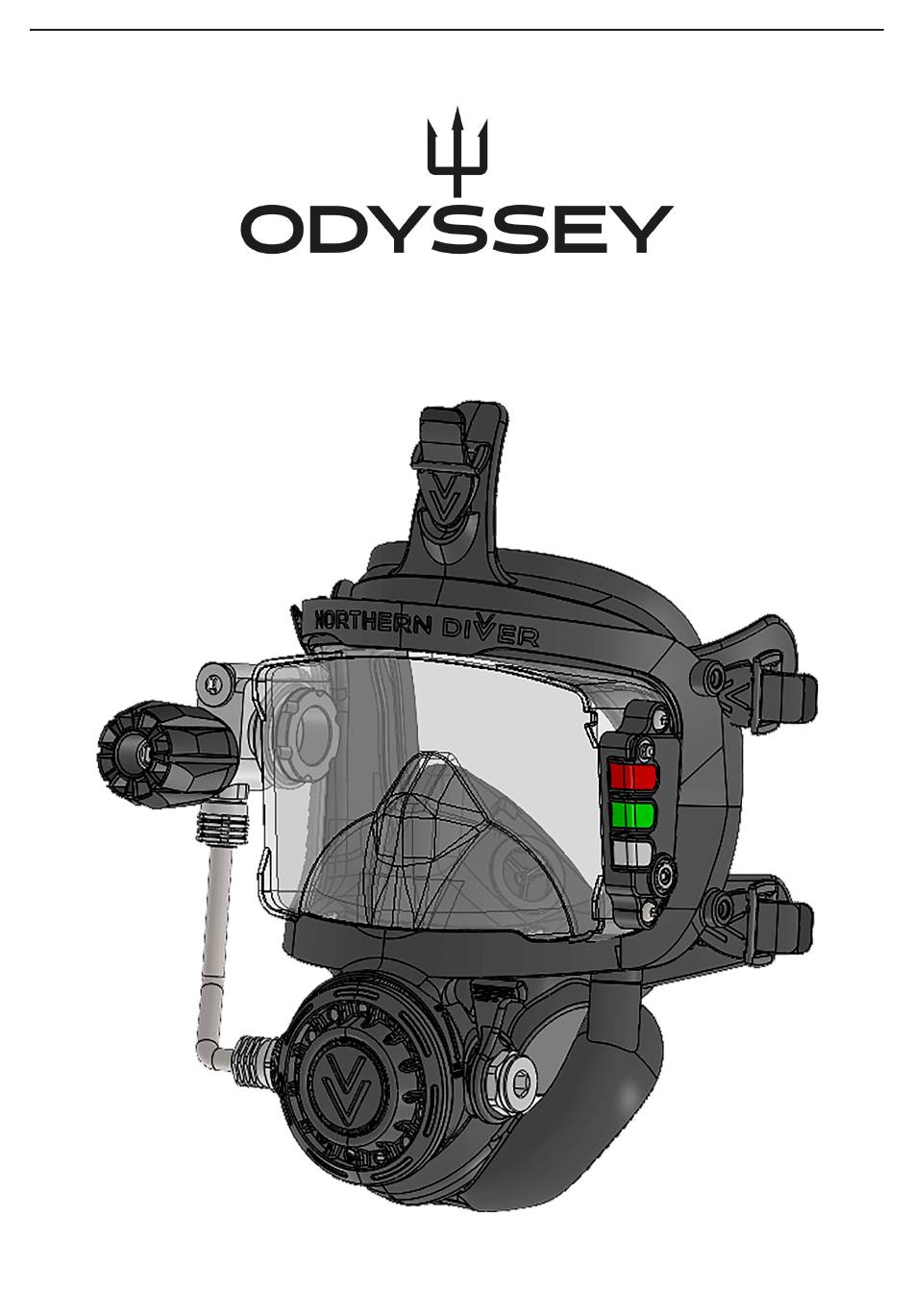

- Page 1 Page | FULL FACE DIVING MASK USER INSTRUCTIONS Odyssey Full Face Mask Manual Issue 1.2 30/01/2025...
- Page 2 Page | Company Introduction Northern Diver International Ltd are a diving equipment manufacturer, certified ISO 9001:2015, ISO 14001:2015. We specialise in all areas of scuba diving including recreational, commercial, rescue and military sectors. For over four decades, our reputation as one of the world’s leading drysuit and scuba diving equipment manufacturers has gone from strength to strength and with a genuine love of diving at our heart, it allows us to produce innovative products for all divers.
-
Page 3: Safety Notice
CE mark tested in accordance to the requirements of the EN 250:2014 standard. The Odyssey FFM Must ONLY be used with diving ancillaries that have been tested and certified to EN250:2014 and that bear a C.E. mark such: Pillar valves, 1st stage regulators, Hoses, Contents gauges, etc The air supply must meet the requirements of EN12021:2014 standard for breathing air. -
Page 4: Table Of Contents
Doffing the Mask ................... 31 Post Dive Cleaning and Disinfection Procedure ........32 Transport and Storage Procedure ............34 Cleaning Service and Maintenance Schedule ..........35 Troubleshooting ..................36 Spare / Servicing Parts ................37 Warranty ....................40 Odyssey Full Face Mask Manual Issue 1.2 30/01/2025... -
Page 5: Product Description
Page | Product Description The Odyssey full face diving mask (FFM) is designed to cover the divers face in a single volume including the eyes, nose and mouth. This offers a higher degree of protection from the surrounding environment in terms of enhanced thermal insulation during cold temperature diving and some limited protection when used in potentially polluted waters. -
Page 6: Certification
The Odyssey FFM has been tested and certified according to the European harmonised standard EN 250:2014. The Odyssey FFM is approved for diving up to a maximum depth of 50 meters (164 feet) in accordance with EN 250:2014. The Odyssey FFM is approved for temperatures below 10°C and for cold water temperatures 4 ±... -
Page 7: C.e. Mark, Serial Number, Manufacturers Address Location
The C.E. Mark Location is on the underside of the mask lower frame on the gas inlet side. The Mask Serial number shows date of manufacture YYYY:MM:UNIT NUMBER. Below image shows location of the manufacturers address, this location is the same for both with and without side block Odyssey Full Face Mask Manual Issue 1.2 30/01/2025... - Page 8 Page | The below image shows the location of the C.E. and serial number on the side block The side block serial number shows date of manufacture YY:MM:UNIT NUMBER. Odyssey Full Face Mask Manual Issue 1.2 30/01/2025...
-
Page 9: General Warnings And Precautions
Warning Note • Carefully read this instruction manual before use and keep it for future reference, if there are any difficulties understanding the instructions please contact Northern Diver info@ndiver.com • This instruction manual does not replace a diving course, use of SCUBA equipment by uncertified or untrained persons is dangerous and prohibited. -
Page 10: Package Contents
Page | 10 Package Contents ND0003936 - Odyssey Full Face Mask Including 1 Hose Assembly ITEM DESCRIPTION Odyssey Full Face Mask 750mm Length Black Hose Assembly 20mm Spanner and Comms Tool Instruction Manual Soft Shell Carry Case Display Box Odyssey Full Face Mask Manual Issue 1.2... -
Page 11: Hose Assemblies
Page | 11 ND0003937 - Odyssey Full Face Mask with Side Block Including 2 Hose Assemblies ITEM DESCRIPTION Odyssey Full Face Mask with Side block 750mm Length Black Hose Assembly 900mm Length Yellow Hose Assembly 20mm Spanner and Comms Tool... -
Page 12: Mask Features
Page | 12 Mask Features Odyssey Full Face Mask Manual Issue 1.2 30/01/2025... - Page 13 Page | 13 Mask Features Odyssey Full Face Mask Manual Issue 1.2 30/01/2025...
-
Page 14: Side Block Function
Note: Close the Switch Block valve when not in USE! Caution: Do not over tighten or use tools to tighten the handwheel this may damage the valve seal or seat of the side block. Odyssey Full Face Mask Manual Issue 1.2 30/01/2025... -
Page 15: Open Function
• WARNING: The bailout cylinder only allows the diver a limited air supply and must immediately return to the surface or to a place of safety. Odyssey Full Face Mask Manual Issue 1.2 30/01/2025... -
Page 16: Before Use And Pre-Dive Safety Check
Check: that the non-return valves located in the nasal cavity are sealing properly and that they sit flat around the sealing surface. 4. Check: the head harness buckles for damage. Check: that the head harness straps are free from stress cracks and ageing. Odyssey Full Face Mask Manual Issue 1.2 30/01/2025... - Page 17 Check: that the equalising nose block is fitted correctly and securely. Check: that the threaded connections of the side block / or second stage breathing valve are free from damage. Odyssey Full Face Mask Manual Issue 1.2 30/01/2025...
- Page 18 WARNING - Do not tighten the hose nuts with a single spanner as this can damage the mask frame or the second stage’s internal components, resulting in potential failure of the regulator. Odyssey Full Face Mask Manual Issue 1.2 30/01/2025...
- Page 19 Check: the pressure on the pressure gauge to make sure that there is the required amount of air for the planned dive. Northern Diver recommend that the cylinders should be full before every dive. Press the purge button on the mask regulator for 1-2 seconds to check for airflow.
- Page 20 Check the complete dive set for leaks by closing both cylinder valves and waiting for one minute then checking that the gauge needle has not fallen by more than 10 bar (145 psi). If the test is successful open both cylinder valves to fully open. Odyssey Full Face Mask Manual Issue 1.2 30/01/2025...
-
Page 21: Donning The Mask
NOTE - There are equalising block extension pads available to allow the equalising block to reach closer to the nose if required. Odyssey Full Face Mask Manual Issue 1.2 30/01/2025... - Page 22 First tighten the two lower harness straps evenly. This can be done by pulling straight back. Next tighten the two upper harness straps evenly. This can be done by pulling straight back. Odyssey Full Face Mask Manual Issue 1.2 30/01/2025...
- Page 23 Check that you can equalise by either pushing the regulator up at 45° or by pushing the top of the lens. 10. Located on the left side of the regulator is a Dive/Pre-Dive lever, ensure the lever is in the correct position before initiating the dive. Odyssey Full Face Mask Manual Issue 1.2 30/01/2025...
- Page 24 Page | 24 PRE-DIVE POSITION DIVE POSITION Odyssey Full Face Mask Manual Issue 1.2 30/01/2025...
- Page 25 Odyssey Full Face Mask Manual Issue 1.2...
-
Page 26: Training And Emergency Procedures
Page | 26 Training and Emergency Procedures It is highly important that before using the Odyssey FFM you are fully trained and comfortable with the following emergency procedures and examples of how to handle the mask in emergency situations. Seek additional instruction from Northern Diver if necessary. - Page 27 Push the mask frame upwards to lift and remove the mask off your head completely. Obtain your alternate air source, clear the regulator, and breathe normally. You can now don a spare mask or terminate the dive without one. Odyssey Full Face Mask Manual Issue 1.2 30/01/2025...
- Page 28 Place your thumbs on the lower buckle tabs and push outwards on these tabs to loosen the harness straps. Push the mask frame upwards to lift and remove the mask off your head completely. Odyssey Full Face Mask Manual Issue 1.2 30/01/2025...
- Page 29 To clear the mask, hold the mask against your face and ensure your face is in an upright (vertical) position. Press the purge button until the water has cleared from the mask sufficiently to start breathing. Odyssey Full Face Mask Manual Issue 1.2 30/01/2025...
- Page 30 Free Flow of Air In case of free flow of air into or from the full-face mask, the following procedure is recommended: Continue breathing. End the dive and start ascending to the surface. Odyssey Full Face Mask Manual Issue 1.2 30/01/2025...
-
Page 31: Doffing The Mask
Place your thumbs on the lower buckle tabs and push outwards on these tabs to loosen the harness straps. Push the mask frame upwards to lift and remove the mask off your head completely Odyssey Full Face Mask Manual Issue 1.2 30/01/2025... -
Page 32: Post Dive Cleaning And Disinfection Procedure
Page | 32 Post Dive Cleaning and Disinfection Procedure After the dive/dives are completed, the Odyssey mask must be cleaned and stored in accordance with the instructions contained within this manual. Before doing so, carry out the following: Carefully rinse the mask with fresh clear water. If required, you may use a soft brush and a neutral cleaning agent. - Page 33 NOTE – Do this for both cylinders if using the Odyssey mask with side block configuration. Vent the remaining gas from the hoses by pressing the purge button on the mask. NOTE – Open the side block valve before venting if using the Odyssey mask with side block configuration.
-
Page 34: Transport And Storage Procedure
Disconnect the hose from the mask second stage / hoses from the side block. Check the mask is thoroughly dry before storing in the case provided. CAUTION – Odyssey masks used by more than one person must be cleaned and disinfected after each use. -
Page 35: Cleaning Service And Maintenance Schedule
CAUTION - It is recommended that the regulator is serviced at least once a year, or after 100 dives. This should only be performed by a certified Odyssey mask service technician, or authorised dive centre using original spare parts. -
Page 36: Troubleshooting
The mask is not sitting correctly on your face. The orinasal non return valves are contaminated, damaged or missing. NOTE - If there is failure to resolve these problems, please contact Northern Diver International Engineering & Servicing Department for advice and information on servicing. -
Page 37: Spare / Servicing Parts
Page | 37 Spare / Servicing Parts Odyssey Full Face Mask Manual Issue 1.2 30/01/2025... - Page 38 Page | 38 Spare / Servicing Parts Odyssey Full Face Mask Manual Issue 1.2 30/01/2025...
- Page 39 Page | 39 Spare / Servicing Parts Odyssey Full Face Mask Manual Issue 1.2 30/01/2025...
-
Page 40: Warranty
Page | 40 Warranty The Odyssey FFM is covered against all manufacturing defects for a warranty period of 12 months from the date of purchase proven by a sales document, excluding: • Non-conforming use or use other than that foreseen or illustrated in this manual. -
Page 41: Service History
Page | 41 Service History Odyssey Full Face Mask Manual Issue 1.2 30/01/2025... - Page 42 Page | 42 Service History Odyssey Full Face Mask Manual Issue 1.2 30/01/2025...
- Page 43 Page | 43 Service History Odyssey Full Face Mask Manual Issue 1.2 30/01/2025...
- Page 44 Page | 44 Odyssey Full Face Mask Manual Issue 1.2 30/01/2025...
