HanRongDa HRD-905 User Manual

Emergency radio
Hide thumbs

Advertisement

Quick Links

Download this manual
HanRongDa HRD-905 emergency - emergency
radio
1. Introduction to HanRongDa HRD-905 emergency radio
Thank you for your purchase of our versatile emergency radio, which offers wide
coverage of radio bands thanks to advanced software technology.
This software allows for digital tuning of a variety of radio bands, including FM,
AM, shortwave (SW), and specifically the weather band (WX), which is essential
for accessing weather-related broadcasts and alerts, primarily used in the United
States.
User manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the HRD-905 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HanRongDa HRD-905

Summary of Contents for HanRongDa HRD-905

  • Page 1 HanRongDa HRD-905 emergency - emergency radio User manual 1. Introduction to HanRongDa HRD-905 emergency radio Thank you for your purchase of our versatile emergency radio, which offers wide coverage of radio bands thanks to advanced software technology. This software allows for digital tuning of a variety of radio bands, including FM,...
  • Page 2 With a high-capacity lithium-ion battery, the radio is designed to offer different charging methods – solar, manual hand generator, or DC 5V external power – so you always have access to reliable information and light when you need it most. The radio also supports emergency power supply with 3 x 1.5V AAA batteries.

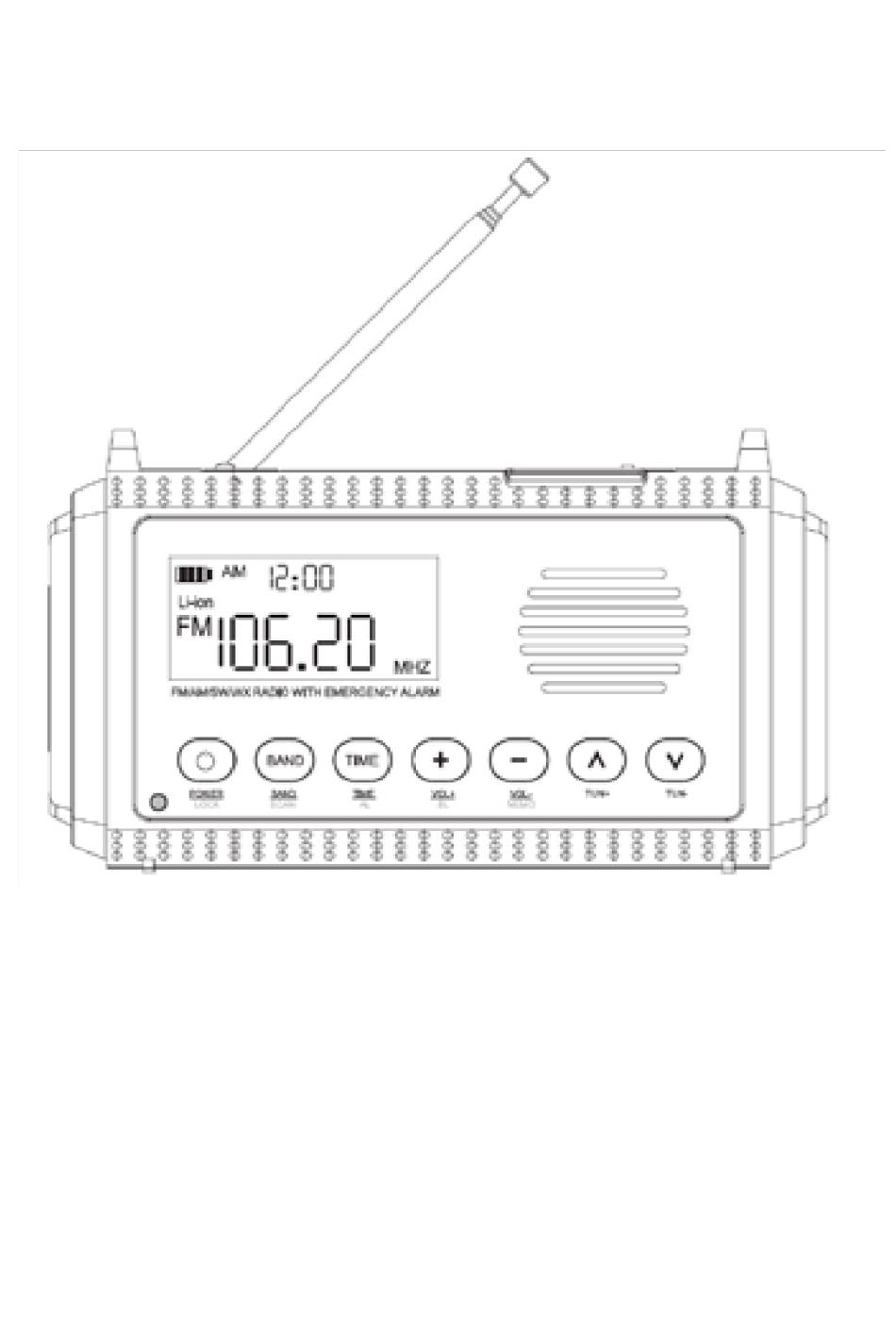

  • Page 3 3. Overview of the radio's buttons Page 3...

  • Page 4: Functions Of The Buttons

    4: Functions of the buttons POWER/LOCK POWER: To turn on, hold down "POWER". To turn off, lightly press "POWER". The default setting at startup is WX mode, where the "WX" symbol flashes as a sign of active alarm. (Refer to section 6.1). LOCK: When powered on, lock the radio by holding down "LOCK"...
  • Page 5 two seconds, which initiates a search for stations using the minimum frequency steps available for each band. TUNA- Lightly press "TUN-" when the radio is on, and the frequency will decrease in small increments. Hold down the button for two seconds to automatically search for downward channels.
  • Page 6 3.5mm headphone jack: Connect headphones for private listening without disturbing the surroundings. 5: Symbols on the LCD screen 6. Operating the radio 6.1. Turning the Radio On/Off To activate the radio, which is provided with a built-in lithium battery, press and hold the "POWER/LOCK"...
  • Page 7 Seven WX frequencies are available: 162.400 MHz, 162.425 MHz, 162.450 MHz, 162.475 MHz, 162.500 MHz, 162.525 MHz, and 162.550 MHz. 6.4.1. Receiving WX When the Radio Is Off To activate WX reception with the radio off, lightly press "POWER/ LOCK". The "WX"...
  • Page 8 and position for optimal reception. Note: In case of channel interference due to heavy interference, shortening the antenna may be beneficial. 6.5.1.2. AM Reception: For AM, a built-in magnetic antenna is used, sensitive for orientation when receiving. Optimal position is found by rotating the radio. 6.5.2.
  • Page 9 8. Use of light Turn on the radio by holding down the [POWER] button to access the lighting functions: LCD backlight, reading light, and flashlight. 8.1. LCD Backlight Enable or disable the LCD backlight by holding down "VOL/ BL" for two seconds while the radio is on.
  • Page 10 9.2. DC5V External Power Connect a DC5V power source to the TYPE-C USB charging connector to charge. The red LED will light up and the charging symbol will flash while charging. When the battery is fully charged, the symbol will stop flashing. 9.3.

  • Page 11: Technical Data

    13. Setting the time To set the time, hold down "TIME/AL" until the time indicator flashes. Adjust timer with "TUN+" or "TUN-", and minutes by pressing "TIME/AL" again first. Confirm the time with a light press of "TIME/AL" or wait five seconds for automatic confirmation.
  • Page 12 Precautions for Safe and Reliable Use Read and understand the safety instructions: Read and understand all safety instructions and the instruction manual before using the product. Page 12...
  • Page 13 LCD and battery indication: If "AAA" is displayed on the LCD, it means that the lithium battery's voltage is low and should be charged. Flashing red power light or battery symbol also indicates low battery. Lithium Battery Activation: For extended periods of inactivity and low battery, use the hand generator for a short charge of 5-10 minutes to activate the battery.
