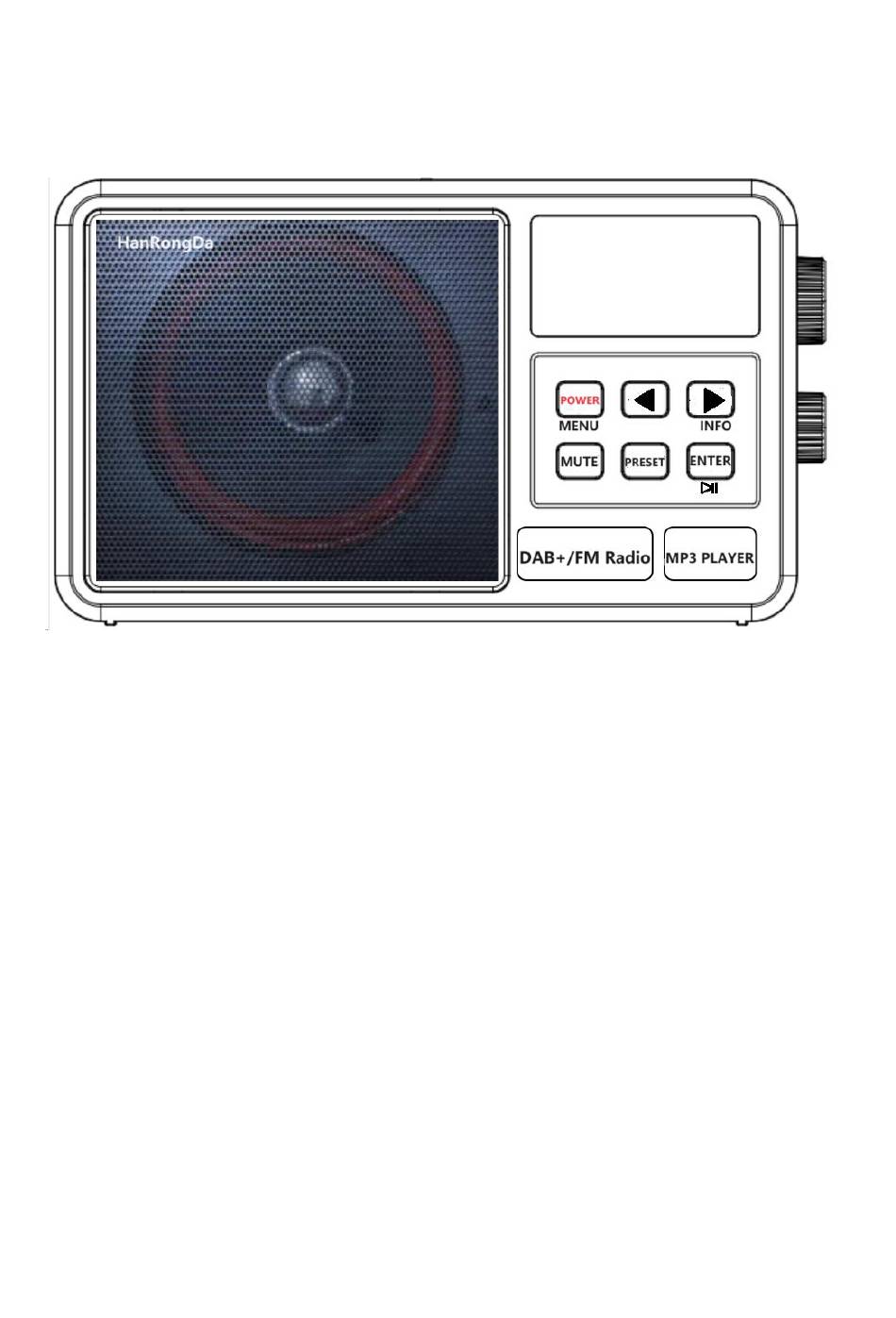

1: Exterior view of the product:
Thank you for your purchasing the product, please read this operation guide carefully before use and keep it
properly.
2: A brief description of product functions:
This is a portable portable multi-functional radio which not only receives traditional FM signal reception but also
receives network radio signals/DAB signal of European countries. It can be used as a Bluetooth speaker and
supports USB/TF card playback. Hope that it will bring more joy to users who like radio!
Rich display contents of the dot matrix screen can give users clear instructions.
TF card supports MP3, WMA, WAV, APE, FLAC, TF format playback of up to 256G.
In radio mode: Automatic search and storage of radio station and large rotation pulley modulation are available.
In radio FM mode, up to 30 radio stations can be stored.
12/24 hour format can be selected.
Sleep shutdown time for a variety of periods can be set.
Power-on at the fixed time can be set.
Large-caliber 4-inch speaker of 4Ω and 8W is adopted and headphones can be used, which can meetdemands of
the majority of users.
With backlight display and backlight brightness setting, users can use it in the darkness.
A variety of intimate human functions, such as one-click mute, are available.
Power supply mode: AC or DC6v (AA1.5*4 dry batteries).
User Manual
Model: CS-806
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HanRongDa CS-806
Summary of Contents for HanRongDa CS-806
- Page 1 User Manual Model: CS-806 1: Exterior view of the product: Thank you for your purchasing the product, please read this operation guide carefully before use and keep it properly. 2: A brief description of product functions: This is a portable portable multi-functional radio which not only receives traditional FM signal reception but also receives network radio signals/DAB signal of European countries.
-
Page 2: Functions Of Buttons
3: Radio switch: First boot (not connected to network): The radio has been connected to AC or loaded with four AA batteries. The screen displays the characters “Boot up and connect to network” (indicating booting and connecting it to the network). - Page 3 Select the station, select Menu Task and set time..Volume knob (rotate it clockwise to turn up the sound while rotate it counterclockwise to turn down the sound) 5: Optional functions of [MENU] Internet FM reception Bluetooth USB play TF card play Alarm clock Sleeping Configuration...
- Page 4 In the password input area, light press [ ]&[ ] to move it up or down or left or right to selection WLAN password numbers or letters or symbols. You can also clockwise rotate [ ] to select downward. If [ ] is rotated anticlockwise, you should select upward.
- Page 5 Country/Location 1/8 Local stations 2/8 Popular stations 3/8 History 4/8 Search 5/8 By language 6/8 By genre My favorite 8/8 Example: Steps to play “Beijing News Radio” radio station are shown as follows: Select Country/Location and press [ENTER] to ENTER the region list. Find Asia and then press [ENTER] to enter the country list. Find China and then press [ENTER] to enter the city list.
- Page 6 When the radio station fails to play, “play fail” will be displayed. When the network is disconnected, “Connect to 5.1.4 network” will be displayed: 5.1.5. Station storage/station fetch: Station fetch: light press “[PRESET] to enter the list of station storage. If the radio station is not stored, “empty” will be displayed.
- Page 7 5.2.1: DAB station storage On DAB playback screen, long press [PRESET] to enter the storage station list. R to select the otate [ Press [ENTER] and “PRESET **SAVED” storage station number. will be displayed: 5.3: Enter FM for signal playback: Selection “...
- Page 8 It will searched from the lowest frequency point of the current receiving band to the highest frequency point and will stop scanning and search automatically. * Tips: FM can store up to 30 stations. The number of the radio station stored depends on the strength of local signals.
-
Page 9: Alarm Clock Setting
Select and press [Enter] to enter TF card play mode. Insert TF card according to the TF card patter “ ”. LCD display: playback time/song number/total number of songs Short press ]&[ ] to select the previous song and the next song. Long press [ ]&[ ] for fast forward and fast backward operations. - Page 10 Press [ ] and the minute flashes. Rotate [ ] to select minutes of the alarm clock. Press [ENTER] for confirmation. Set sound of the alarm clock. Mode : DAB Rotate [ ] to select DAB/FM/BUZZ. Press [ENTER] for confirmation. When FM is selected as the alarm clock, you can choose last listened (the radio station last listened /list of the radio stations stored(or one of the radio Preset last listened...
- Page 11 15minutes Rotate [ ] for selection. Press [ENTER] for confirmation. 30minutes Rotate [ ] for selection. Press [ENTER] for confirmation. 45minutes Rotate [ ] for selection. Press [ENTER] for confirmation. 60minutes Rotate [ ] for selection. Press [ENTER] for confirmation. 90minutes Rotate [ ] for selection.
- Page 12 Network Date &Time Language DAB setup(DAB) FM setup Resume play options Dimmer Buffer time:[*seconds] Information Software update Reset to default 5.9.1: The Internet can be connected and time can be updated according to the above operations in 4.1.1. 5.9.2: Date & Time: Rotate [ ] to show the following contents and press [ENTER] to set them.
- Page 13 Eight languages can be selected. After they are selected, you can press [ENTER] for confirmation. English Deutsch Ltaliano Francais Nederlands Espanol Polski Cestina 5.9.4: DAB setup Note: The full menu can only be displayed in DAB playback mode and the general menu only displays DAB full scan and DAB station list.
- Page 14 FM station list Radio stations stored Scan setting All station / strong station only 5.9.6. Resume play options Rotate [ ] to show the following setting contents. Press [ENTER] for confirmation. Resume once ready Resume once ready Stay at home Turn on the machine to go back to the main screen 5.9.7: Dimmer backlight setting Rotate [...
- Page 15 Rotate [ ] to show the following setting contents. Press [ENTER] for confirmation. Flat Flat Classical Classical Rock Rock Jazz Jazz Dance Dance Manual adjustment Light press [ENTER] for selection Bass Manual Treble After it is selected, you can rotate [ ] to select numbers±...
- Page 16 5.9.10.Network information and system information Rotate [ ] to show the following setting contents. Press [ENTER] for confirmation. 5.9.11: Software update Press [ ]&[ ] for selection. Press [ENTER] for confirmation. 5.9.12: Reset to default Press [ ]&[ ] for selection. Press [ENTER] for confirmation.
-
Page 17: Antenna Usage
6: Mute (Mute setting): In power-on playback mode, light press [MUTE] to turn mute on and the screen will display “ ”. Light press [MUTE] again to remove mute setting and resume normal playback. 7: Pause/Play: In music playing mode [SD, Bluetooth, USB], light press [ ] to pause the broadcasting and the screen will display “PAUSE”. - Page 18 Before using the product, you should ensure that you can follow basic safety tips as follows so as to ensure safe and reliable use of the products: ♦ Read and understand all safety guidelines and usage information. ♦ When “ ” of the dry battery appears or the outer frame of “ ” flashes, it means insufficient electric quantity.
- Page 19 FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications.
