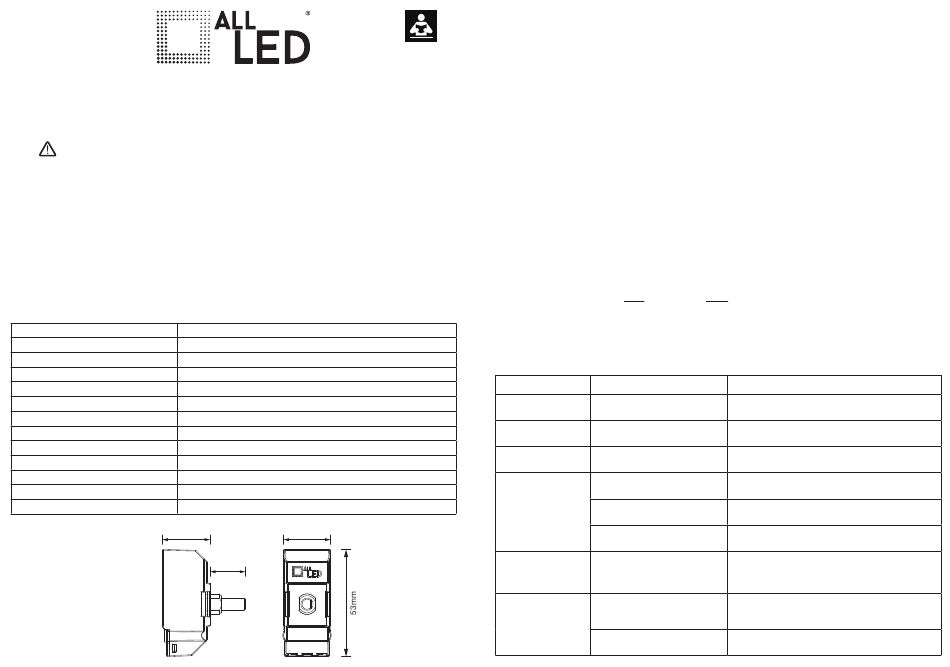

INSTALLATION GUIDE
ADIM/150W/GRID
ENSURE POWER SUPPLY IS OFF WHEN HANDLING ANY ELECTRICAL EQUIPMENT.
• This product may need to be installed by a qualified electrical installer.
• Please read this guide in its entirety to fully understand the products before attempting any install.
• All electrical work should be completed in accordance with the latest IET regulations, and/or any other
relevant rules, regulations or laws of the country in which it is being installed.
• The item must be installed in isolation from any insulating material and be adequately ventilated to prevent
premature failure.
• Ensure power supply is isolated prior to installation, maintenance or performing any other form of electrical
work.
• In the event of incorrect or improper function with specific regard to any of ALL LED's products contact ALL
LED for further advice.
Technical Specifications
Product Code
Operating Voltage
Operating Current (A Max)
Max Output Power
Power Factor
No Load Power (W)
Class
Body Material
Ingress Protection
Ambient Operating Temperature (°C)
Input Frequency (Hz)
Guarantee
Dimming Mode (Trailing or Leading) Fully Programmable - Leading Edge And Trailing Edge (2 Modes)
Dimensions
23mm
ADIM/150W/GRID
220-240V AC
0.7A
5W - 150W LED
≥0.83
0W
II
Polycarbonate
IP20
-10°C~40°C
50Hz
2 Years
23mm
17mm
!
Instructions
Setting & Resetting Minimum Brightness
PLEASE READ
BEFORE USE!
To adjust the minimum brightness, reset brightness first.
1. Reset Minimum Brightness
i) Press dimmer knob once to turn the curcuit on
ii) Rotate the dimmer knob anti-clockwise (left) until the knob stops (this is minimum dimmer output)
iii) Press the knob 8x (4x Power Cycles) OFF>ON>OFF>ON>OFF>ON>OFF>ON
If successful, the lights will pulse
2. Set Minimum Brightness
i) With the dimmer "on" rotate the dimmer knob to the new desired minimum brightness to program.
Clockwise (right) to increase brightness, anti-clockwise (left) to decrease brightness)
ii) Press the knob 4x (2x Power Cycles) OFF>ON>OFF>ON
If successful, the lights will pulse
iii) To confirm successful programming of the updated minimum brightness setting, rotate dimmer knob clockwise (right) until
it stops (maximum brightness) and then rotate dimmer knob anti-clockwise (left) until it stops (new minimum brightness).
Repeat steps if unsuccessful or see troubleshooting guide
Changing The Drive Mode
The default setting on this unit is Trailing Edge.
To change the drive mode, please follow instructions below.
1. Press dimmer knob to turn the dimmer on
2. Rotate dimmer knob to the maximum brightness (turn clockwise (right) until it stops).
3. Push the dimmer knob 10 times (5 x power cycles) to save your setting.
>OFF>ON>OFF>ON>OFF>ON>OFF>ON>OFF>ON.
If successful, the lights will pulse Once (Trailing Edge) or Twice (Leading Edge).
Troubleshooting Guide
PROBLEM
No change of setting
Minimum brightness
setting not changing
Lights flicker at high/low
brightness levels
No light output
from LEDs
Reduced maximum
brightness
LEDs flashing
CAUSE(S)
Speed of button pressing Button presses must be done in a slow methodical rhythm
Reset minimum brightness must be done before setting a
Order of settings
new minimum brightness
Wrong driving mode Program dimmer to alternative driving mode
A qualified installer/electrician should check the primary
No power to drive components
voltage side of the product to check the input voltage.
Ensure continuous and correct connection between
Loose connection on circuit
terminals
Over voltage may have caused These cases are rare and the item may need replacement
damage to the sensitive components and/or investigation as to the cause of failure
Reduce load
Overloaded circuit - reduce amount of lamps
- replace lamps with lower wattage
Please ensure there is a regulated AC voltage supply within
Incorrect voltage range being used the parameters of the luminaire. Failure to do so will void
the warranty
Ensure continuous and correct connection between the
Loose connection on circuit
terminals
SOLUTION(S)
