Summary of Contents for Total TBC1601

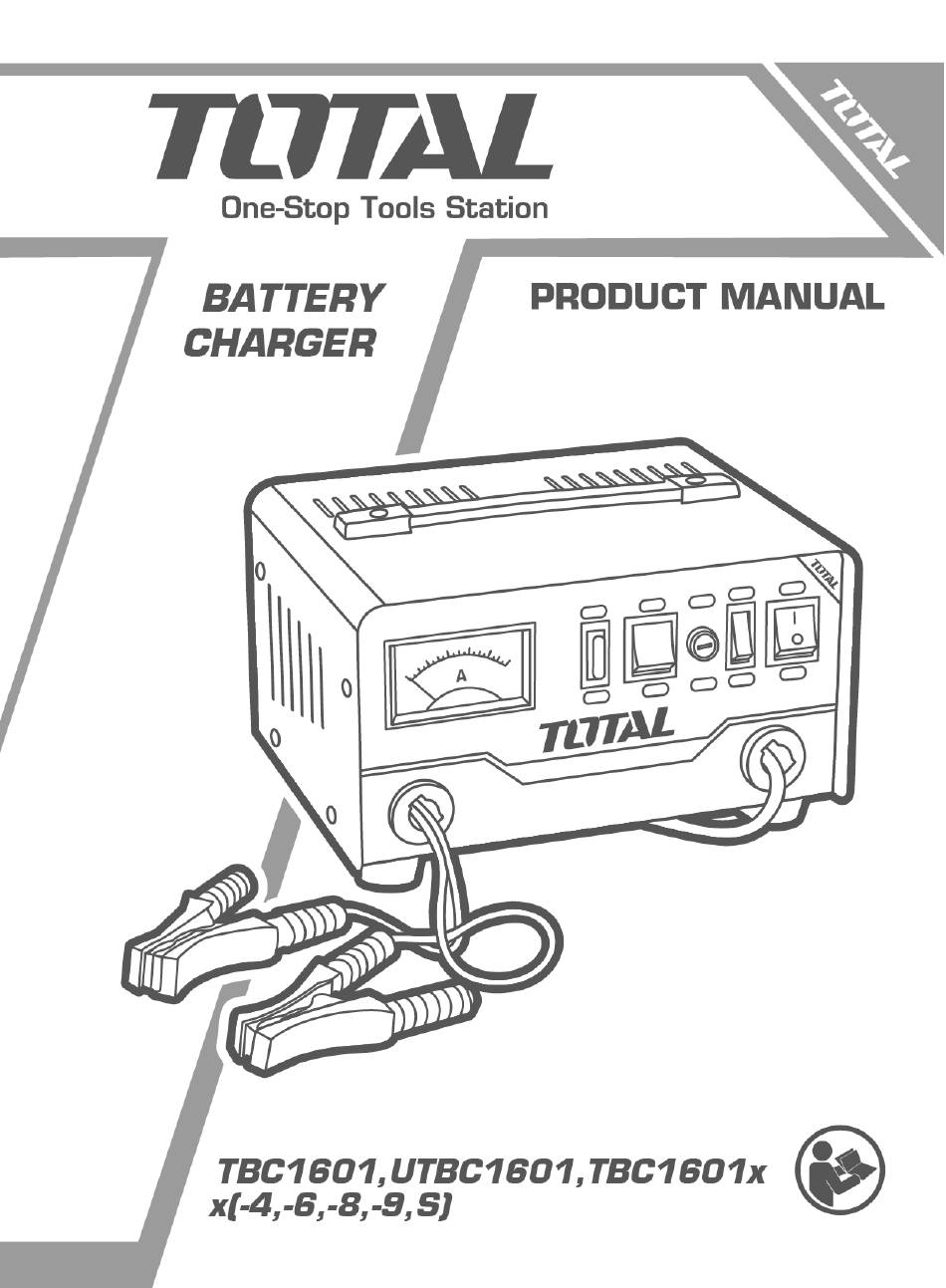

- Page 1 | English...
- Page 2 | English Original Instructions THE SYMBOLS IN INSTRUCTION MANUAL EN60335-2-29 The standard of battery charger in Europe. Please read the instruction manual carefully before using. Transformer in single phase—Rectifier. Using indoors only. IP20 Level of protection. The anode and cathode of battery.
-
Page 3: Additional Safety Warning
| English ADDITIONAL SAFETY WARNING The purpose of these safety regulations is to assure the safety operations of the charger machine and prevent the damage of the property and the physical injury. The safety issues have been fully considered during the design and manufacturing of the charger. -
Page 4: Intended Use
| English INTENDED USE A car battery charger is a device used to recharge the battery of a car when its voltage has dropped below a certain level. The main purpose of a car battery charger is to restore the battery to its full charge so that the car can start and run properly. -
Page 5: Technical Specifications
Current meter Input fuse Output negative pole (Black) Output current switch Output positive pole (Red) Power switch Output fuse Power cord Technical specifications TBC1601, TBC1601-4 Model No. TBC1601-6, TBC1601-8 UTBC1601 TBC1601-9, TBC1601S Rated input voltage (V) 220-240~ 110-120~ Voltage frequency (Hz) - Page 6 | English Rated output fuse OPERATION PICTURE...
- Page 7 | English OPERATION PICTURE OPERATION PICTURE...
-
Page 8: Operation
| English OPERATION To charge the battery, proceed as follows Dia A undo or remove the battery plug Dia B check the level of acid in your battery. Top up with distilled water if necessary ⚠ Caution: Battery acid is corrosive, wash off acid splashes immediately and thoroughly with plenty of water and consult a doctor if necessary. - Page 9 | English Dia J screw or press the battery plug back in place. Overload protection. Dia K the flat fuse provides protection from polarity reversal and short-circuiting. A defective fuse has to be replaced by one of identical. ⚠ Danger: At automatic circuit-breaker interrupts the charging in the event of thermal overloading.
- Page 10 | English...
