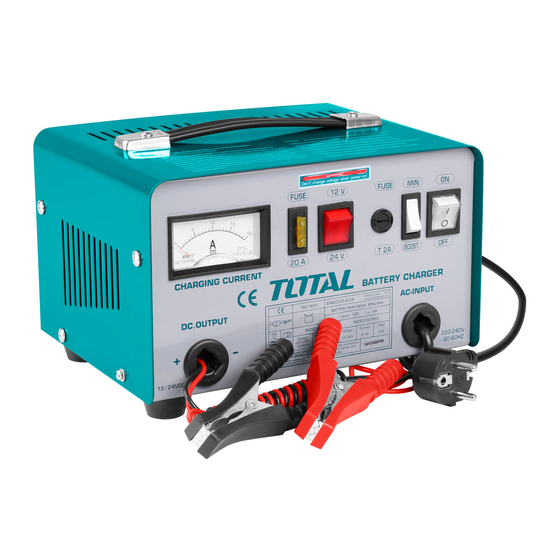

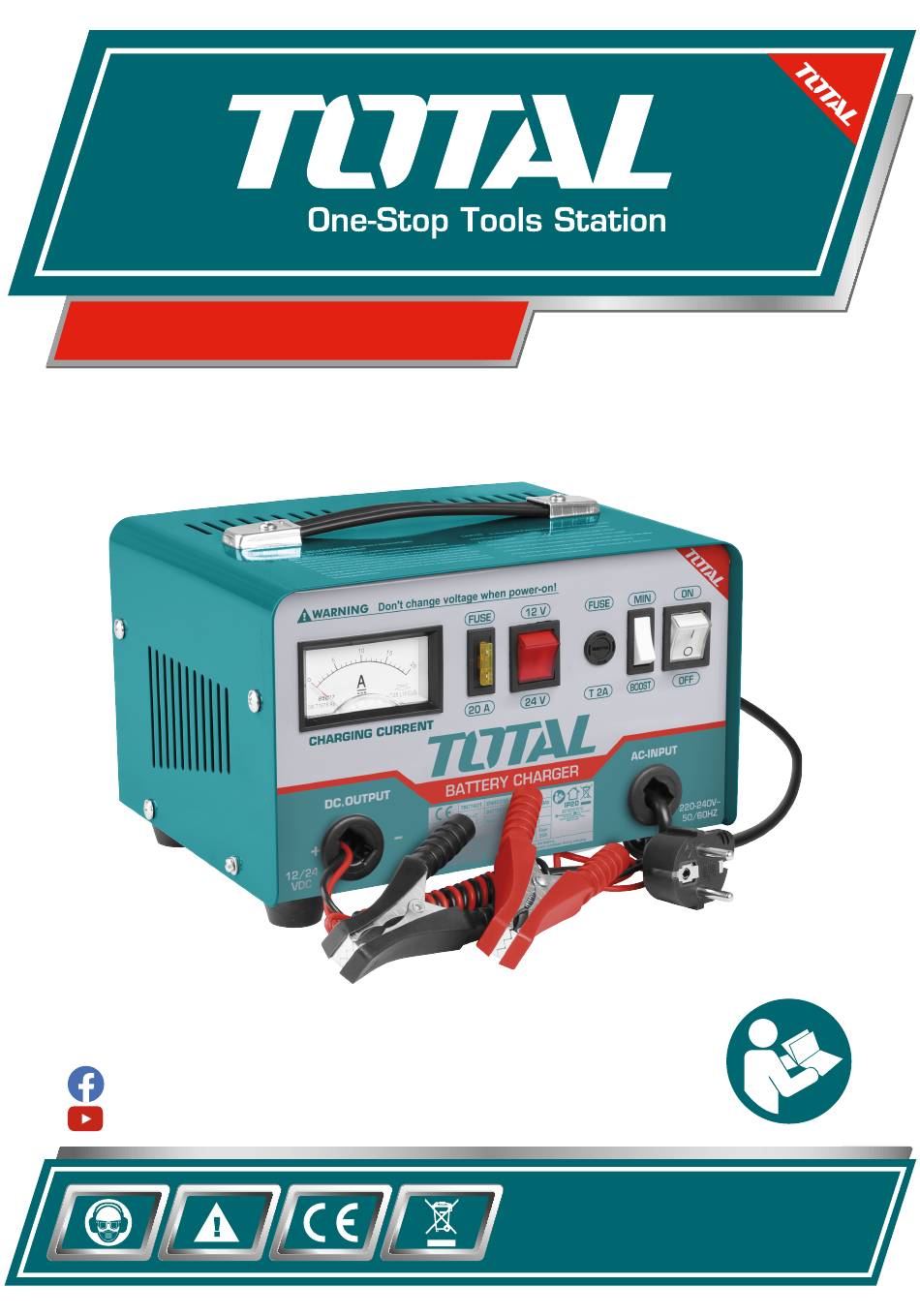

- Page 1 BATTERY CHARGER TBC1601,TBC1601-4,TBC1601-6,TBC1601-8, TBC1601-9,UTBC1601,TBC1601S totaltoolsworld TOTAL TOOLS WORLD 12/24V...
- Page 2 Compo nents TBC1601,TBC1601-4,TBC1601-6,TBC1601-8, TBC1601-9,UTBC1601,TBC1601S 1 Output negative pole 2 Output positive pole 3 Power cord Output current switch 5 Current meter 6 Power switch 7 Handle 8 Output fuse Voltage switch 10 Input fuse...
-
Page 3: Safety Notice
SAFETY NOTICE Please spare a few minutes to study the direction before using the product for the first time. It is imperative to wear goggles and gloves when charging the battery! There is a high risk of injury from the corrosive acid. - Page 4 Keep the ventilation slots free of dirt. Do not charge several batteries simultaneously. Do not short-circuit the charging clamps. The power supply cable and the charging leads have to be in perfect condition. Keep children away from the battery and the charger. Danger! An acute risk of explosion exists if there is a pungent smell of gas.
- Page 5 If the fuse along side the charging current indicator becomes defective, replace it with a fuse of identical amperage. Keep the terminals clean and protect them from corrosion. This charger is not suitable for maintenance-free batteries. Always disconnect the appliance from the power maintenance work.
- Page 6 The cathode of battery charger not connected to the chassis of vehicle has to be connected first. The anode is to be corrected to that of the battery. And then connected to the main supply.After charging, disconnect the battery charger from supply mains. Then remove the chassis and andote connection in this order.
-
Page 7: Specification
Specification TBC1601 TBC1601-6 TBC1601S EN60335-2-29 TBC1601-4 TBC1601-8 (SAA Plug) (IRAM plug) TBC1601-9 BATTERY MAX180Ah MIN28Ah BOOST RATED INPUT RATED OUTPUT Voltage Current Fuse Voltage Current Fuse 220-240V~ IP20C 0.9A 12/24V 9/4A 50/60Hz Disconnect the supply before making or breaking the connections to the battery. -
Page 8: Function And Usage
FUNCTION AND USAGE To charge the battery, proceed as follows:... - Page 9 Figure1: undo or remove the battery plug. Figure2: check the level of acid in your battery. Top up with distilled water if necessary. Caution! Battery acid is corrosive, wash off acid splashes immediately and thoroughly with plenty of water and consult a doctor if necessary.
- Page 10 Operating as follows: Acid density values(kg/at 20 ) 1.28 battery charged 1.21 battery half charged 1.16 battery empty Figure 7: pull the power plug out or the socket-outlet. Figure 8: first disconnect the black charging lead from the negative pole of the battery. Figure 9: then disconnect the Ed charging lead from the positive pole of the battery.
-
Page 11: Battery And Charger
SERVICING AND CLEANING THE BATTERY AND CHARGER Make sure that your battery is always fitted securely in the vehicle. Check that the battery is properly connected to the vehicle’s electric system. Keep the battery clean and dry. Apply a little acid-free and acid-resistant grease (Vaseline) to the terminals. -
Page 12: Electric Diagram
Electric diagram 220-240V AC 110-120V-AC TBC1601 TBC1601-4 TBC1601-6 TBC1601-8 TBC1601-9 TBC1601S UTBC1601... -
Page 13: Exploded View
TBC1601,TBC1601-4,TBC1601-6,TBC1601-8, TBC1601-9,UTBC1601,TBC1601S Exploded view po we r-o n! vo lta ge wh en FUS E Do n't ch an ge 12 V WA RN IN G FUS E BOO ST T 2A 24 V 20 A CU RR EN T... -
Page 15: Spare Part List
TBC1601,TBC1601-4,TBC1601-6,TBC1601-8, TBC1601-9,UTBC1601,TBC1601S Spare part list NutM4 NutM4 Ø Transformer Fuse 1A φ Power ON/OFF Switch KCD-25, 250VAC,25A, 50/60Hz × Plug and Cable FP-003,16A,250VAC H05VV-F 3G 0.75mm2 Ø × Bolster of the charger rubber Nut M5 Framework of the charger CB-13S, Q215, δ... -
Page 16: Battery Charger
Pre ven t t the sup ive gas es. Dis con nec : Exp los WA RN ING BATTERY CHARGER www.totalbusiness.com TOTAL TOOLS CO., PTE. LTD. No.45 Songbei Road，Suzhou Industrial Park，China. MADE IN CHINA T0620.V07 12/24V...
