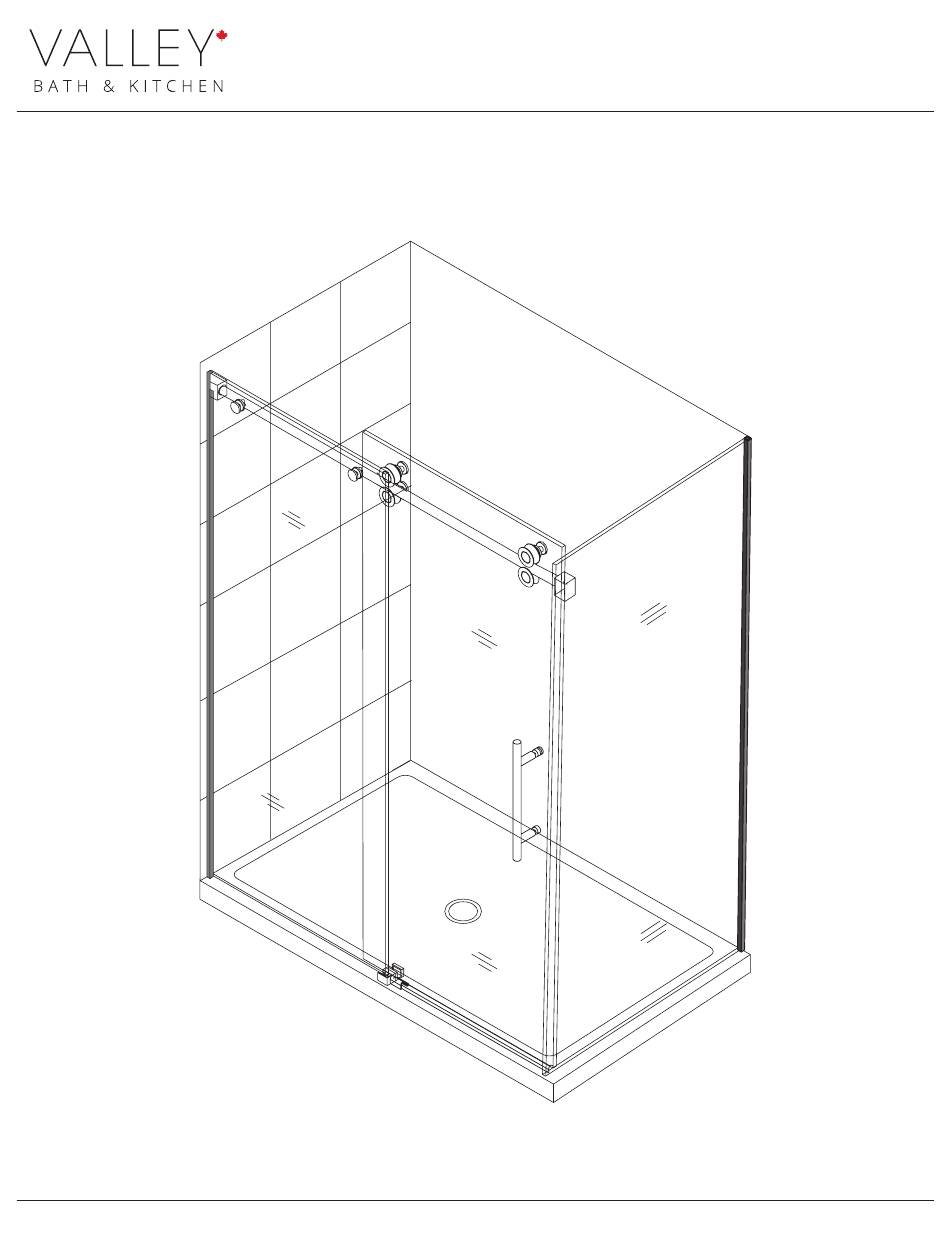

- Page 1 SD10A & SP10A SHOWER DOOR & RETURN PANEL INSTALLATION GUIDE FOR DOUBLE THRESHOLD SHOWER BASES website: www.valleybathandkitchen.com • E-mail: customerservice@valleyacrylic.ca • customer service call Toll Free: 1.877.398.8827 • Fax: +1.604.820.0124...
-
Page 2: Before You Begin
SHOWER DOOR & RETURN PANEL INSTALLATION GUIDE FOR DOUBLE THRESHOLD SHOWER BASES Thank you for choosing Valley Acrylic Products. This installation manual provides general information on the installation of our products. BEFORE YOU BEGIN • Prior to installation, examine all boxes and packages for shipping damage and compare the piece count with your packing slip. - Page 3 SD10A & SP10A SHOWER DOOR & RETURN PANEL INSTALLATION GUIDE FOR DOUBLE THRESHOLD SHOWER BASES IMPORTANT INFORMATION PANEL DOOR Guide Rail Brackets must be firmly attached to the wall. Installation into a stud is strongly recommended. All of the guide rail bracket set screws must be tightened.
- Page 4 SD10A & SP10A SHOWER DOOR & RETURN PANEL INSTALLATION GUIDE FOR DOUBLE THRESHOLD SHOWER BASES RETURN PANEL INSTALLATION Return Panel Installation Position the wall profile on threshold, set back 1/4” back from the front of the threshold base. Ensure that the wall profile is level. Mark the screw location &...
- Page 5 SD10A & SP10A SHOWER DOOR & RETURN PANEL INSTALLATION GUIDE FOR DOUBLE THRESHOLD SHOWER BASES Insert the screws to the wall profile With the screwdriver, Drill the screw holes on install the wall profiles into each location over a stud...
- Page 6 SD10A & SP10A SHOWER DOOR & RETURN PANEL INSTALLATION GUIDE FOR DOUBLE THRESHOLD SHOWER BASES IMPORTANT INFORMATION Place the sliding door panel inside the shower base to simplify following installation procedures. Ensure placing the panel onto a cushioned surface, such as a towel or card board, to prevent damage either to the panel or the shower base.
- Page 7 SD10A & SP10A SHOWER DOOR & RETURN PANEL INSTALLATION GUIDE FOR DOUBLE THRESHOLD SHOWER BASES SHOWER DOOR INSTALLATION Fixed Panel Installation Position the wall profile on threshold, set back 1/4” back from the front of the threshold base. Ensure that the wall profile is level. Mark the screw location &...
- Page 8 SD10A & SP10A SHOWER DOOR & RETURN PANEL INSTALLATION GUIDE FOR DOUBLE THRESHOLD SHOWER BASES Insert the screws to the wall profile With the screwdriver, Drill the screw holes on install the wall profiles into each location over a stud...
- Page 9 SD10A & SP10A SHOWER DOOR & RETURN PANEL INSTALLATION GUIDE FOR DOUBLE THRESHOLD SHOWER BASES 5.1 Place the fixed panel on the wall profile. 5.2 Make sure the fixed panel is level Guide Block Installation Assembly the Guide Block on the shower base threshold and adjust into a precise position.
- Page 10 SD10A & SP10A SHOWER DOOR & RETURN PANEL INSTALLATION GUIDE FOR DOUBLE THRESHOLD SHOWER BASES Measure the distance from the center of the outside hole of the fixed panel to the return panel as shown. Running Rail The Running Rail needs to be cut a 1/2” shorter of the overall opening (X) .
- Page 11 SD10A & SP10A SHOWER DOOR & RETURN PANEL INSTALLATION GUIDE FOR DOUBLE THRESHOLD SHOWER BASES Position the stoppers wall brackets on the running rail as illustrated. Secure them temporarily in place Running Rail Stopper Wall Brackets Fasten the running rail to the fixed panel with the glass holders.
- Page 12 SD10A & SP10A SHOWER DOOR & RETURN PANEL INSTALLATION GUIDE FOR DOUBLE THRESHOLD SHOWER BASES 10.1 - Level the running rail 10.2 Mark the stopper braket position as shown 10.1 10.2 Remove the stoppers brackets from the running rail Running Rail...
- Page 13 SD10A & SP10A SHOWER DOOR & RETURN PANEL INSTALLATION GUIDE FOR DOUBLE THRESHOLD SHOWER BASES 12.1 - Place the stopper brackets into position. 12.2 - Mark the stopper brackets screw location. 12.1 12.2 13.1 Remove stopper bracket. 13.2 Drill the screw holes.
- Page 14 SD10A & SP10A SHOWER DOOR & RETURN PANEL INSTALLATION GUIDE FOR DOUBLE THRESHOLD SHOWER BASES Install the running rail into place. Fasten the running rail to the fixed panel with the glass holders. 14.1 14.3 14.4 14.2 14.5 website: www.valleybathandkitchen.com • E-mail: customerservice@valleyacrylic.ca • customer service call Toll Free: 1.877.398.8827 • Fax: +1.604.820.0124...
- Page 15 SD10A & SP10A SHOWER DOOR & RETURN PANEL INSTALLATION GUIDE FOR DOUBLE THRESHOLD SHOWER BASES Twin Roller Installation Assemble the top Twin Rollers to the sliding panel as shown. Install sliding door ensuring that the top rollers are installed first. Adjust the top rollers accordingly.
- Page 16 SD10A & SP10A SHOWER DOOR & RETURN PANEL INSTALLATION GUIDE FOR DOUBLE THRESHOLD SHOWER BASES Handle Installation. Make sure to have a gasket in either side of the glass door, to make sure the metal is not touching the tempered glass.
- Page 17 SD10A & SP10A SHOWER DOOR & RETURN PANEL INSTALLATION GUIDE FOR DOUBLE THRESHOLD SHOWER BASES Apply silicone as shown. Silicone application along the length of the threshold is also suggested. In both cases, it is done from the outside of the shower area.
- Page 18 FOR DOUBLE THRESHOLD SHOWER BASES Congratulations! You are now a part of the Valley Bath & Kitchen family, and an owner of a great product! website: www.valleybathandkitchen.com • E-mail: customerservice@valleyacrylic.ca • customer service call Toll Free: 1.877.398.8827 • Fax: +1.604.820.0124...
