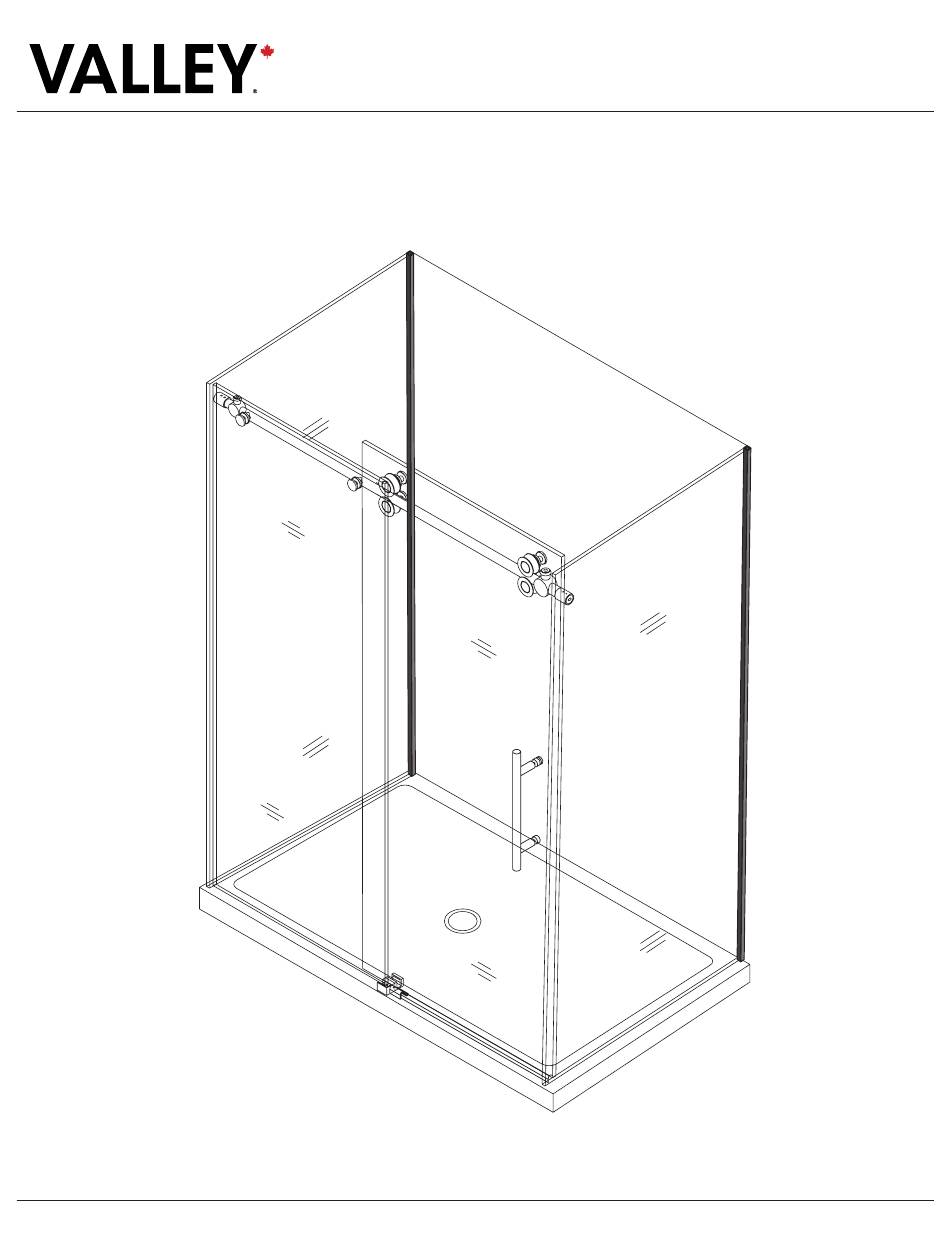

- Page 1 SD10A SHOWER DOOR INSTALLATION GUIDE FOR TRIPLE THRESHOLD SHOWER BASES website: www.valleyacrylic.com • E-mail: purchasing@valleyacrylic.com • customer service call Toll Free: 1.877.398.8827 • Fax: +1.604.820.0124...
-
Page 2: Before You Begin
SHOWER DOOR INSTALLATION GUIDE FOR TRIPLE THRESHOLD SHOWER BASES Thank you for choosing Valley Acrylic Products. This installation manual provides general information on the installation of our products. BEFORE YOU BEGIN • Prior to installation, examine all boxes and packages for shipping damage and compare the piece count with your packing slip. - Page 3 SD10A SHOWER DOOR INSTALLATION GUIDE FOR TRIPLE THRESHOLD SHOWER BASES IMPORTANT INFORMATION FIXED DOOR SIDE FIXED SIDE FIXED PANEL PANEL PANEL PANEL Guide Rail Brackets must be firmly attached to the wall. Installation into a stud is strongly recommended. All of the guide rail bracket set screws must be tightened.
- Page 4 SD10A SHOWER DOOR INSTALLATION GUIDE FOR TRIPLE THRESHOLD SHOWER BASES SIDE PANELS INSTALLATION Position the wall profile on threshold, set back 1/4” back from the front of the threshold base. Ensure that the wall profile is level. Mark the screw location & Mark the screw position.
- Page 5 SD10A SHOWER DOOR INSTALLATION GUIDE FOR TRIPLE THRESHOLD SHOWER BASES Insert the screws to the wall profile With the screwdriver, Drill the screw holes on install the wall profiles into each location over a stud place Thoughly clean the edges Place the side fixed panel of the side panel.
- Page 6 SD10A SHOWER DOOR INSTALLATION GUIDE FOR TRIPLE THRESHOLD SHOWER BASES SIDE PANELS INSTALLATION Position the wall profile on threshold, set back 1/4” back from the front of the threshold base. Ensure that the wall profile is level. Mark the screw location & Mark the screw position.
- Page 7 SD10A SHOWER DOOR INSTALLATION GUIDE FOR TRIPLE THRESHOLD SHOWER BASES Insert the screws to the wall profile With the screwdriver, Drill the screw holes on install the wall profiles into each location over a stud place Thoughly clean the edges Place the side fixed panel of the side panel.
- Page 8 SD10A SHOWER DOOR INSTALLATION GUIDE FOR TRIPLE THRESHOLD SHOWER BASES IMPORTANT INFORMATION Place the sliding door panel inside the shower base to simplify following installation procedures. Ensure placing the panel onto a cushioned surface, such as a towel or card board, to prevent damage either to the panel or the shower base.
- Page 9 SD10A SHOWER DOOR INSTALLATION GUIDE FOR TRIPLE THRESHOLD SHOWER BASES SHOWER DOOR INSTALLATION Install the running rail Fasten the running rail to the fixed panel with the glass holders. website: www.valleyacrylic.com • E-mail: purchasing@valleyacrylic.com • customer service call Toll Free: 1.877.398.8827 • Fax: +1.604.820.0124...
- Page 10 SD10A SHOWER DOOR INSTALLATION GUIDE FOR TRIPLE THRESHOLD SHOWER BASES Guide Block Installation Assembly the Guide Block on the shower base threshold and adjust into a precise position. Apply silicone to the bottom of the Guide Block. DO NOT SCREW THE BOTTOM STRIP TO THE THRESHOLD...
- Page 11 SD10A SHOWER DOOR INSTALLATION GUIDE FOR TRIPLE THRESHOLD SHOWER BASES Install sliding door ensuring that the top rollers are installed first. Adjust the top rollers accordingly. Fix the top rollers over the running rail. Ensure that sliding door is placed within the Guide Block.
- Page 12 SD10A SHOWER DOOR INSTALLATION GUIDE FOR TRIPLE THRESHOLD SHOWER BASES Handle Installation. Make sure to have a gasket in either side of the glass door, to make sure the metal is not touching the tempered glass. Clear Anti-splash threshold installation.
- Page 13 SD10A SHOWER DOOR INSTALLATION GUIDE FOR TRIPLE THRESHOLD SHOWER BASES U-Gasket installation. Thoughly clean the edges of the fixed panel and the sliding door panel. Install the Anti-water strip (F-shape) onto the vertical edge of the fixed panel and the U-Gaskets on the sliding door panel.
- Page 14 INSTALLATION GUIDE FOR TRIPLE THRESHOLD SHOWER BASES Congratulations! You are now a part of the Valley Acrylic family, and an owner of a great product! website: www.valleyacrylic.com • E-mail: purchasing@valleyacrylic.com • customer service call Toll Free: 1.877.398.8827 • Fax: +1.604.820.0124...
