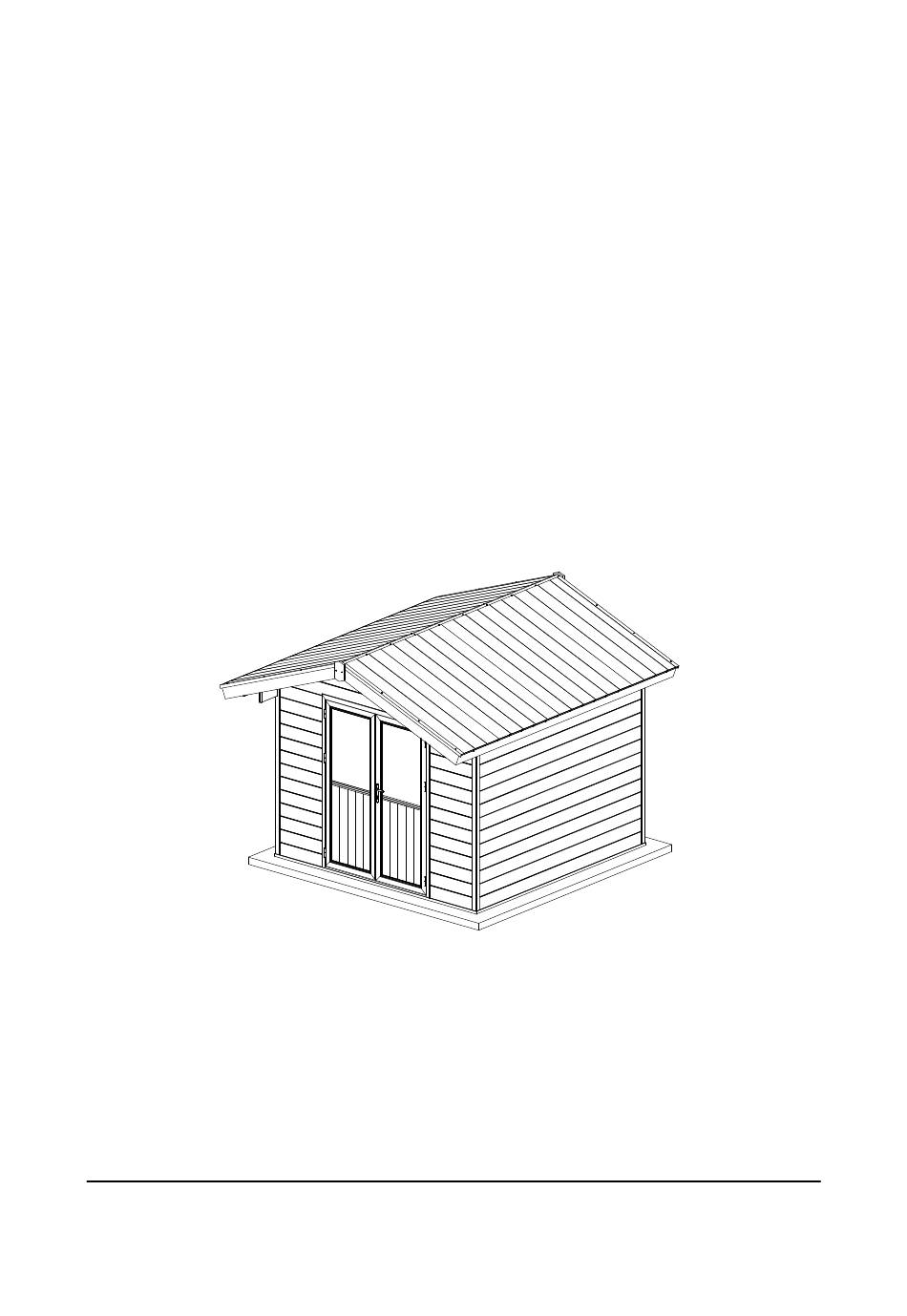

- Page 1 WPC GARDEN SHEDS INSTALLATION MANUAL FOR XF-H014 Version: A1...
- Page 2 APPEARANCE & SIZE : 3360,9 3652,4 3602,4 21° 582,5 222,5 Threshold height 62mm 2805 2805...
- Page 3 Installation Requirement ： When do the assembling of a garden shed, a hard and flat ground without slope is needed. Please also make sure that the installation site has a good ventilation and drainage condition. When dealing with any type of construction project, it is necessary to wear appropriate safety equipment to avoid any risk of injuries.
- Page 4 List of components WP11 WP12 WP19 WP20 WP21 L=2720mm L=645mm L=1080mm L=500mm L=3023mm WP22 WP23 TP10 TP11 TP12 L=3300mm L=1785mm L=1785mm L=1785mm MF11 MF12 MF13 MF14 L=2805mm TF20 TF21 TF22 TF23 TF24 L=3520mm L=3520mm L=3520mm TF25 TF26 TF27 TF27 L=3600mm DP-1 L=1965mm L=1502mm...
- Page 5 List of components CL-1 CL-3 CL-4 CL-8 CL-9 x4 + spare 2 x24 + spare 4 CL-10 CL-11 CL-12 SC-1 SC-2 SC-3 SC-4 SC-5 x435 + spare 165 x32 + spare 8 x8 + spare 4 x16 + spare 4 x8 + spare 2 M4.2x20mm M4.2x30mm...
- Page 6 STEP 1 : BF5 x4 CL-1 x4 SC-1 x16 CL-1 LEFT BACK CL-1 CL-1 BF-5 CL-1 RIGHT FRONT Dimension: 2805 CL-1 SC-1 2805...
- Page 7 STEP 2 : Expansion screws SC-5 x8 SC-5 x2 LEFT BACK SC-5 x2 SC-5 x2 SC-5 x2 RIGHT FRONT SC-5...
- Page 8 STEP 3 : MF11,12,13,14 SC-1 x16 MF13 21° 21° MF14 MF11 MF12 BACK LEFT RIGHT FRONT...
- Page 9 STEP 4 : MF13 MF11 MF14 MF12 FRONT WP12 x8 WP11 x12 SC-1 x16 L=2720 L=645 SC-1 inside FRONT...
- Page 10 STEP 5 : CL-8 x4 CL-9 x4 SC-7 x8 Door frame Outside...
- Page 11 STEP 6 : WP11 x18 WP12 x12 SC-1 x16 L=2720 L=645 Inside SC-1 Inside SC-1...
- Page 12 STEP 7 : WP11 x8 WP12 x6 WP19 x1 WP20 x2 WP21 x2 L=2720 L=645 L=1080 L=500 L=3023 WD2 x2 WP22 x2 L=3300 SC-1 x8 Inside SC-1 Outside...
- Page 13 STEP 8 : SC-3 x8 SC-4 x16 CL-10 x2 SC-3 x4 CL-11 x2 Ø7 Please pre-drill holes first for SC-4 DETAIL : SC-3 x4 SC-3 x4 SC-4 x4 SC-4 x4 CL-11 x1 CL-10 x1 Outside Outside SC-1 SC-4 SC-4 x4 SC-4 x4 CL-10 x1 CL-11 x1...
- Page 14 STEP 09 : WP23 x2 OT-1 x2 SC-1 x32 30mm...
- Page 15 STEP 10 : SC-1 x24 WP23 WP23...
- Page 16 STEP 11 : TF20 x1 TF20 TF21 TF22 TF21 x1 TF22 x1...
- Page 17 STEP 12 : CL-12 x4 TF23 x2 TF24 x2 TF23 x1 SC-1 x8 TF23 x1 TF24 x1 TF24 x1 STEP 13 : CL-4 x12 SC-1 x36...
- Page 18 STEP 14 : SC-1 x36...
- Page 19 STEP 15 : TF25 x2 CL-3 x8 SC-1 x32...
- Page 20 STEP 16 : CL-4 x12 SC-1 x72 The top roof panel. SC-1 TP10 TP11 TP12 TP11 TP11 TP10 ★ TP12 x1 TP11 x17 TP10 x1 ..
- Page 21 STEP 19 : The installation of top roof panel. TP10 x1 SC-1 x3 BACK 24mm TP10...
- Page 22 STEP 20 : TP11 x17 SC-1 x51 BACK STEP 21 : TF26 x1 TP12 x1 SC-2 x3...
- Page 23 STEP 22: TP12 TP10 x1 TP11 x17 TP12 x1 TP11 TP10 SC-1 x54 TF26 x1 TF27 x2 SC-2 x9...
- Page 24 STEP 23 : TF28 x1 SC-2 x20 8~10mm 8~10mm STEP 21 : OT-2 x2 SC-8 x4...
- Page 25 STEP 24 : DOOR and LOCK DP-1 Indoor ② Outdoor ① ③ ② ④ SU-1 x1...
- Page 26 STEP 25: Connecting Together SC-1 x14 Indoor...
- Page 27 STEP 26 : SU-2 x1 SC-1 x1 SC-8 x4 CLOSE OPEN...
