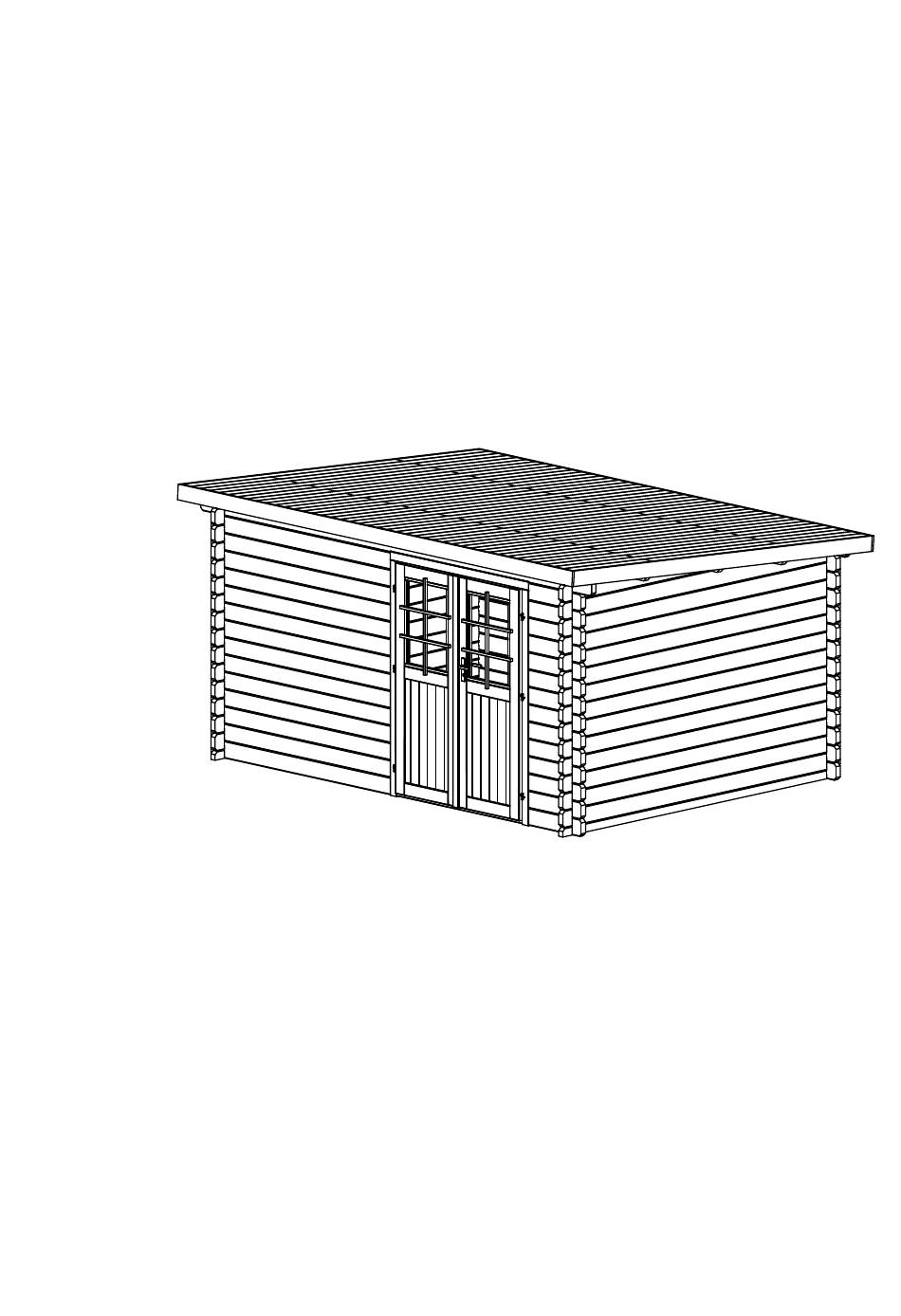

ASSEMBLY INSTRUCTIONS
OSTEN with ISO Glass
4 x 3 m, 44mm
Before beginning the assembly of your garden shed, please read the
instructions carefully and follow them closely. By doing so you will avoid
unnecessary problems and save time. It is recommended to start the
assembly process only once all the components of your shed identified have
been identified, analyzed and classified. This notice also contains
recommendations related to maintenance of your shed.
Advertisement
Related Manuals for Holzwurm Osten ISO
Summary of Contents for Holzwurm Osten ISO
- Page 1 ASSEMBLY INSTRUCTIONS OSTEN with ISO Glass 4 x 3 m, 44mm Before beginning the assembly of your garden shed, please read the instructions carefully and follow them closely. By doing so you will avoid unnecessary problems and save time. It is recommended to start the assembly process only once all the components of your shed identified have been identified, analyzed and classified.
- Page 2 LIST OF ALL PARTS Dimension, mm Pos. Quantity Details 2980 x 14 x 14 1980 x 14+1 3980 x 26 2980 2980 1470 4200 4200 4200 1524 1860 1320 x 47+2 3180 2120 3180 2100 x 1+1 1820 with ISO Glass The number in brackets shows the number of existing spare details.
- Page 3 5 x 90 2 x 40 09 13 GZN AH9213 x 250 x 14 6 x 160 WRO50 3 x 20 4 x 40 x 12 x 84 OSTEN 4 x 3 m, 44mm...
- Page 4 Assembly of walls and the frame of the door 5x90mm 4x40mm Dimension (mm) Quantity Position 2980 x 67.5 x 44 580 x 135 x 44 1980 x 135 x 44 3980 x 135 x 44 14+1 2980 x 135 x 44 1524 x 90 x 82 1860 x 90 x 82 1320 x 40 x 44...
- Page 5 Assembly of top wall-boards and gables 5x90mm 5x90mm 6x160mm 6x160mm Dimension (mm) Quantity Position 2980 x 135 x 44 1470 x 135 x 44 782 x 75 x 44 4200 x 135 x 44 4200 x 195 x 44 OSTEN 4 x 3 m, 44mm...
- Page 6 Assembly of the gable and roof beams Dimension (mm) Quantity Position 4200 x 140 x 44 OSTEN 4 x 3 m, 44mm...
- Page 7 Fixing roof beams 5x90mm OSTEN 4 x 3 m, 44mm...
- Page 8 Installing the roof boards ~1,5-2mm 2x40 mm x235 Dimension (mm) Quantity Position 3180 x 90 x 17 47+2 OSTEN 4 x 3 m, 44mm...
- Page 9 Installing roof boards endings 4x40mm Dimension (mm) Quantity Position 2100 x 30 x 30 OSTEN 4 x 3 m, 44mm...
- Page 10 Installing fascia 4x40mm Dimension (mm) Quantity Position 2120 x 90 x 19 3180 x 90 x 19 OSTEN 4 x 3 m, 44mm...
- Page 11 Installing the door 4x40mm 4x40mm 4x40mm Dimension (mm) Quantity Position 1820 x 665 1 + 1 OSTEN 4 x 3 m, 44mm...
- Page 12 Installing the handles and the doorshuts 3x20mm OSTEN 4 x 3 m, 44mm...
