Vox Ignis Lexicomm OSC Product Manual

Lexicomm OSC
Anti-static handling guidelines
Make sure that electrostatic handling precautions are taken immediately before handling PCBs and other static
sensitive components.
Before handling any static-sensitive items, operators should get rid of any electrostatic charge by touching a sound
safety earth. Always handle PCBs by their sides and avoid touching any components.
1 Installation
1.1 Mounting The Unit

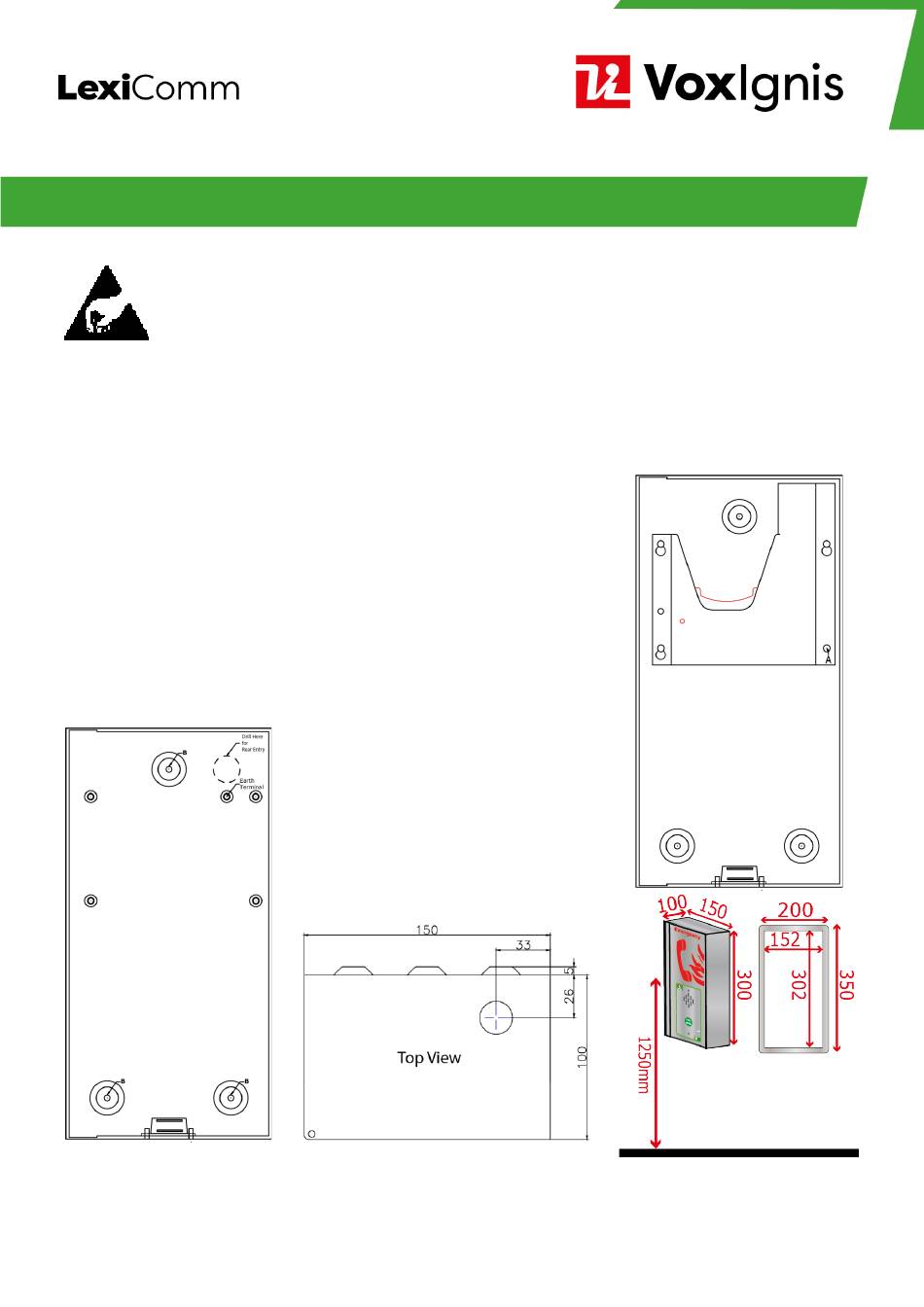

The phone plate can be removed from the back box by removing the screw
marked A in the diagram on the right. The phone plate can then be simply
lifted free.
The phone can be removed by unclipping the grey connector at the hook
switch end of the cable.
The back box can now be prepared for the cable from the EVC System, this is
a 2 core 1.5mm CSA Enhanced fire rated cable.
Knock out the cable knock out and gland the cable to the top right of the box
If you are coming in from the rear, drill where shown in dotted lines below
(this is the only place clear of all operational parts of the outstation) a rubber
grommet or gland should be used to protect the cable.
Document DViLXOSC1001-05
The Back box can now be mounted by using
the holes marked B, the height of the unit
needs to be 1300 to 1400mm from finished
floor level to the centre of the outstation (as
shown below).
If flush mounting using the ViLX-OBZ bezel,
the unit wants fitting to a maximum depth of
95mm for correct opening of the door.
The bezel is attached to the wall using clear
bathroom sealer.
