Summary of Contents for Elsys SyncLink

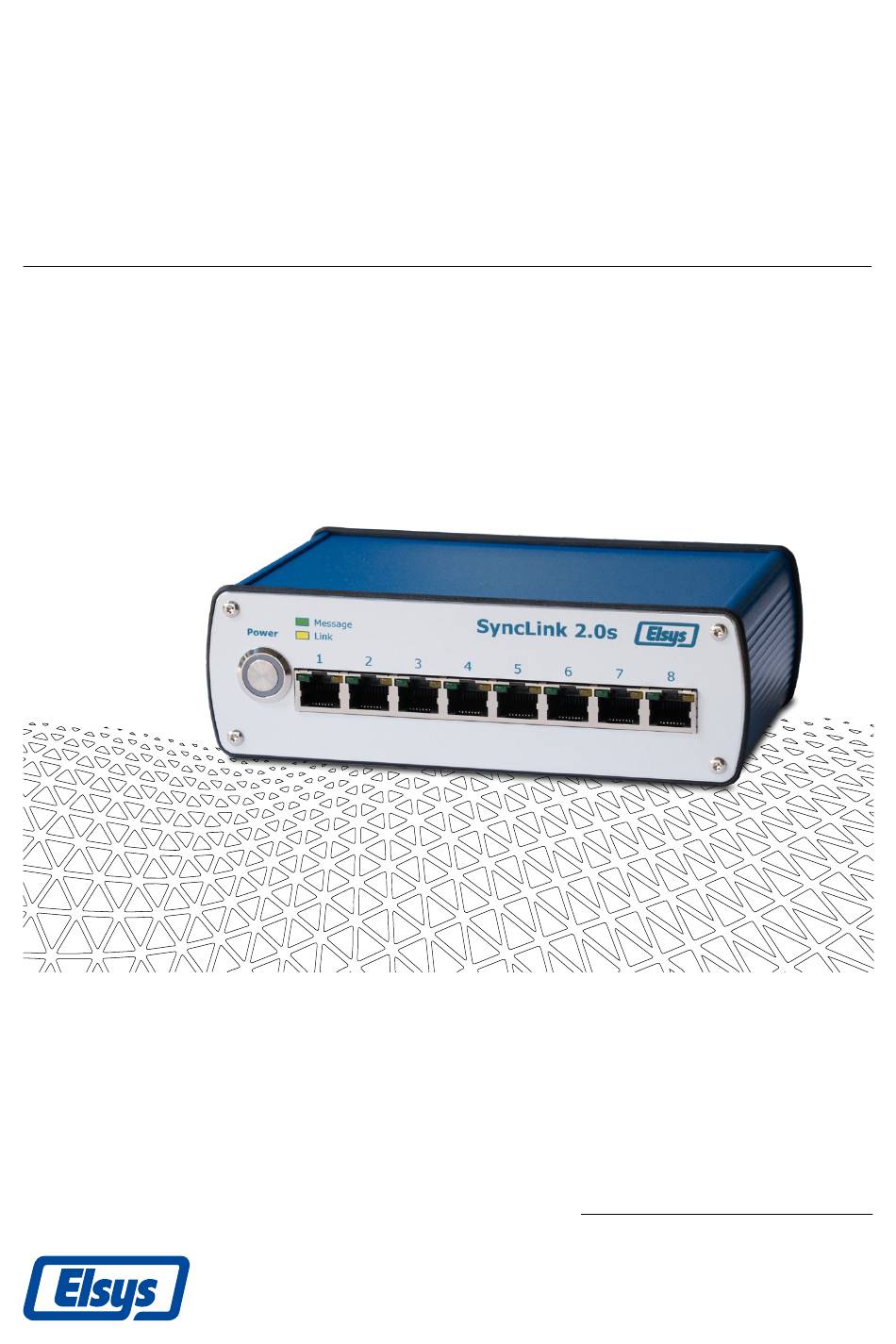

- Page 1 SyncLink Device Synchronization User Manual SyncLink 2.0 SyncLink 2.0s...
- Page 2 Legal Notice in the chapter Operating Condition! TranAX® is a registered trademark by Elsys AG TraNET® is a registered trademark by Elsys AG The design of the instrument has been verified to conform to the EN 61010-1 safety standard...
-
Page 3: Table Of Contents
4. Working with Multiple Devices in TranAX 9 4.1 Device connection .............9 5. Trouble shooting..........10 5.1 No connection ............10 5.2 Devices are in Sync-Mode but the Syn- cLink is disconnected ............10 6. External Synchronization ......10 7. Hardware Specification ........11 Elsys AG SyncLink User Manual... -
Page 4: Introduction
It is important to use the same type Up to 8 TraNET devices can be connected of SFP+ module on each slot. The to one SyncLink. All sockets from 1 to 8 are type of module must be adapted to equivalent. - Page 5 Elsys AG SyncLink User Manual...
-
Page 6: Web-Interface
USB stick. • Enter the new IP address in the “IP ad- dress” field and press “Set new IP” Enter the IP address of the SyncLink device • Power down the SyncLink and restart. and press connect. The Connection Status •... -
Page 7: Raw Command List
{“gps_sync_state”:true, ” pwm_value”:4927}, {“sync_delay”:0}, {“delaycounter”:1}] http://IPAddress/setdelay?d=x Set the Multi-Sync delay, x = 0 to 255 http://IPAddress/gps_on Turn on external GPS/PPS synchronisation http://IPAddress/gps_off Turn off external GPS/PPS synchronisation http://IPAddress/ipset?ip=NEWIP Set a new IP address in the form xxx.xxx.xxx.xxx Elsys AG SyncLink User Manual... -
Page 8: Delay Line Compensation
6. Set the delays on the SyncLink2.html page necessary. for each device. In a Multi-SyncLink setup, the delay added by Now the system is synchronized. The addition- the FOC connection must be compensated al delay added to each node has the effect that... -
Page 9: Working With Multiple Devices In Tranax
Select all the devices you want to connect using Ctrl and the left mouse button. Then The correct function of the SyncLink push “connect” . is shown with the double-arrow symbol. -
Page 10: Trouble Shooting
5. Trouble shooting 6. External Synchronization 5.1 No connection (Only SyncLink 2.0) The master clock of the SyncLink 2.0 can Check all cables for correct connection. be synchronized to a 3rd part measurement systems by applying an external 1 Hz (1 PPS) -
Page 11: Hardware Specification
TTL Level, max 10V PPS sync. precision Short term: ±1µ not available long term: 0 µs FOC Interface SFP+ Transeiver not available (not included) Power 100 - 240VAC, 50 or 60 Hz 12V DC Dimensions 19", 1 U Elsys AG SyncLink User Manual...
