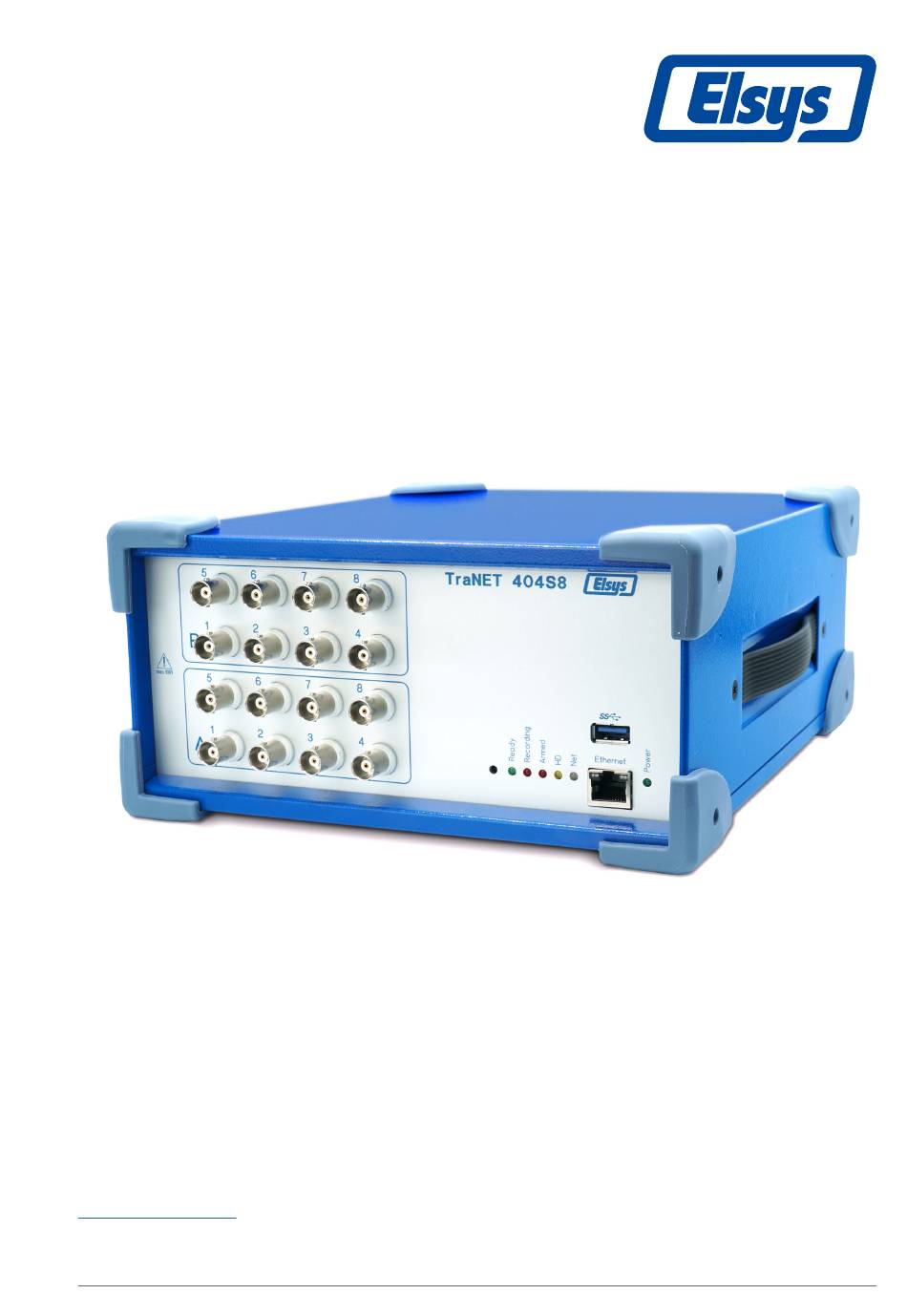

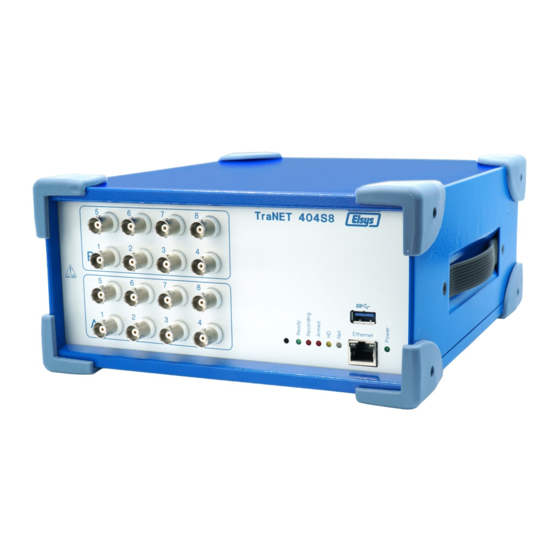

- Page 1 TraNET ® User Guide Elsys AG Elsys AG Mellingerstrasse 12 CH-5443 Niederrohrdorf Switzerland Phone: +41 56 496 01 55 Email: info@elsys.ch www.elsys-instruments.com 2021 Elsys AG www.elsys-instruments.com...
-
Page 2: Table Of Contents
TraNET FE User Guide Content Safety Information Introduction Variants of TraNET Models Requirements of the Client Computer Basic Mode of Operation of the TraNET device Network Drive TraNET Client PC Connection Guide IP Address Configuration Device Configuration Time and Synchronization Settings... - Page 3 Notice The information in this document is subject to change without notice. ELSYS AG SHALL NOT BE LIABLE FOR TECHNICAL OR EDITORIAL ERRORS OR OMISSIONS CON- TAINED HEREIN; NOR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE FURNISHING, PERFORMANCE, OR USE OF THIS MATERIAL Elsys AG www.elsys-instruments.com...
-
Page 4: Safety Information
TraNET FE User Guide 1. Safety Information This instrument is intended for indoor use and should be operated in a clean, dry environ- ment. Make sure this product‘s operating environment is kept within the parameters as specified in the chapter Operating Condition! -
Page 5: Introduction
Note: This manual refers to TraNET FE only! 2.1.1 TraNET FE TraNET FE (Frontend Unit): Depending of the number and type of channels, there exist a couple of different models. These devices works as a LAN server. It always requires an Ethernet Link to a client computer (e.g. -
Page 6: Requirements Of The Client Computer
TraNET FE User Guide 2.1.2 TraNET EPC TraNET EPC: IPC based instrument. Individual configu- rations up to 32 channels per device can be realized. The device works under Windows operating system. If only local operation is used, Ethernet link is not re- quired (data acquisition operating software TranAX runs on the instrument itself). - Page 7 Linux operating system. TraNET FE operates via Ethernet Link as a TCPI/IP Server. A simple point to point connection to a client PC (e.g. Notebook PC) allows an easy installation. Otherwise it can be connected to any existing LAN and allows remote operation.
- Page 8 TraNET FE User Guide 2.3.4 ECR (Event Controlled Recording) This mode is optional! The ECR mode allows targeted acquisition of cyclic or sporadically arising events. This implies that the registration of measuring data only occurs if certain signal conditions (trigger, time window, repetitions, etc.) are fulfilled.
-
Page 9: Network Drive
TraNET FE User Guide 2.4 Network Drive The data from the internal SSD or external USB drive can be accessed over a shared network drive. Just type “\\IPAddress” (ex. \\192.168.0.33) in your address field of the Windows File Explorer and you will see the shared folder “Measurement Data”. Files generated during the measurement are named with the extention .tmp and can’t be removed. -
Page 10: Tranet Client Pc Connection Guide
The factory default adress configuration of a TraNET FE is Static IP 192.168.0.33 In order to setup up a connection to the TraNET FE device, the client computer must be config- ured to a static IP address in the same IP range, for example 192.168.0.34. - Page 11 Someone has maybe already changed the IP Address already. Set the device to DHCP and AUTO IP mode: • Switch off the TraNET FE device, press and hold the button in the hole next to the LED “Ready”, power-on the device and wait until the LED “Ready” blinks permanently.
-
Page 12: Device Configuration
TraNET FE User Guide 4. Device Configuration Several device settings can be changed over the built-in web page as mentioned in the IP con- figuration chapter. The web page can be accessed over http:\\IPAddress The welcome page shows device information, LAN configuration status, Firmware version and general hardware state like CPU temperature. -
Page 13: Time And Synchronization Settings
TraNET FE User Guide 4.1 Time and Synchronization Settings The TraNET FE device is equipped with a real time clock which is battery driven. This time is used for: • Generating the “Last calibrated on” time stamp • Generating timestamps for log entries in the system log file •... - Page 14 FE or 3rd part devices with the help of the PTP time synchronization protocol. The TraNET FE can either be the master clock or a client clock. If any master clock is available in the network, the TraNET FE will automatically sync on that clock, when the clock is running in the same clock domain.
-
Page 15: Measurement Settings
TraNET FE User Guide 4.2 Measurement Settings 4.2.1 Device • Name: Set the device name as visible in TranAX • Description: Additional information about the device helping to identify the device in the network. • Server port: TCP Port, should only be changed if it is in conflict with another application in the network. - Page 16 TraNET FE User Guide www.elsys-instruments.com Elsys AG...
- Page 17 10011 4.2.5 LXI Trigger Settings TraNET FE device can be either source or receiver of UDP-based LXI trigger messages. The con- figuration of the trigger is done in the control panel of TranAX.
-
Page 18: Hardware Specification
5. Hardware Specification 5.1 Signal Inputs, Pin Assignments 5.1.1 Analog Inputs TraNET FE with Single Ended Inputs Channel 5 (6), 7 (8) are configured by software to differential inputs. BNC 5, 7 = Positiv, 6,8 = Negativ inputs. TraNET FE with Differential Inputs Channel 2 is used as single ended input. - Page 19 TraNET FE User Guide 5.1.2 Rear View (e.g. TraNET 204x) 5.1.3 Digital In / Out / Marker D-SUB Connector 25 pol. Female Connector Pin Pin Name Description Spec. Trigger out 5 V TTL Armed out (active low) Functionality set in...
-
Page 20: Usb Interface
ADC Data Internal 5.2 USB Interface Starting with revision 3 of the TraNET FE, the device provides a USB 3 interface for connecting any external storage devices like USB sticks or USB SSD drives. The external drive can be used as backup drive for copy internal BDF files from continuous mea- surements if no fast Ethernet connection is available. -
Page 21: Tpce Block Diagram
TraNET FE User Guide 5.3 TPCE Block Diagram PCIe x1/ x4 PCIe-Controller Averager Averager Averager Averager Latch Latch Latch Latch Offset Offset Offset Offset Diff *2 Diff *2 1MΩ 1MΩ 1MΩ 1MΩ Attenuator Attenuator Attenuator Attenuator 10:1 10:1 10:1 10:1... -
Page 22: Standard Filter
20 dB/dec. Noise between 500 kHz and 10 MHz is digital filtered an will not produce any mirror signals at lower frequencies. 5.5 Trigger Logic Elsys DAQ cards are available with two different trigger packages, the standard trigger pack- age and the Advance Trigger package: Standard Trigger Advance Trigger •... -
Page 23: Anti-Aliasing Filter Module
TraNET FE User Guide 5.6 Anti-Aliasing Filter Module Anti-Aliasing Filters are an option and must be installed at fabrication time. (TPCE Option AAF-4 or AAF-8). Filter Pos. Cut-off f0 Tol. Filter Type Order Stopband Passband Rippel Additional Gain and (-3 dB) f [±%]... -
Page 24: Power
TraNET FE User Guide 5.7 Power AC Power Supply: 100 - 240 V, 50/60 Hz DC Power Supply: 10 - 36 V DC Power Consumption: TraNET 204 max. 40W TraNET 404 max. 60W TraNET 408 DP max. 120W 5.7.1 Inlet Protection Fuse Type 5x20mm, the indicated type with labeled rated values must be used only. -
Page 25: Data Acquisition Card Specification
TraNET FE User Guide 6. Data Acquisition Card Specification TPCE Specification 6.1 TPCE DAQ Card 40 - 240 MHz Data Acquisition Modules Module Type TPCE-24016-4 TPCE-12016-4 TPCE-8016-4 TPCE-4016-4 4 single ended or 2 differential 4 single ended or 2 differential... - Page 26 TraNET FE User Guide TPCE Specification 2 - 20 MHz Data Acquisition Modules Module Type TPCE-2016-4/8 TPCE-1016-4/8 TPCE-0516-4/8 TPCE-0216-4/8 4-Channel Modules: 4 single ended or 2 differential Number of Input Channels SE Module 8-Channel Modules: 8 single ended or 4 differential...
-
Page 27: Tpce-Le Daq Card
TPCE-LE Specification TraNET FE User Guide 40 - 240 MHz Data Acquisition Modules 6.2 TPCE-LE DAQ Card Module Type TPCE-LE-24014-4 TPCE-LE-12014-4 TPCE-LE-8014-4 TPCE-LE-4014-4 4 single ended or 2 differential 4 single ended or 2 differential Number of Input Channels SE Module... - Page 28 TraNET FE User Guide TPCE-LE Specification 2 - 20 MHz Data Acquisition Modules Module Type TPCE-LE-2014-4/8 TPCE-LE-1014-4/8 TPCE-LE-0514-4/8 TPCE-LE-0214-4/8 4-Channel Modules: 4 single ended or 2 differential Number of Input Channels SE Module 8-Channel Modules: 8 single ended or 4 differential...
-
Page 29: Tpce-Dp Daq Card
@ 10 kHz Sample Rate 87 dB 81 dB 87 dB 81 dB Channel Crosstalk @ 1 MHz > 74 dB > 74 dB TPCE-2016-8S-DP and TPCE-8016-8S-DB can only be installed in TraNET FE 408 DP devices! Elsys AG www.elsys-instruments.com... -
Page 30: Software Api
TraNET FE User Guide 7. Software API All DAQ cards as also the TraNET devices are based on the same Server-Client Software archi- tecture. Any client application can access the data acquisition device over an IP address either locally or over a network. This way distributed measurement set-ups can be easily built-up. -
Page 31: Labview
TraNET FE User Guide 7.1 LabVIEW Elsys provides a LabVIEW instrument driver which is fully compliant with the NI driver design guide- lines. The application server encapsulates all necessary task for controlling the different measure- ment modes described above, including data streaming to the hard drive. Therefor no chal- lenging programming is needed for streaming application as this is already integrated into the Server software. - Page 32 TraNET FE User Guide File Revision: Date Description 05.12.2012 User Manual Gen. 2 22.04.2021 User Manual Gen. 3 Elsys AG Elsys AG Mellingerstrasse 12 CH-5443 Niederrohrdorf Switzerland Phone: +41 56 496 01 55 Email: info@elsys.ch www.elsys-instruments.com www.elsys-instruments.com Elsys AG...
