TOLSEN TOOLS FX 79038 Instruction Manual

Li-ion cordless drill & impact driver set 12v
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

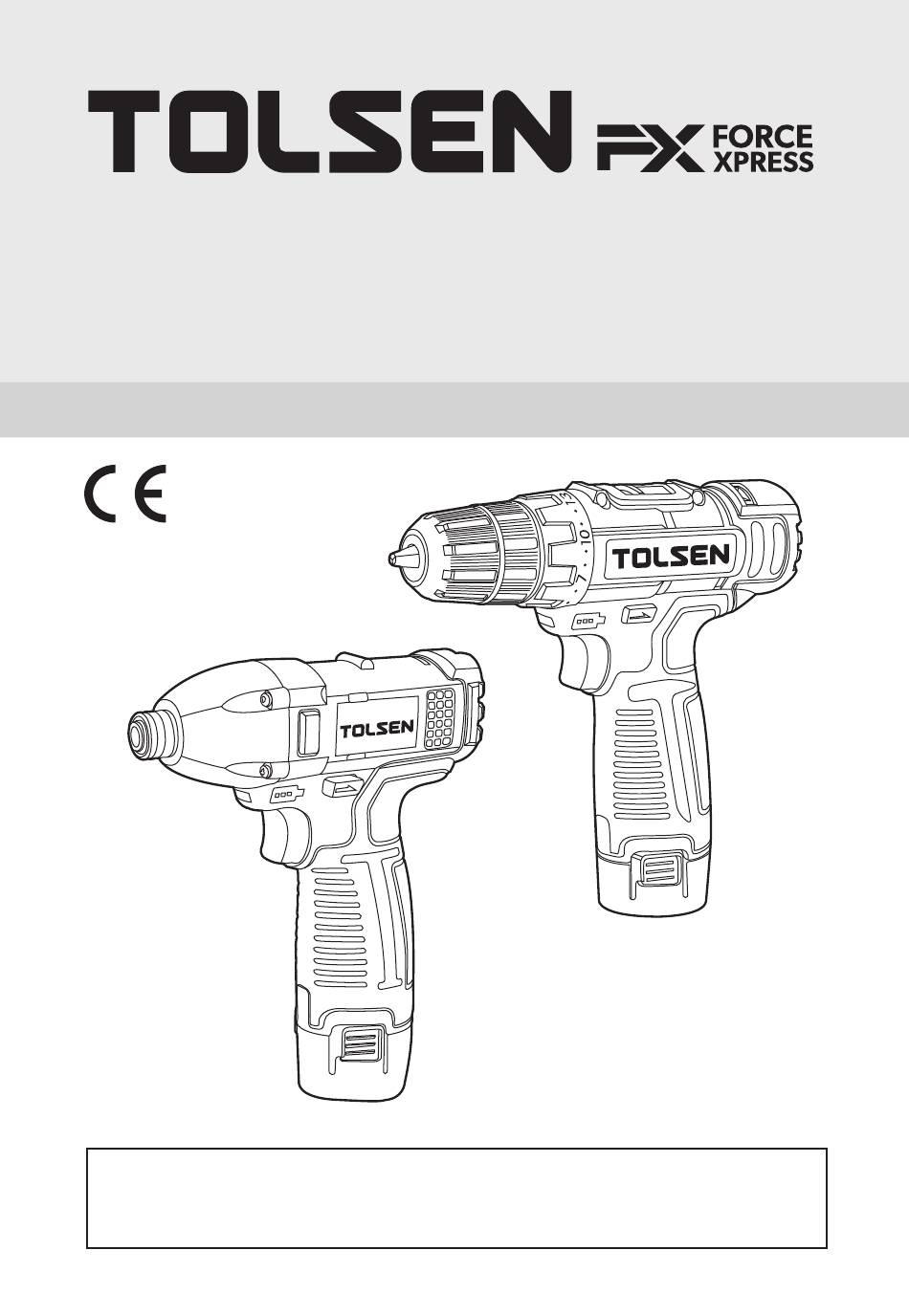

LI-ION CORDLESS DRILL
& IMPACT DRIVER SET
INSTRUCTION MANUAL
SAVE THIS MANUAL !
You will need this manual for safety instructions, operating procedures and warranty.
Put it and the original sales receipt in a safe dry place for future reference.
79038
12V

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FX 79038 and is the answer not in the manual?

Questions and answers

Related Manuals for TOLSEN TOOLS FX 79038

Summary of Contents for TOLSEN TOOLS FX 79038

  • Page 1 LI-ION CORDLESS DRILL 79038 & IMPACT DRIVER SET INSTRUCTION MANUAL SAVE THIS MANUAL ! You will need this manual for safety instructions, operating procedures and warranty. Put it and the original sales receipt in a safe dry place for future reference.

  • Page 2: Work Area Safety

    SAFETY IMPORTANT SAFETY INFORMATION General Power Tool Safety Warnings WARNING: read all safety warnings and instructions.Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.Save all warnings and instructions for future reference.The term ”power tool” in the warnings refers to your mains-operated (corded) power tool. Work area safety 1.

  • Page 3: Personal Safety

    SAFETY Personal safety 1.Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

  • Page 4: Drill Safety Warnings

    4.If the drill bit jams, release the Trigger immediately; drill torque can cause injury or break bit. 5.Maintain labels and nameplates on the tool. These carry important safety information. If unreadable or missing, contact Tolsen Tools for a replacement. 6.Avoid unintentional starting. Prepare to begin work before turning on the tool.

  • Page 5: Impact Driver Safety Warnings

    SAFETY Impact Driver Safety Warnings 1.Hold power tools by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a ″live″ wire will make exposed metal parts of the power tool ″live″ and could give the operator an electric shock. 2.Maintain labels and nameplates on the tool.

  • Page 6: Vibration Safety

    SAFETY Lithium Battery Safety Warnings lithium batteries store a large amount of energy and will vent fire or explode if mistreated: 1.keep battery pack dry. 2.do not do any of the following to the battery pack: •open, •drop, •short-circuit, •puncture, •incinerate, or •expose to temperatures greater than 140°f.

  • Page 7: Specifications

    SPECIFICATIONS SPECIFICATIONS Cordless drill 79036 Battery Rating 12 V / 1.5 Ah Battery Type Li-ion No Load Speed : 0 – 350/min n : 0-1250/min Maximum Torque 28 N.M Chuck Size 10mm Impact driver 79037 Battery Rating 12 V / 1.5 Ah Battery Type Li-ion No Load Speed...

  • Page 8: Operation

    SETUP OPERATION Read the entire important safety information section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Tool Set up Warning! To prevent serious injury from accidental operation: ake sure that the trigger is locked and battery pack is removed before performing any procedure in this section.
  • Page 9 SETUP FUNCTIONS Lock collar Work light Direction switch Trigger Battery pack Chuck Clutch collar Gear Switch Work light Direction switch Trigger Battery pack...
  • Page 10 SETUP OPERATING INSTRUCTIONS Read the entire important safety information section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Drill bit installation CAUTION! Wear heavy-duty work gloves to provide protection when inserting and removing drill bits. Drill bits become very hot during use.
  • Page 11 SETUP Charging 1.Place the Battery Pack on a dry fireproof surface in a room where the temperature is from 50–104° F. Note: If recharging a newly spent Battery Pack, allow it to cool completely before charging. 2.Examine the Battery Pack. It must be undamaged, and an 12V, Li-ion Battery Pack. Do not charge a cracked, open, or leaking Battery pack, or charge a non-recommended type of Battery pack.

  • Page 12: Maintenance And Servicing

    MAINTENANCE AND SERVICING Procedures not specifically explained in this manual must be performed only by a qualified technician. To prevent serious injury from accidental operation: make sure that the trigger is in the off-position and remove its battery pack before performing any procedure in this section. To prevent serious injury from tool failure: do not use damaged equipment.

  • Page 13: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING problem possible causes Likely Solutions Tool will not 1.Battery Pack not properly 1.Remove Battery Pack, make sure there are no start. connected. obstructions, clean battery contacts on tool, 2.Battery Pack not properly charged. reinsert the Battery Pack according to its shape 3.Battery Pack worn out.

  • Page 14: Ce Declaration Of Conformity

    CE DECLARATION OF CONFORMITY SUZHOU TOLSEN TOOLS CO.,LTD. 198 HUASHAN ROAD, ZHANGJIAGANG, JIANGSU, CHINA Declare that the product 79036 CORDLESS DRILL 12Vd.c. Ø10mm n : 0-400/0-1400/min 79037 CORDLESS IMPACT SCREWDRIVER 12Vd.c. n : 0-2800/min Serial number: N/A Complies with the essential health and safety requirements of the following...
  • Page 15 SUZHOU TOLSEN TOOLS CO.,LTD. www.tolsentools.com TOLSEN is a trademark or registered trademark of TOLSEN TOOLS. All rights reserved. SCAN TO VISIT TolsenWorld MADE IN CHINA PRODUCT LINK...
