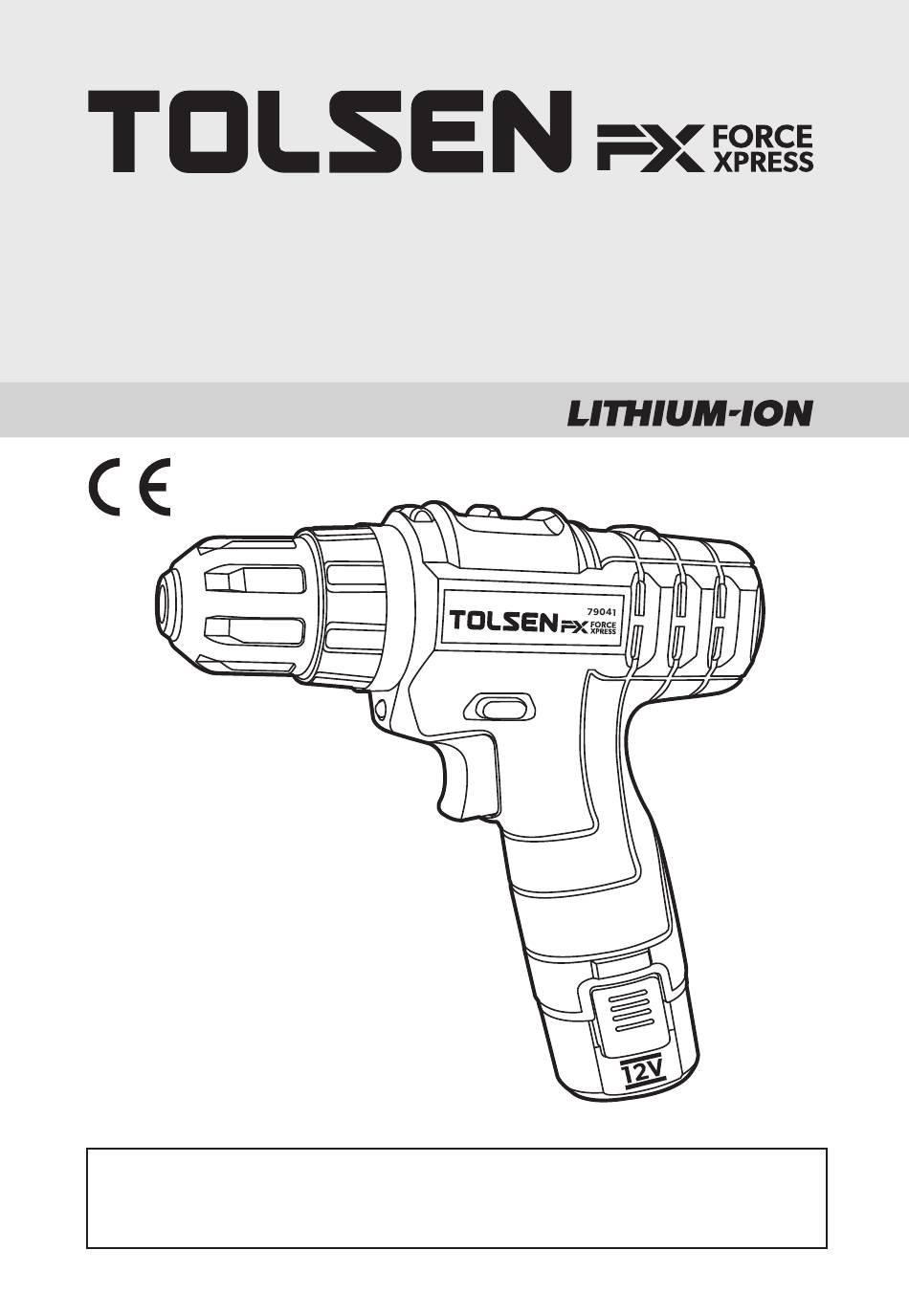

- Page 1 79041 LI-ION CORDLESS DRILL INSTRUCTION MANUAL SAVE THIS MANUAL ! You will need this manual for safety instructions, operating procedures and warranty. Put it and the original sales receipt in a safe dry place for future reference.
-
Page 2: Work Area Safety
SAFETY IMPORTANT SAFETY INFORMATION General Power Tool Safety Warnings WARNING: read all safety warnings and instructions.Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.Save all warnings and instructions for future reference.The term ”power tool” in the warnings refers to your mains-operated (corded) power tool. Work area safety 1. -
Page 3: Personal Safety
SAFETY Personal safety 1.Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. -
Page 4: Drill Safety Warnings
4.If the drill bit jams, release the Trigger immediately; drill torque can cause injury or break bit. 5.Maintain labels and nameplates on the tool. These carry important safety information. If unreadable or missing, contact Tolsen Tools for a replacement. 6.Avoid unintentional starting. Prepare to begin work before turning on the tool. -
Page 5: Vibration Safety
SAFETY Lithium Battery Safety Warnings Lithium batteries store a large amount of energy vent fire or explode if mistreated: 1.keep battery pack dry. 2.do not do any of the following to the battery pack: •open •drop •short-circuit •puncture •incinerate •expose to temperatures greater than 140°f 3.charge battery pack only according to its charger’s instructions. -
Page 6: Specifications
SPECIFICATIONS SPECIFICATIONS Rated Voltage 12VDC No-load Speed : 0-400;0-1500/min Chuck Capacity 10mm (3/8”) Torque Max. 28N m (248in.lbs.) Battery pack Voltage 12VDC Battery capacity 1500 mAh Charger Input Voltage 100-240VAC 50/60Hz Output Voltage 15VDC Rated output current 600mA Protection class FUNCTIONS Gear Switch Chuck... - Page 7 SETUP Note: Symbology Class II Double insulated for additional protection CE conformity Read the instruction manual before using Wear hearing protection while operating the tool Wear hand protection Always use breathing apparatus when machining materials which generate dust. Wear ear protection. Operating environmental temperature Max 50 º...
- Page 8 SETUP OPERATING INSTRUCTIONS Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Drill bit installation CAUTION! Wear heavy-duty work gloves to provide protection when inserting and removing drill bits. Drill bits become very hot during use.
- Page 9 SETUP charging 1.Place the Battery Pack on a dry fireproof surface in a room where the temperature is from 50–104° F. Note: If recharging a newly spent Battery Pack, allow it to cool completely before charging. 2.Examine the Battery Pack. It must be undamaged, and an 12V, Li-ion Battery Pack. Do not charge a cracked, open, or leaking Battery pack, or charge a non-recommended type of Battery pack.
-
Page 10: Maintenance And Servicing
MAINTENANCE AND SERVICING Procedures not specifically explained in this manual must be performed only by a qualified technician. To prevent serious injury from accidental operation: make sure that the trigger is in the off-position and remove its battery pack before performing any procedure in this section. To prevent serious injury from tool failure: do not use damaged equipment. -
Page 11: Troubleshooting
MAINTENANCE AND SERVICING TROUBLESHOOTING problem possible causes Likely Solutions Tool will not 1.Battery Pack not properly 1.Remove Battery Pack, make sure there are no start. connected. obstructions, clean battery contacts on tool, 2.Battery Pack not properly charged. reinsert the Battery Pack according to its shape 3.Battery Pack worn out. -
Page 12: Ce Declaration Of Conformity
CE DECLARATION OF CONFORMITY SUZHOU TOLSEN TOOLS CO.,LTD. 198 HUASHAN ROAD, ZHANGJIAGANG, JIANGSU, CHINA Declare that the product 79041 LI-ION CORDLESS DRILL Complies with the essential health and safety requirements of the following Directices: council directive 2006/42/EC Standards and technical specifications referred to:... - Page 13 SUZHOU TOLSEN TOOLS CO.,LTD. www.tolsentools.com TOLSEN is a trademark or registered trademark of TOLSEN TOOLS. All rights reserved. SCAN TO VISIT TolsenWorld MADE IN CHINA PRODUCT LINK...
