Uni-bond E-935 Series Installation Manual

SAFETY FIRST - READ THIS INFORMATION BEFORE INSTALLATION
Proper installation of this product requires the installer to have a good understanding of automotive electronics systems and procedures.
All products must have proper fuse installed.
If mounting this product requires drilling holes, the installer MUST be sure that no vehicle components or other vital parts could be damaged by
the drilling process. Check both sides of the mounting surface before drilling begins. Also de-burr any holes and removes any metal shards or
remnants. Install grommets into all wire passage holes.
If this manual states that this product may be mounted with suction cups or magnets, clean the mounting surface with 50/50 mix of isopropyl
alcohol and water, then dry thoroughly.
Do not install this product or route any wires in the deployment area of your air bag. Equipment mounted or located in the air bag deployment
area will damage or reduce the effectiveness of the air bag, or become a projectile that could cause serious personal injury or death. Refer to
your vehicle owner's manual for the air bag deployment area. The user/installer assumes full reponsibility to determine proper mounting location
based on providing ultimate safety to all passengers inside the vehicle. Install only where vehicle manufacturer recommends.
For this product to operate at optimum efficiency, a good electrical connection to chassis ground must be made. The recommended procedure
requires the product ground wire to be connected directly to the NEGATIVE [-] post. At a minimum, it may be attached to a solid metal body or
chassis part that will provide an effective ground path as long as the light system is to be used.
If this product uses a device to activate or control this product, make sure that this control is located in the area that allows both the vehicle and
the control to be operated safely.
Do not attempt to activate or control this device in a hazardous driving situation.
Do not stare directly into these lights. Momentary blindness and/or eye damage could result.
Use only soap and water to clean the outer lens. Use of other chemicals could result in premature lens cracking [crazing] and discoloration. Lenses
in this condition have significantly reduced effectiveness and should be replaced immediately. Inspect and operate this product regularly to
confirm its proper operation and mounting condition. Do not use a pressure washer to clean this product.
It is recommended that these instructions be stored in a safe place and referred to when performing maintenance and/or reinstallation of this
product.
FAILURE TO FOLLOW THESE SAFETY PRECAUTIONS AND INSTRUCTIONS COULD RESULT IN DAMAGE TO THE PRODUCT OR VEHICLE
AND/OR SERIOUS INJURY TO YOU AND YOUR PASSENGERS!
MAGNET INSTALLATION
WARNING: As roof construction and driving conditions vary, the use of any magnetic or suction cup mounted warning light on the outside of a
vehicle while in motion, is not recommended and is at the sole discretion and risk of the user.
Holding power of magnetic mounting systems is dependent upon surface finish, surface flatness, and thickness of the steel mounting surface.
Therefore, to promote proper magnetic mounting;
• Mounting surface and magnets must be kept clean, dry and free of foreign particles that prevent good surface contact.
Ensure that mounting surface is flat.
•
• To prevent sliding of light assembly on mounting surface, quick acceleration and hard stops should be avoided.
STROBE LIGHT
WARNING: The strobe light power supply is a high voltage device. Do not remove strobe tubes or dismantle strobe lightheads in the system while
it is in operation. Wait 10 minutes after turning off power before starting work or any troubleshooting.
An unfused installation may cause damage to equipment, fire, or injury to you or others. Ensure that a fuse is installed.
IMPORTANT ELECTRICAL WARNINGS!!
DO NOT use a cigar lighter socket as a power source for this or any electrical accessory! Use a 12 volt accessory power port or auxiliary power
outlet of sufficient capability. Do not exceed the manufacturers' power rating for the selected port/outlet!
DO NOT pull on the power plug wires when removing the plug from the outlet! To remove, firmly grasp the power plug housing and pull.
ANY DEVIATIONS FROM THE ABOVE ELECTRICAL GUIDELINES WILL VOID THE PRODUCT WARRANTY.
IMPORTANT! It is the responsibility of the installation technician to make sure that the installation and operation of this product will not interfere
with or compromise the operation or efficiency of any vehicle equipment!
IMPORTANT! Before returning the vehicle to active service, visually confirm the proper operation of this product, as well as all vehicle components
and equipments.

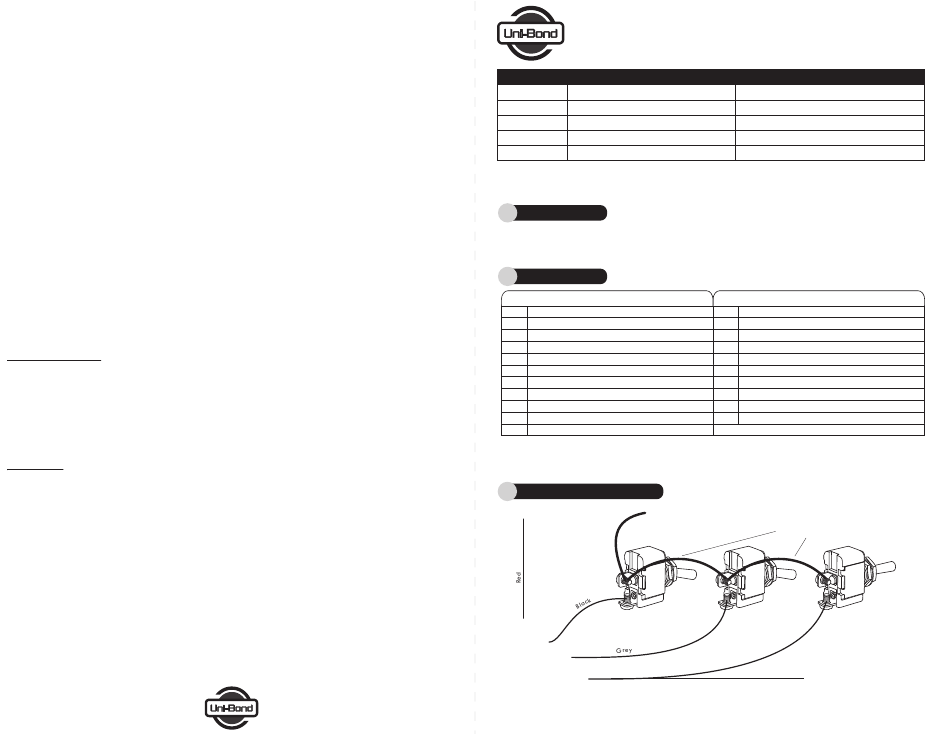

INSTALLATION MANUAL
Wire Colour Functions
Red Power
Black Ground
Yellow Pattern Selection / Synchronization
Signal Light
Grey
White Dimming
Surface Mount: 2 Holes @ 4.75" centres •
To synchronise the lamps, please refer to Synchronization Manual
1.0 Pattern Selection
- Tap yellow wire to (-) ground momentarily to change patterns (see Flash Patterns)
- To return to pattern NO. 1, touch yellow wire to (-) ground for 6 to 9 seconds.
1.1 Flash Patterns
NO. Flash Patterns
1 Simultaneous Single Flash (2Hz)
2 Simultaneous Single Flash
3 Simultaneous Double Flash (2Hz)
4 Simultaneous Double Flash
5 Simultaneous Triple Flash (2Hz)
6 Simultaneous Quad Flash (2Hz)
7 Simultaneous Quad Flash
8 Simultaneous Quick Flash (2Hz)
9 Simultaneous Quick Flash
10 Simultaneous Ultra Flash
11 Simultaneous Mega Flash
*Only the Amber Versions on Patterns 1, 3 & 6 are SAE J595 Class 1
**Patterns 18 / 19 / 20 / 21 DO NOT have Alternating Sync
2.0 Suggested Switch Connection
(switches sold separately)
Battery Positive From Battery Ground
Switch #1
ST100
(OFF-ON)
Power
Ground
Signal Light
Pattern Selection
Yellow
Synchronization
***If dimming function is required, simply connect the White Wire to (-) Ground or any ON-OFF Switch
For more information, visit our website at: www.unibondlighting.com
E-935 Series LED Warning Lights
Connect To
+12/24 VDC (Power)
- (Ground)
- (Ground)
+12/24 VDC (Power)
-
(Ground)
Light should be fused with 3 Amp Fuse (
sold separately
NO. Flash Patterns
12 Alternating Single Flash
13 Alternating Double Flash
14 Alternating Quad Flash
15 Alternating Quick Flash
16 Alternating Single Flash - Incremental Speed
Alternating Double Flash - Incremental Speed
17
SOS Flash
18
19 CYCLE 1 (pattern : 1,8,3,9,4,18)
20 CYCLE 2 (pattern : 2,7,9,11,14,16)
Steady Light
21
Jumper Wires
Switch #2
ST100
(OFF-ON)
other E-926 units
Last Updated: 01/04/2025
)
Switch #3
ST108
(OFF-Momentary ON)
