Honeywell Home AlarmNet CELL-ANTU Installation And Setup Manual

General
The Communication Module uses an internal multi band cellular antenna. In most cases, this antenna will provide
sufficient quality of signal (QOS) for a successful installation.
The Honeywell Home Indoor/Outdoor Fixed Length Antenna should be used in installations where moving the
antenna to a higher point will provide a better quality of signal.
Installation Note: For the best QOS, maintain at least 12 inches of clearance between the communication module
and steel I-beams, HVAC ducts, metal studs, steel roofs, exterior walls with metalized insulation
or aluminum siding and other large metal objects.
Kit Includes: Multi band cellular antenna with double sided adhesive
Integrated coax cable with TS9 connector
Antenna mounting hardware pack: 2 cable clamps with screws and anchors
Compatible Modules: Lyric-3G, Lyric-CDMA, Lyric-3GC, LYRICLTE-A, LYRICLTE-C, LYRICLTE-V
Indoor/Outdoor Antenna
The antenna is waterproof, and can be installed indoors or outdoors. The antenna should be mounted on a glass,
plastic, drywall, masonry or wood surface vertically, while maintaining 12 inches of clearance from large metal
objects. Do not install on a metal surface.
Install the antenna as follows:
1. Find a suitable location for mounting the antenna vertically.
2. Refer to the radio communication module installation guide for Replacing the Module.

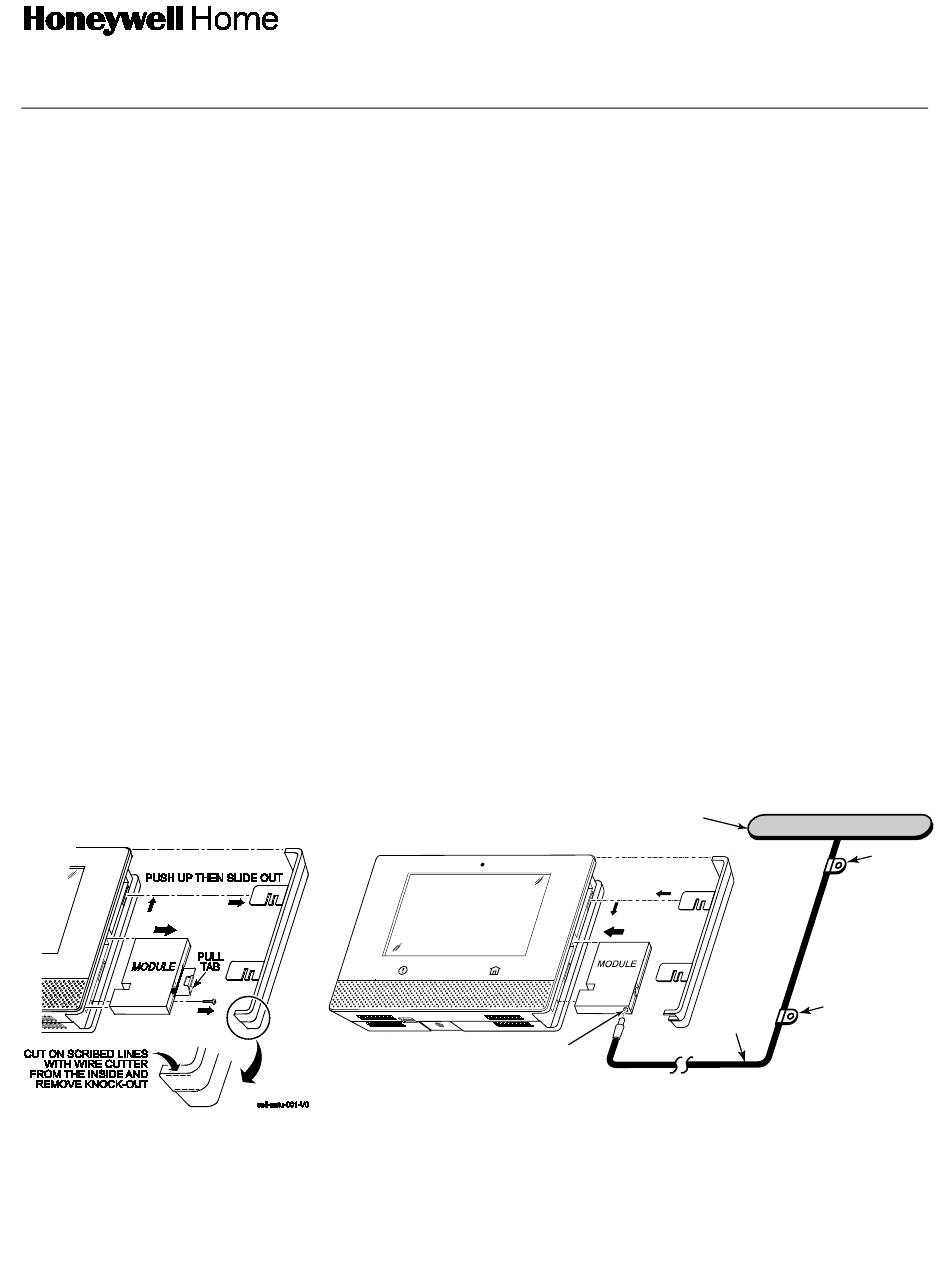

3. Using wire cutters, remove the knock-out in the plastic frame as shown below.
4. Plug the TS9 end of the cable into the module's external antenna port and route the cable.
5. Refer to the Cellular Information screen on the Lyric controller to make sure the displayed QOS is acceptable.
See the radio communication module installation guide for specific ranges.
6. Permanently mount the antenna vertically using the double-sided self adhesive and the included hardware.
Lyric-3G / Lyric-3GC / Lyric-CDMA / Lyric LTE Series Communication Module
Installation and Setup Guide
Indoor/Outdoor Fixed Length Antenna Installation
AlarmNet CELL-ANTU
Indoor/Outdoor Fixed Length Antenna
EXTERNAL ANTENNA
PUSH
DOWN
ANTENNA PORT
CABLE
CLAMP
CABLE
CLAMP
ANTENNA
CABLE
cell-antu-002-V1
