Honeywell Home AlarmNet CELL-ANTHB Installation And Setup Manual

GENERAL INFORMATION

The antenna included with CELL-ANTHB supports all frequency bands for LTE, 4G, 3G, and CDMA in North America and is
compatible with all cellular communicators used with VISTA and LYNX PLUS controls.
NOTE: This antenna is for indoor use only.

ASSEMBLY

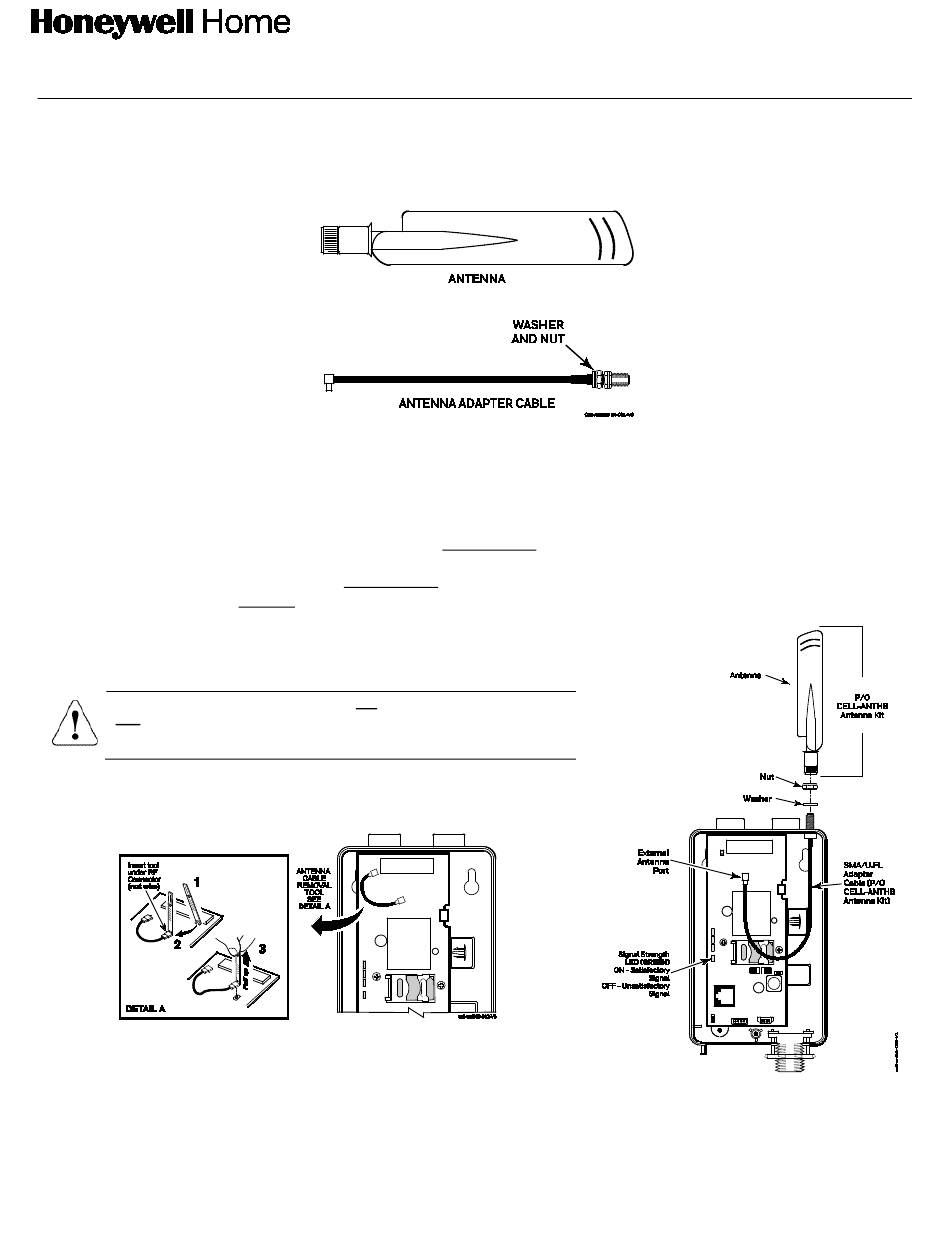

To assemble, refer to the figure below and perform the following steps:
NOTE: Refer to the communication module's Installation and Setup Guide for mounting, wiring and
programming information.
1.
Remove the front cover from the communications module.
2.
Install the through-hole connector of the adapter cable in the top hole on the enclosure back of the
communications module. Secure with lock washer and nut.
3.
Snap the other end of the adapter cable in the external antenna port of the communications module.
4.
Attach the antenna to the connector on top of the housing. Replace the front cover.
Antenna Cable Removal Tool
1.
Slip the Antenna Cable Removal Tool (p/n 700-03513) under RF Cable
connector as shown.
PLEASE: (1) DO NOT use the tool to pry the connector loose. Instead,
pull directly upward, perpendicular to the circuit board. Do not pull on
the cable. (2) USE CAUTION not to damage the adjacent components
when inserting the Antenna Cable Removal Tool.
2.
Pull directly upwards until the connector detaches from the module's
receptacle as shown in Detail A. (This cable is no longer needed.)
3.
Repeat step 1 and 2 to disconnect the cable from the communication
module. (This cable is no longer needed.)
Installation and Setup Guide
AlarmNet CELL-ANTHB
Antenna Kit
Cellular Communication Module
