Summary of Contents for Univox CLS-3T

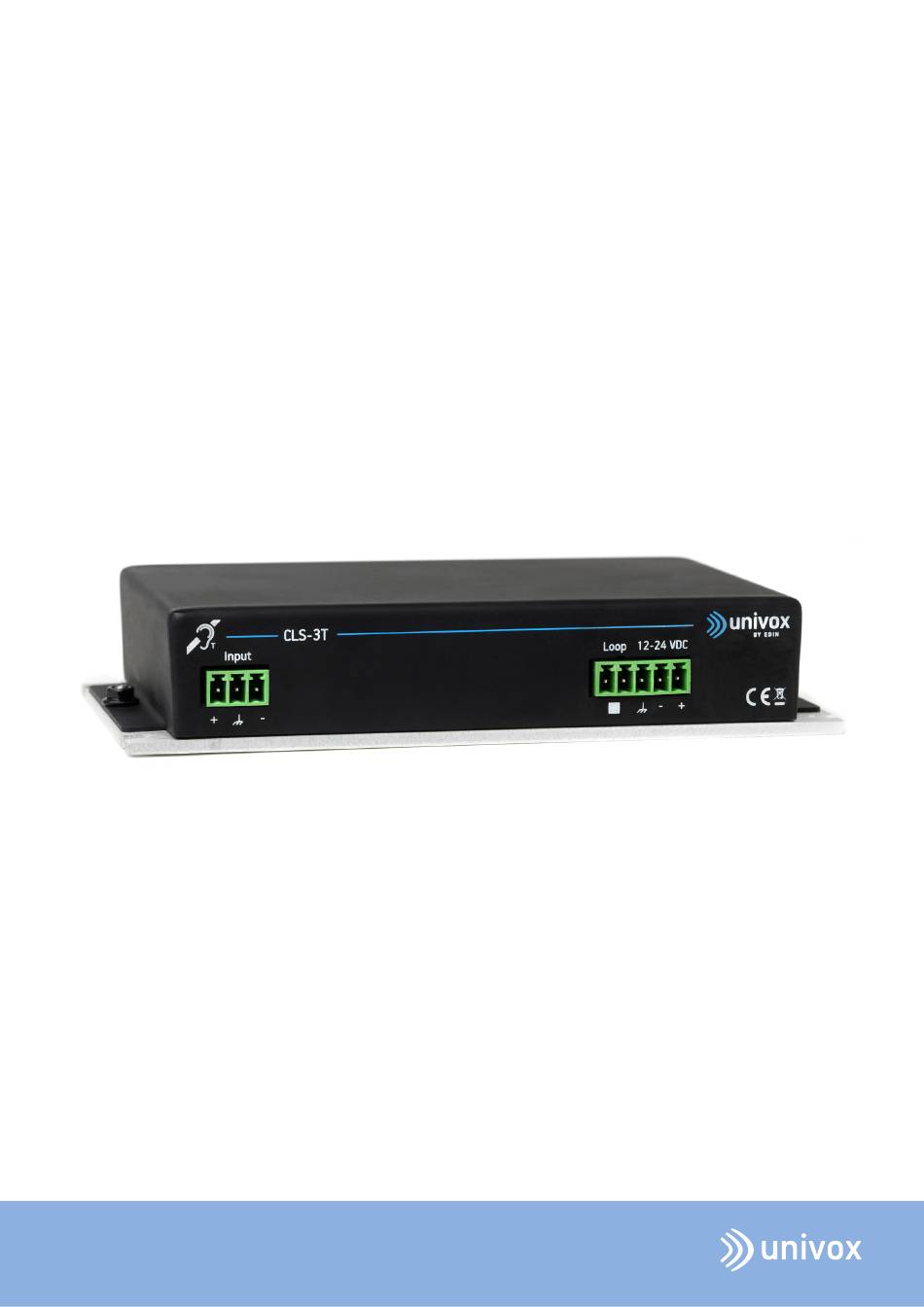

- Page 1 Univox® CLS-3T Vehical Loop Driver User manual Univox CLS-3T, part no 212003...
- Page 2 We always keep you, the customer and end-user, in mind when designing new products, and we work tirelessly for accessibility and equality. Everyone should hear everything! To get in contact with your local distributor, please visit univox.eu. If you’d rather get in touch with us directly, you can do so at:...
-
Page 3: Table Of Contents
Contents Introduction Information Main features Connections overview System planning Wiring planning Power connection Input connection Output connection Measurement and test equipment Troubleshooting Standards Safety Warranty Maintenance and care Service Technical data Environment Technical specifications Images Notes... -
Page 4: Introduction
1. This manual is only valid for Univox® CLS-3T, referred to as ”unit”. 2. This manual shall always be available on-site. 3. Do not connect CLS-3T to other devices without full information and/or understanding of the function and interface of all devices and/or the system as a whole. -
Page 5: Connections Overview
Enhancements – Presence voice filter + Metal Loss Compensation (MLC) internal. Certification and standards – CLS-3T is certified and fully compliant with EN50155 for railway applications and automotive regulation ECE R10. As there is no switching, there is no radiation noise from the unit. -
Page 6: System Planning
Basically no adjustments are required after the initial setup. Amplifier settings The default setting for CLS-3T is based on the Univox-specified loop load together with the initial test setup. Internal adjustments are possible but must be guided by Univox. -
Page 7: Troubleshooting
Do not cover the loop driver. Only operate the unit in a well ventilated, dry environment. Do not remove the cover without consulting Univox. There are no user serviceable parts inside. Refer servicing to qualified personnel. Please observe that the product warranty does not include faults caused by tampering with the product, carelessness, incorrect connection/mounting or maintenance. -
Page 8: Maintenance And Care
Service Number from your distributor. They will also send you a Service Report Form which must be completed and returned with the product. Technical data For additional information, please refer to product data sheet and CE certificate which can be downloaded from www.univox.eu/ products. If required, other technical documents can be ordered from support@edin.se. Environment To prevent possible harm to the environment and human health, please dispose of the product responsibly by following statutory disposal regulations. -
Page 9: Images
Images... -
Page 10: Notes
Notes... - Page 11 Phone +46-8-767 18 18 Univox Visiting address Stockby Hantverksby 3 Förrådsvägen 28 Email info@univox.eu SE-181 75 Lidingö, Sweden SE-181 41 Lidingö, Sweden Web www.univox.eu...
