Zetta Z95 Audio Monitor Quick Start Guide
Overview
Congratulations on your purchase of Zetta Z95 Audio Monitor!
Zetta Z95 is an intelligent audio monitor with low power voice detection function. The audio
monitor comes with a built-in rechargeable battery which can record and ftp upload to
server for up to 20 hours continuously and standby for more than 7 days when voice trigger
is enabled. It can also be powered by a 5V USB source.* 4G data usage is around 8MB per
hour.
* Actual life and performance may vary depending on usage and settings; battery not replaceable
Feature
Circular recording – loop back recording once internal memory is full
Note: Internal memory can store 1-hour audio file. Please insert a 4G SIM card with data
service so that the audio files can be uploaded to the server. The earliest file will be erased
when the memory is full and if it is not sent to the server, it will be lost.
Voice-triggered recording – select to record only when voice is detected, 7 days
standby
Cloud push notification – use the app "Audio Monitor" to get push notification when the
device starts to send files to the server
Real-time remote listening – if a VoLTE-enabled SIM card is used, you can call in to listen
in real-time (enable Call Auto Answer through the Audio Ftp Widget on Windows or Mac)
Scheduled recording – automatically wake up to record, 4 timeslots per day, repeat every
day, please initially turn it on first. Green light will be on then off, then it is in standby mode
Package Content
Please unpack your intelligent audio monitor and check that the followings are included:
Zetta Z95 Audio Monitor
USB 2.0 Cable
Quick Start Guide
Note: The PC configuration tool "Audio Ftp Widget" is not included in the package,
please download it from http://www.zetta.com.hk - support - download

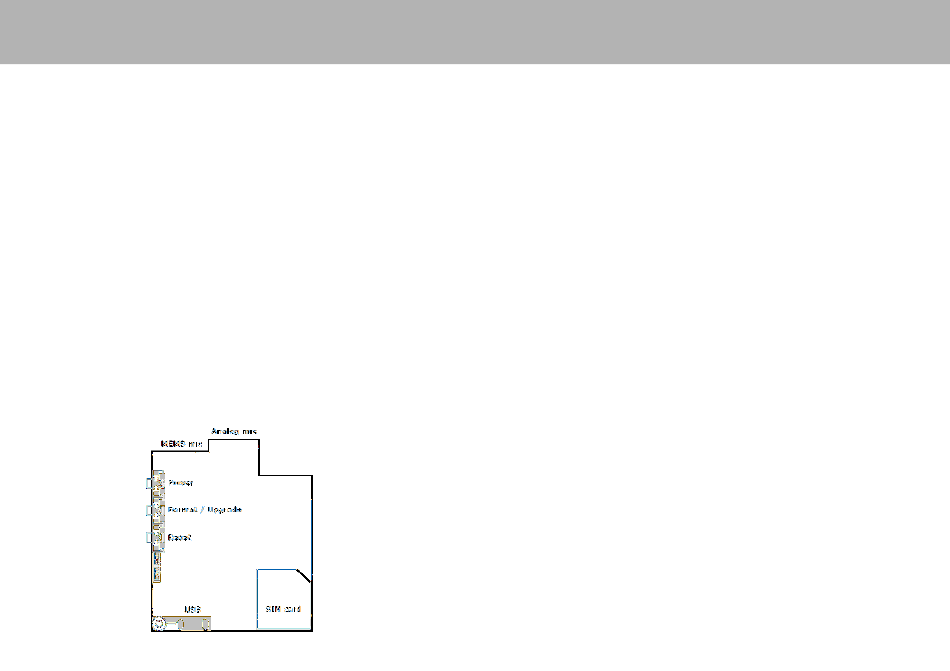

Z95 drawing
Charging
To use the device for the first time or not using it for a long time, please fully charge the
battery for at least 4 hours and sync the time by using the Audio Ftp Widget (see section
"PC Configuration Tool"). You can charge the device through the USB port of your computer,
powerbank, 5V DC adapter or car charger.
To charge the battery through USB port, connect the USB cable to the USB port of the
computer and the device. For details, please see the status below. The device will function
as a mass storage device, you will not be able to record audio at this moment.
When charging the battery through powerbank, DC adapter or car charger, you will be able
to record audio while charging.
Recording
The Power key is located by the side of the device. It can turn the device on or off.
Start Recording
Press and hold the Power key for approximately 2 seconds until the green LED is on, and
then release the key. When you see the green LED flashing, the device is recording.
Otherwise, please see the status below.
Stop Recording
Press and hold the Power key for approximately 3 seconds until the red LED is flashing, then
release the key. After a while all the light will be off and it is powered off.
If the device hangs, please press the RESET key for 1 second to reset it. The time
will be lost. Please use the Audio Ftp Widget to sync the time again.
Status
Without external charger
Green on: device is booting up
Green fast flashing: normal recording
Green and Red slow flashing at the same time: uploading file to server
Green and Red slow flashing alternatively: SIM card error or upload to server fail
Green and Red fast flashing: battery low
All LED off: device is off, or in voice-trigger standby mode, or not in recording time slot
Connecting to an external charger
Green and Red steady on: charging but no recording
Green on: device is booting up
Green and Red fast flashing at the same time: charging and recording
Green and Red slow flashing at the same time: uploading file to server
Red slow flashing: SIM card error or upload to server fail
Green steady on: charging completed but no recording
Green steady on and Red fast flashing: battery fail
All LED off: device is in voice-trigger standby mode, or not in recording time slot
Connecting to computer
Green and Red steady on: charging
Green steady on: charging completed
Usage
1. Fully charge the device and insert a 4G SIM card with data service, or a 4G VoLTE-
enabled SIM card with data service if you need to call in for real-time listening, please see
the orientation of the card on the Z95 drawing
2. Download and install the Audio Ftp Widget software on Windows or Mac. Please turn off
the anti-virus and firewall for a while before downloading. The file is safe but some anti-virus
programs do not white-list it
3. Sync the time, change the setting and configure the scheduled time slot if needed
4. Enter the ftp server information
