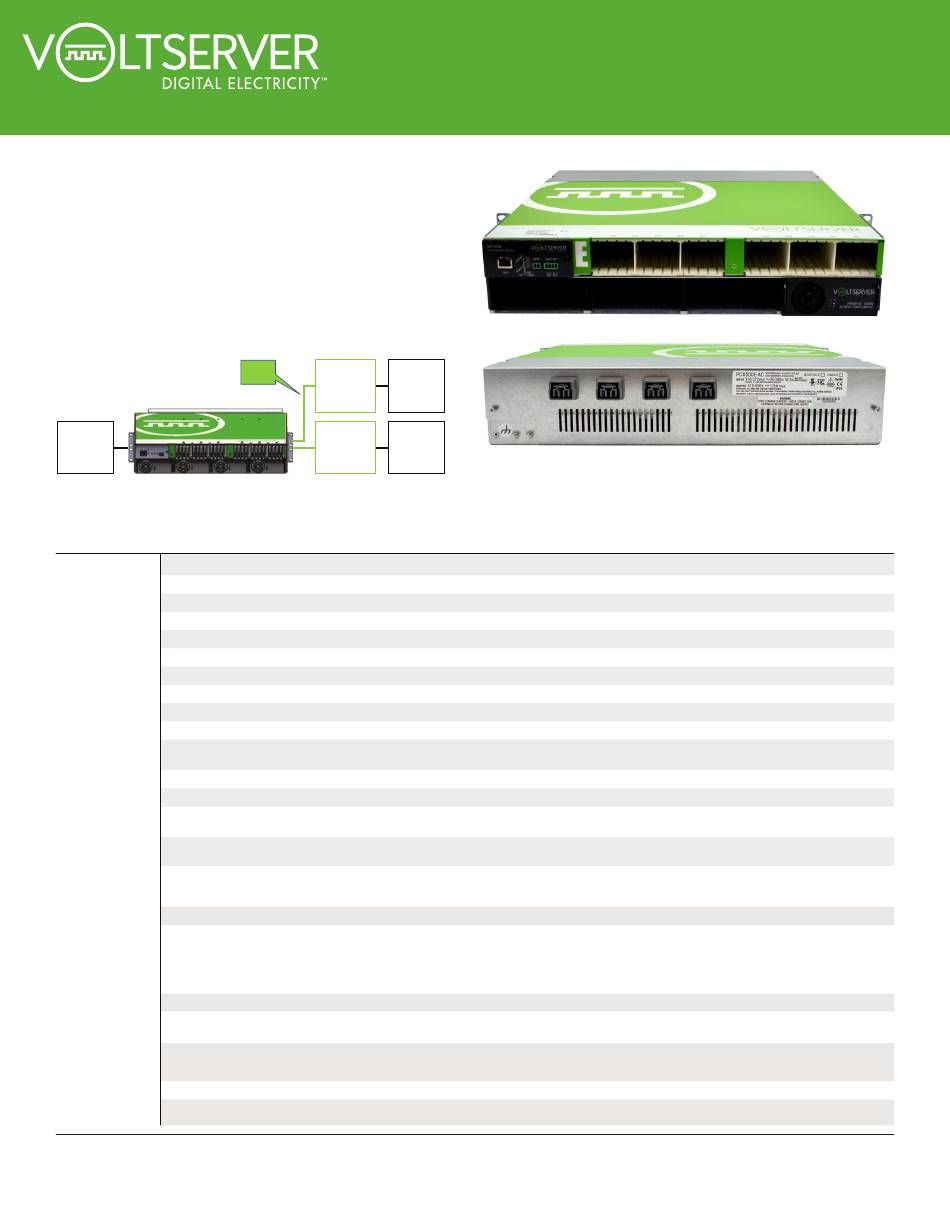

VOLTSERVER PCX500E-AC Quick Start Manual

Digital electricity transmitter, 12kw, ac input

Advertisement

Quick Links

The PCX500E-AC Transmitter is a component in a Digital
Electricity™ line powering system. When paired with a
VoltServer receiver unit, a Digital Electricity™ (DE) system is
formed (see diagram). If a fault occurs on the DE line between
the transmitter and receiver (such as a person contacting the
conductors or a loose connection) power is disconnected;
preventing fire, equipment damage and personal injury. The
PCX500E-AC is a Listed product, certified to safety and EMC
standards by a Nationally Recognized Testing Laboratory.
AC Input
Power
Source
PCX500E-AC Transmitter
Digital Electricity™ is a Limited Power Source per IEC/UL/CAN 62368-1 suitable for supplying a Class 2 circuit under NEC
Art. 725 and CEC Rule 16-200 (Note: Always follow local codes).
TYPE
PARAMETER
Input
Voltage
Max Current per Shelf
Output
Voltage
Total Power per shelf
Number of Output Channels
Max Current per Channel
Max Distance
Cable Capacitance
Environment
Access Location
Operating Temperature
Altitude
Humidity
Mechanical
Dimensions
Weight
Acoustic Noise
Approvals
Safety
EMC
Others
Communication/
Ethernet
Signals
Dry Contact Alarm Output
Dry Contact Alarm Input
Box Contents
Hardware Kit
Rev N
DE
Digital
Cable
Load
Electricity
Device(s)
Receiver
Digital
Load
Electricity
Device(s)
Receiver
Specifications
SPECIFICATION
110 - 277 Vac
16 A RMS per power module
315-350 Vdc (336 Vdc Nominal)
Up to 12 kW
Up to 24 Transmitter Cards
Up to 3.0 A
Contact VoltServer
20-40 pF/ft (60-120pF/m)
Operator Accessible
-20 °C (-4 °F) to 50 °C (122 °F)
Up to 2000m
5 to 95% Non-condensing
[See page 2]
43 lbs (19.55 kg)
< 40dBA @ T
ambient
< 58dBA @ T
ambient
UL/IEC/CSA 62368-1
FCC Part 15 Subpart B Class A
ICES-003 Class A
EN 55032 (CISPR 32) Class A
EN 300 386
EN 50121-4
CE, RoHS
RJ45, 10/100Mbps
1x Normally Open (NO)
1x Normally Closed (NC)
[See page 3]
Customer Support: support@voltserver.com | 888-622-8658, Option 1
VoltServer Inc. | www.voltserver.com | contact@voltserver.com
PCX500E-AC Quick Start Guide
Digital Electricity Transmitter, 12kW, AC Input
PCX500E-AC-01 Front View
PCX500E-AC-01 Rear View
NOTES
For full power operation, input voltage must be 208 Vac or greater
Minimum circuit breaker size is 20 A per input connection
Digital Electricity output
Use design rules for calculating delivered power
Requires operation in a conditioned environment to ensure reliable
operation
Fits 19" (482.6mm) racks
Fully populated
< 25 °C
At nominal input and full load
> 40 °C
Remote monitoring and control via web GUI, SNMP v2c
Can support alarm circuitry with maximum steady state current of 500
mA at 25 °C.
1 of 15

Advertisement

loading
Need help?

Need help?

Do you have a question about the PCX500E-AC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for VOLTSERVER PCX500E-AC

  • Page 1 (such as a person contacting the conductors or a loose connection) power is disconnected; preventing fire, equipment damage and personal injury. The PCX500E-AC is a Listed product, certified to safety and EMC standards by a Nationally Recognized Testing Laboratory. PCX500E-AC-01 Front View...
  • Page 2: Detailed Dimensions

    2X, 1.25 in 3.49 in (88.52 mm) 2X, .50 in 476.59 mm 18.76 in REAR 137.53 mm 5.41 in 449.35 mm 17.69 in Customer Support: support@voltserver.com | 888-622-8658, Option 1 Rev N 2 of 15 VoltServer Inc. | www.voltserver.com | contact@voltserver.com...
  • Page 3 PCX500E-AC Quick Start Guide Rear Cover Options The PCX500E-AC is available in two (2) versions. Both options have the same specifications defined on page 1. PCX500E-AC-01: PLUG VERSION. Rear cover with four PCX500E-AC-02: CONDUIT VERSION. Rear cover with Anderson Saf-D-Grid ©...
  • Page 4 Le calibre de fil minimum à utiliser avec les émetteurs VoltServer manual, may cause harmful interference to radio GEN2 est constitué de conducteurs en cuivre de 20 AWG. La communications.
  • Page 5 PCX500E-AC for each source. NOTE For PCX500E-AC-01, the plug/appliance coupler functions as a disconnect device. Ensure that the AC input socket/outlet is readily accessible. Customer Support: support@voltserver.com | 888-622-8658, Option 1 Rev N 5 of 15 VoltServer Inc. | www.voltserver.com | contact@voltserver.com...
  • Page 6: Installation Instructions

    Caution: Ensure source power is disconnected/de-energized prior to making connections. The means of input power connection varies depending on the product and rear cover option. The PCX500E-AC requires one connection to the AC power mains per each PM500-AC module used in the design. The AC input connections are single phase or “bi-phase”...
  • Page 7 All PCX500E-AC transmitter units must have a protective earth grounding connection to a recognized earth ground connection for operational safety. The protective earth ground connection is bonded to the rear of the PCX500E-AC chassis using the double hole lug and self-locking nuts provided in the hardware kit for this purpose. The equipment ground conductors from AC mains power sources are separate connections and described in the following sections.
  • Page 8 Installation Instructions (cont.) PM500-AC Power Module Installation Up to four PM500-AC modules may be installed in the PCX500E-AC Transmitter. PM500-AC modules require their respective slots to be wired in order to function. All PM500 Power Modules may be “hot swapped” for in-service maintenance purposes.
  • Page 9 When driving multiple pairs to a Factory Reset Button VoltServer receiver, all TX550 transmitters driving those pairs MUST be from the same PCX500E-AC shelf and in Hold for 5 seconds to reset the software settings to adjacent slots.
  • Page 10 Limit and Nominal Current Limit parameters must 3. Max Current Limit – maximum current that can be handled by the LEDs in the application. The be configured using the VoltServer Lighting GUI PCX500E-AC-01-CEA unit will never allow the (contact VoltServer for GUI documentation).
  • Page 11: Software Instructions

    After network settings are saved, the browser will redirect to the new IP address or hostname after settings are applied. In most cases it will be necessary to login to the web UI again after the redirect. Customer Support: support@voltserver.com | 888-622-8658, Option 1 Rev N 11 of 15 VoltServer Inc.
  • Page 12: System Wiring Diagrams

    For reference only, refer to venue package for exact installation details Wiring Diagram without Overvoltage Protection (OVP) Wiring Diagram with Overvoltage Protection (OVP) Receiver PCX500E Transmitter Customer Support: support@voltserver.com | 888-622-8658, Option 1 Rev N 12 of 15 VoltServer Inc. | www.voltserver.com | contact@voltserver.com...
  • Page 13 Blue - 0.5 sec. period 20 seconds Factory reset in progress Blue - heartbeat Until reboot Software is in “Recovery Mode” - contact VoltServer Red - solid Until reboot Fault Transmitter Card (TX550-01) LED Troubleshooting Guide There are two status LED’s on each TX550-01 Transmitter card located above the 4 pin output connector; the upper LED is dual color RED/GREEN while the lower LED is BLUE.
  • Page 14: Fault Codes

    • Check input voltages • Contact VoltServer Transmitter card detects internal hardware fault 9 Red Blinks Internal Failure • Replace transmitter • Contact VoltServer Customer Support: support@voltserver.com | 888-622-8658, Option 1 Rev N 14 of 15 VoltServer Inc. | www.voltserver.com | contact@voltserver.com...
  • Page 15: Document Revision History

    Updated warnings to include French translations and FCC statement. Corrected TX500 to TX550 in LED Troubleshooting Guide. Added general statement about login password. Customer Support: support@voltserver.com | 888-622-8658, Option 1 Rev N 15 of 15 VoltServer Inc. | www.voltserver.com | contact@voltserver.com...
