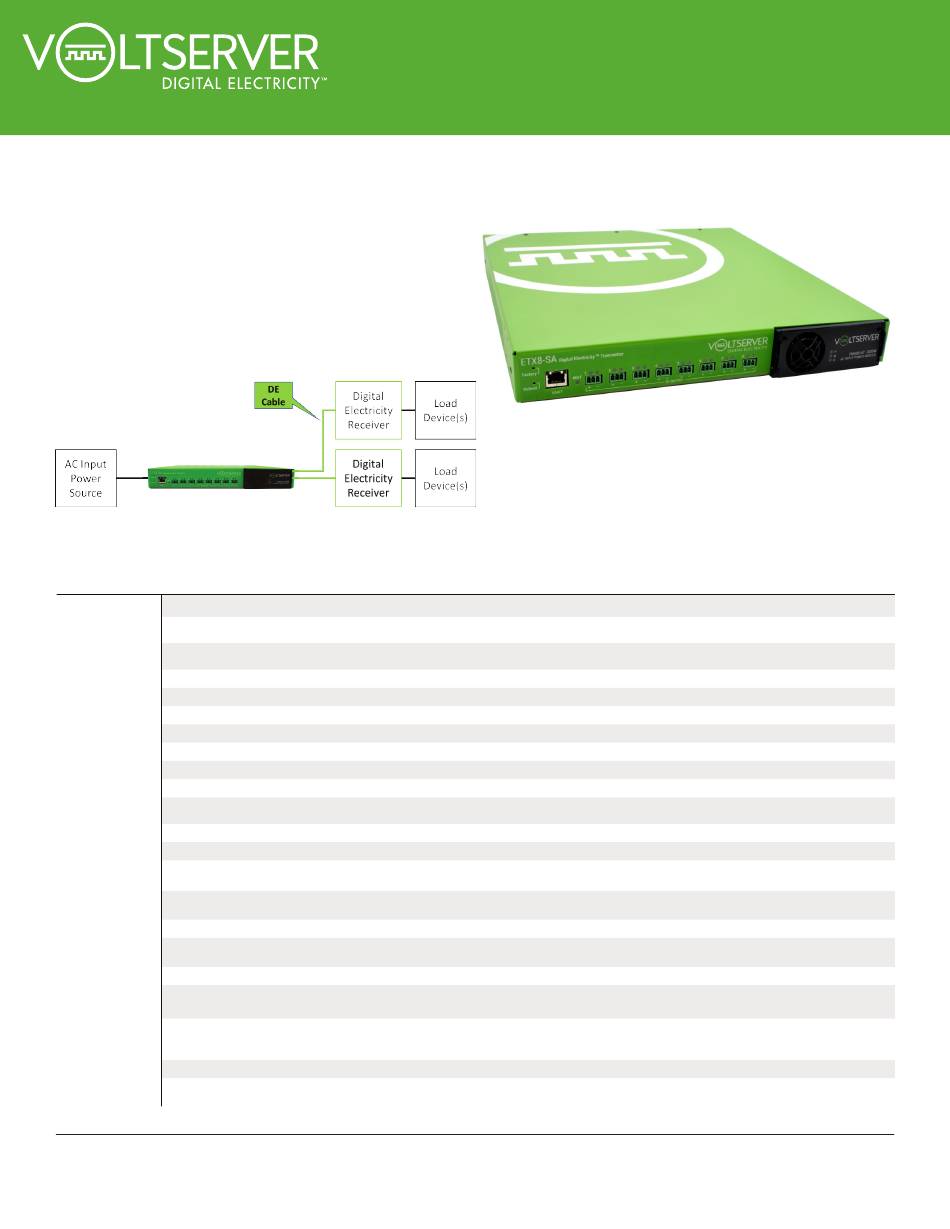

VOLTSERVER Digital Electricity ETX8-SA Quick Start Manual

The ETX8-SA Transmitter is a component in a Digital
Electricity™ line powering system. When paired with a
VoltServer receiver unit, a Digital Electricity™ (DE) system
is formed (see diagram). If a fault occurs on the DE line
between the transmitter and receiver (such as a person
contacting the conductors or a loose connection) power
is disconnected; preventing fire, equipment damage and
personal injury. The ETX8-SA is a listed product, certified
to safety and EMC standards by a Nationally Recognized
Test Laboratory.
ETX8-SA Transmitter
Digital Electricity™ is a Limited Power Source per IEC/UL/CAN 62368-1 suitable for supplying a Class 2 circuit under NEC
Art. 725 and CEC Rule 16-200 (Note: Always follow local codes).
TYPE PARAMETER
Input Voltage
Max Current
Output Voltage
Total Power
Number of Output Channels
Max Current per Channel
Max Distance
Cable Capacitance
Environment Access Location
Operating Temperature
Altitude
Humidity
Mechanical Dimensions
Weight
Approvals Safety
EMC
Others
Communication/
Ethernet
Signals
Dry Contact Alarm Output
Dry Contact Alarm Input
Box Contents Hardware Kit
Rev C
Digital Electricity™ Transmitter, 3kW, AC Input
Specifications
SPECIFICATION
100 - 250 VAC (ETX8-SA)
100 - 277 VAC (ETX8-SA-277)
16 A RMS @ 120 VRMS
15 A RMS @ 208 VRMS
315-350 V (336 V Nominal)
Up to 3kW
8
1.8A
Contact VoltServer
20-40 pF/ft (60-120pF/m)
Operator Accessible
-20°C (-4°F) to 50°C (122°F)
Up to 2000m
5 to 95% Non-condensing
[See page 2]
11.5lbs (5.22kg)
IEC 62368-1
EN 55032 (CISPR 32) - Class A,
FCC Part 15B - Class A,
CE, RoHS
RJ45, 10/100Mbps
1x Normally Open (NO)
1x Normally Closed (NC)
[See page 3]
Customer Support: support@voltserver.com | 888-622-8658, Option 1
VoltServer Inc. | www.voltserver.com | contact@voltserver.com
ETX8-SA and ETX8-SA-277
ETX8-SA
NOTES
For full power operation, input voltage must be 208VAC or greater
Minimum circuit breaker size is 20A per input connection
Digital Electricity™ output
For full power operation, input voltage must be 208VAC or greater
Use design rules for calculating delivered power
Requires operation in a conditioned environment to ensure reliable
operation
Fits 19" (482.6mm) racks
Remote monitoring and control via web GUI, SNMP v2c
Can support alarm circuitry with maximum steady state current of 500mA
at 25°C.
