Snap One ACCESS NETWORKS A650 Quick Start Manual

A650 Access Point
Scan for Unleashed Set-Up Documentation
snp1.co/unleashed
snp1.co/unleashed
A650 Access Point
Scan for ARCC Cloud-Based Controller
Set-Up Documentation
snp1.co/ARCC
snp1.co/arcc
Page 1 of 3
Technical Support
For All Partners:
Email: support-case@accessnetworks.com
For Snap One Partners:
Visit snp1.co/techsupport
Access Networks Partners:
Visit my.accessnetworks.com/partners/ and open a case.
Warranty and Other Legal Notices
Find the details of the product's Limited Warranty on the
support tab for each Access Point model on
my.accessnetworks.com or snapav.com.

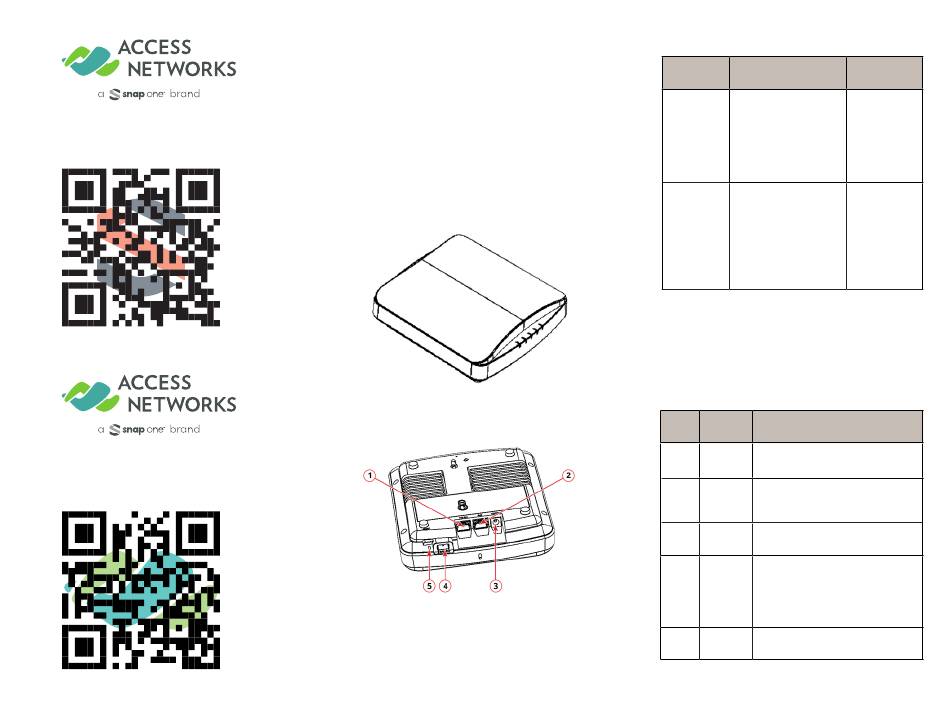

FIGURE 1 A650 Access Point: Top View
FIGURE 2 A650 AP Ports on Bottom Panel
TABLE 1 A650 Power
Power Operating
Supply Characteristics
• 2.4GHz radio: 2x2,
19dBm per chain
• 5GHz radio: 2x4, 20dBm
802.3af PoE per chain
• 2nd Ethernet port,
on board IoT & USB
disabled
• Full Functionality
• 2.4GHz radio: 2x2, 23
dBm per chain
• 5GHz radio: 4x4, 22
802.3at PoE+
dBm per chain
• 2nd Ethernet Port,
on board IoT & USB
Enabled (3W)
TABLE 2 A650 AP Ports
No. Label Description
10/100/1000 Mbps port: RJ-45
1 1G ETH
Ethernet port (non-PoE)
100/1000/2500 Mbps PoE In Port: RJ-
2.5G ETH
2 45 Ethernet port (supports 802.3af/
PoE
at PoE)
48 V
3 48V DC input
0.75A
USB Port
• Maximum Dimensions: 6 cm x
4 USB 2 cm x 1.1 cm
• Interface: USB 2.0
• Connector: USB – Type-A plug
Reset
5 Resets the AP
Switch
Copyright ©2023, Snap One, LLC. All rights reserved.
Published March 2023 Part Number 800-72206-202 Rev A
Max Power
Consumption
PoE: 12.25W
PoE+: 21.59W
DC Power:
21.46W
