Snap One Araknis Networks Quick Start Manual

Wi-fi 6 wireless access point
Hide thumbs

Advertisement

Quick Links

Download this manual

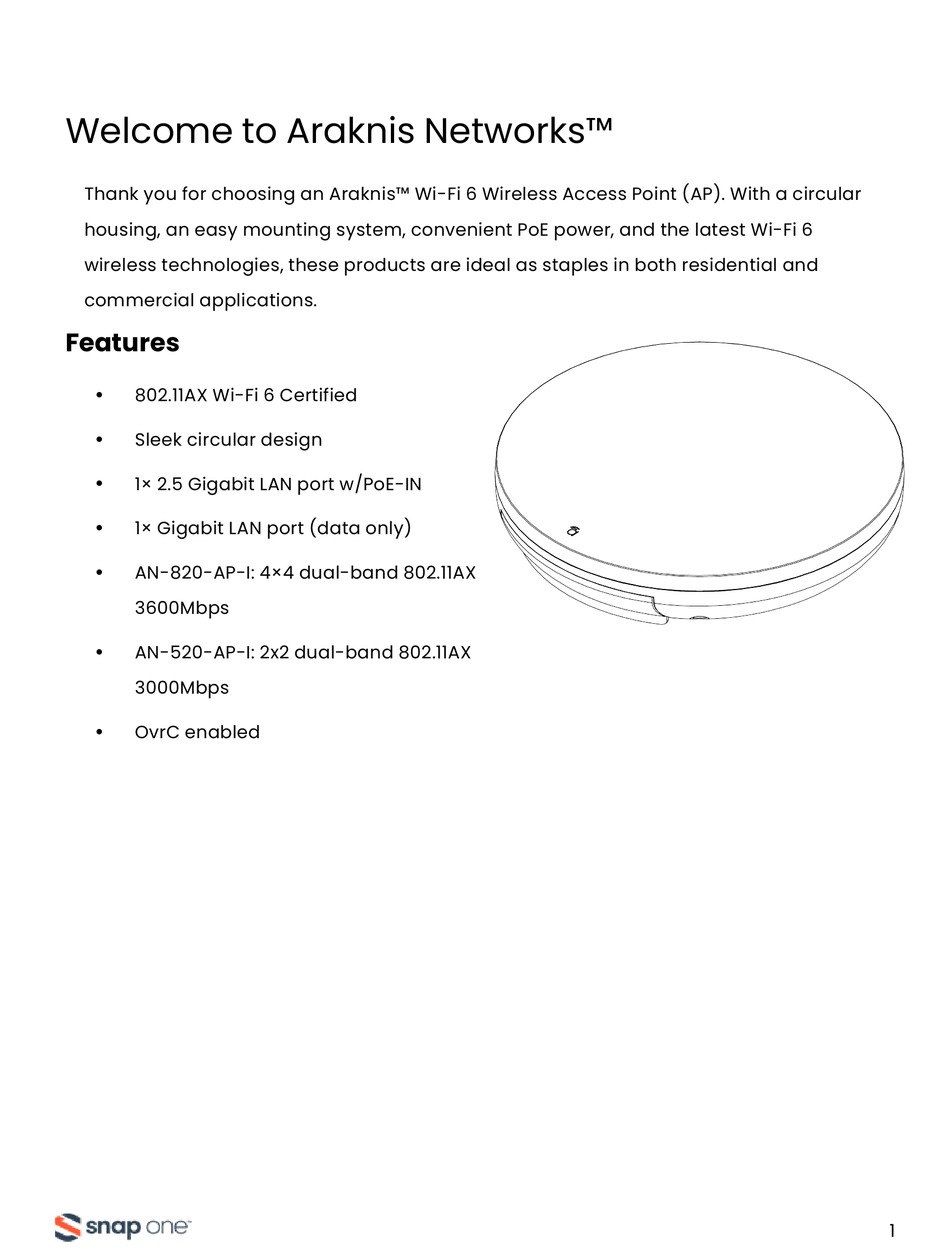

Welcome to Araknis Networks™
Thank you for choosing an Araknis™ Wi-Fi 6 Wireless Access Point (AP). With a circular
housing, an easy mounting system, convenient PoE power, and the latest Wi-Fi 6
wireless technologies, these products are ideal as staples in both residential and
commercial applications.
Features

802.11AX Wi-Fi 6 Certified
l

Sleek circular design
l

1× 2.5 Gigabit LAN port w/PoE-IN
l

1× Gigabit LAN port (data only)
l

AN-820-AP-I: 4×4 dual-band 802.11AX
l
3600Mbps

AN-520-AP-I: 2x2 dual-band 802.11AX
l
3000Mbps

OvrC enabled
l
1
