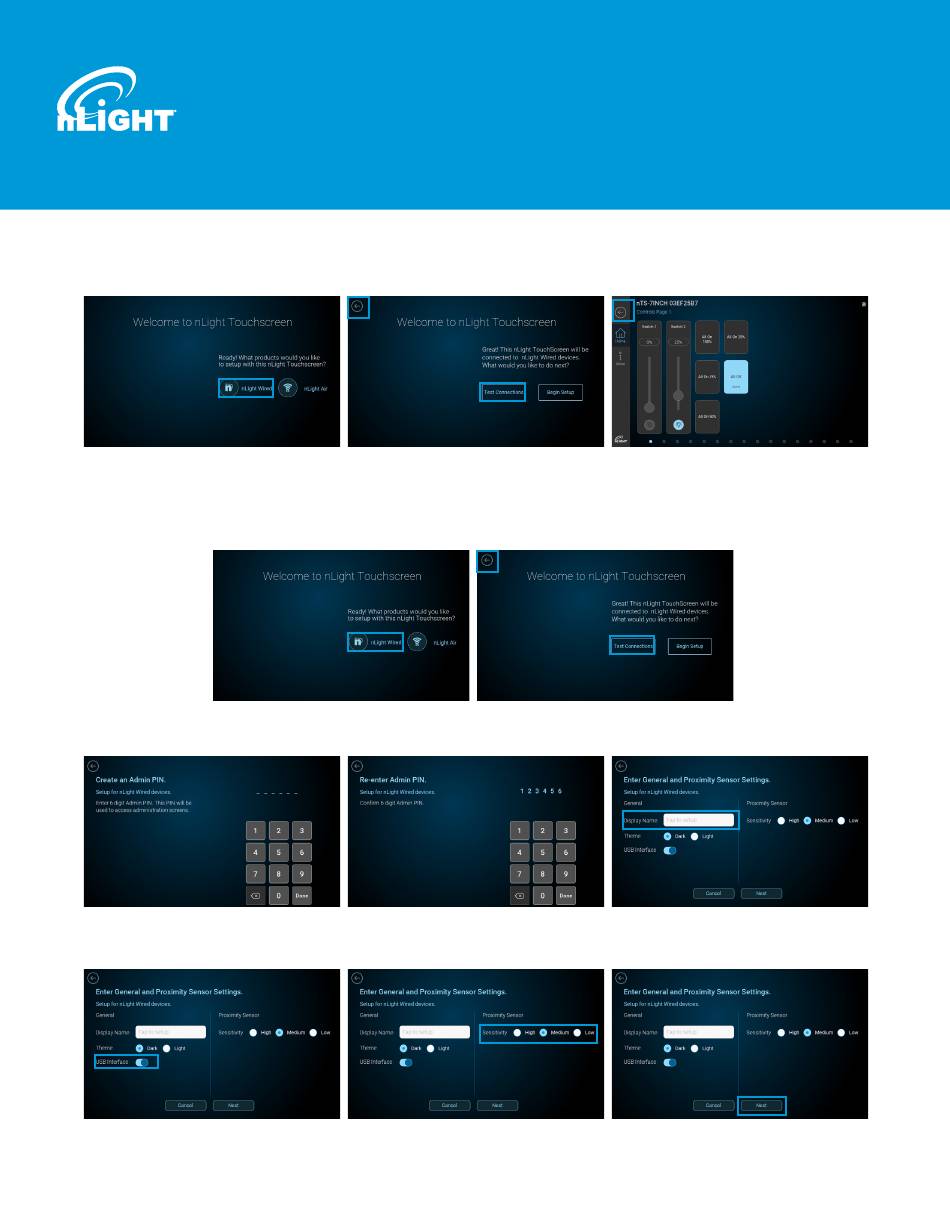

Out-of-Box Switch Control - nLight Wired
Users can immediately gain access to controlling lights through navigating the "nLight Wired" button followed by the "Test Connections"
button. From this mode, default scenes are available and individual channels can be controlled from Controls Page 1 on the dashboard.
1. Tap the "nLight Wired" button.
3. Create the Administrator PIN.
6. Enable USB Interface.
nTS Touchscreen
Quick Start Guide
Initial Configuration - nLight Wired
4. Reenter the Administrator PIN.
8. Adjust Proximity Sensor Sensitivity.
2. Tap the "Begin Setup" button to begin
device configuration.
5. If desired, Enter a Display Name.
9.Tap the "Next" Button
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Acuity Brands nLight nTS
Summary of Contents for Acuity Brands nLight nTS
- Page 1 nTS Touchscreen Quick Start Guide Out-of-Box Switch Control - nLight Wired Users can immediately gain access to controlling lights through navigating the “nLight Wired” button followed by the “Test Connections” button. From this mode, default scenes are available and individual channels can be controlled from Controls Page 1 on the dashboard. Initial Configuration - nLight Wired 1.
-
Page 2: Creating A Scene
10. From the dashboard swiping left and right 11. Navigate across available menus Scenes, Switches, Configure, and About by using the will allow for navigation between the different icons along the left side of the screen. Controls Pages. Creating a Scene 1. - Page 3 Creating a Switch - nLight Wired 1. Administrator access is required to create switches. Login is done by selecting the Configure menu. Upon completion of logging in, returnto the Switches Menu. 2. Tap “+ Create Switch” or press-and-hold 3. Enter the name of the new switch. 4.
- Page 4 Modifying the Dashboard 1. Administrator access is required to access configuration. Login is done by selecting the Configure menu. 2. On the General Tab: Display Name can be 3. On the Display Tab: Screen Brightness, Screen 4. On the Security Tab: Admin PIN and modified, Mode Icon can be toggled,...
- Page 5 ™ please reference the CLAIRITY + User Guide. Additional programming ™ information is located in the SensorView Programming Guide. 1 Acuity Way, Decatur GA 30035 | 1-800-705-SERV (7378) | www.acuitybrands.com ©2025 Acuity Brands Lighting, Inc. All rights reserved. | NL_2238300_0325...
