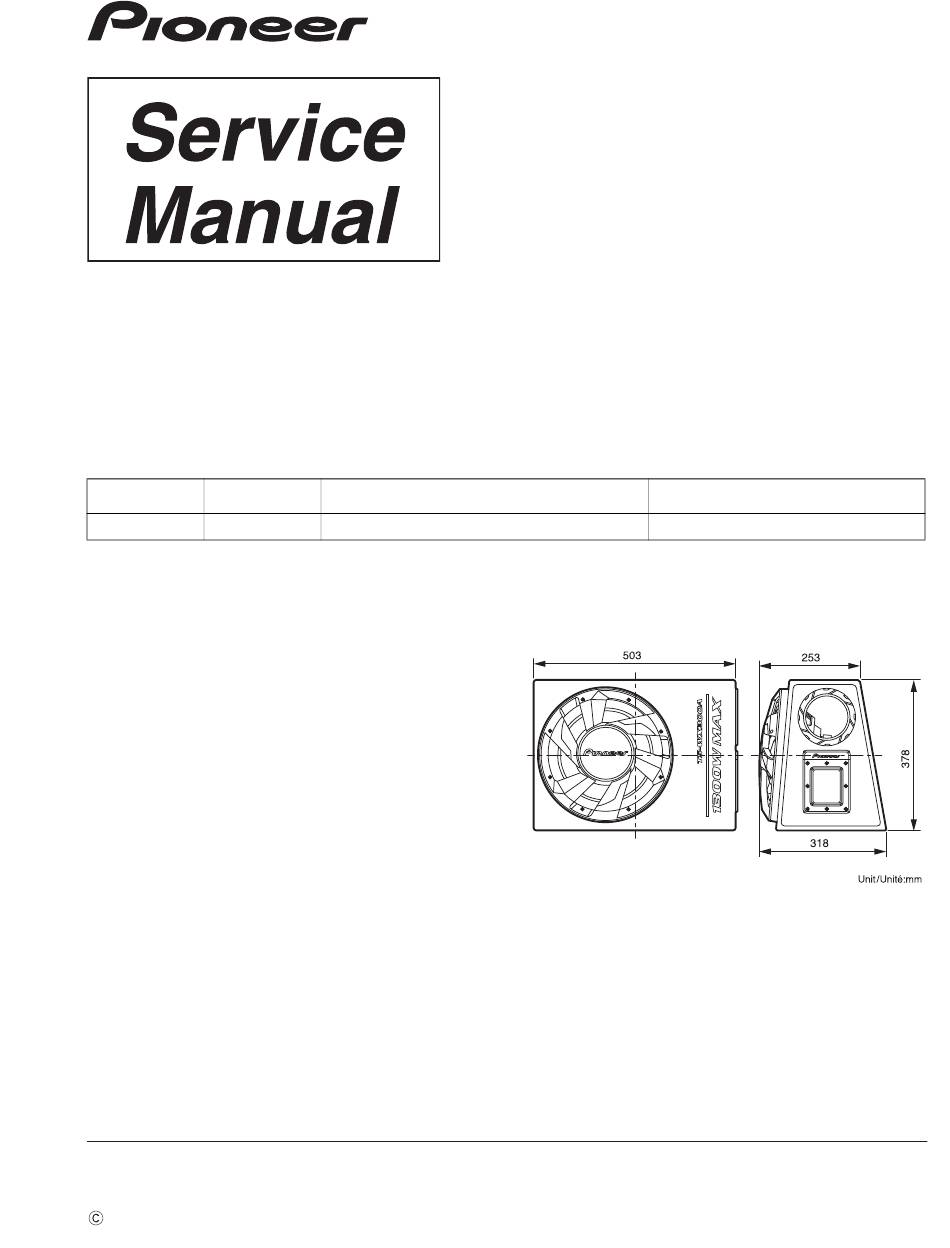

Pioneer TS-WX300A Service Manual
Pioneer TS-WX300A Service Manual

Pioneer TS-WX300A Service Manual

Advertisement

ACTIVE SUBWOOFER
TS-WX300A
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model
Type
TS-WX300A
XCNEL5
1. SPECIFICATIONS
· Maximum music power.......................................................1300 W
· Nominal power......................................................................350 W
· Speaker specifications
Size................................................................................... φ30 cm
· Amplifier
Input level (at Gain Max)
(RCA).............................. 100 mV+100 mV/22 kΩ
(Speaker line) .................................. 2 V+2 V/5 kΩ
Power source................... DC 14.4 V (10.8 V to 15.1 V allowable)
Max. current consumption .....................................................13 A
Grounding........................................................... Negative ground
· Speaker system.....................................................Bass reflex type
· Frequency response...............................20 Hz to 130 Hz (–20 dB)
· Sensitivity (In car, input : 2 V) ................................113 dB ±1.5 dB
· Size...................................503 mm (W)×318 mm (D)×378 mm (H)
· Weight (including accessory parts)..................................... 10.3 kg
· Gross weight (including packaging).................................... 11.9 kg
Note:
Specifications and the design are subject to possible modification
without notice due to improvements.
PIONEER CORPORATION
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 2 Jalan Kilang Barat, #07-01, Singapore 159346
PIONEER CORPORATION 2017
Power Requirement
—————
28-8, Honkomagome 2-chome, Bunkyo-ku, Tokyo 113-0021, Japan
TS-WX300A
% Figure of Measurement
ORDER NO.
CRT6205
Remarks
K-ZZZ NOV. 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS-WX300A and is the answer not in the manual?

Questions and answers

Summary of Contents for Pioneer TS-WX300A

  • Page 1 PIONEER CORPORATION 28-8, Honkomagome 2-chome, Bunkyo-ku, Tokyo 113-0021, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 2 Jalan Kilang Barat, #07-01, Singapore 159346 PIONEER CORPORATION 2017 K-ZZZ NOV.
  • Page 2: Exploded Views And Parts List

    Description Part No. Remarks 1 Woofer 02.SA200010 6 Grille 01.E9500359 2 AMP Unit 02.P0030037 7 Packing 01.P0500169 3 Cabinet 01.P0102045 8 Packing 01.P0500171 4 Port Duct 01.P2500080 9 Packing 01.P0500172 5 Port 01.P2500081 10 Screw 01.E8200325 11 Screw 01.E8200665 TS-WX300A...
  • Page 3 Remarks 1 Bracket 01.E6600011 2 Screw 01.E8200666 3 Cord (0.2 m) 01.45-18500-A01 4 Cord (4.8 m) 01.45-18500-101 Operating Instructions 01.E91B1169 Warranty CRY1376 " PACKING SECTION PARTS LIST Mark Description Part No. Remarks Packing Case 01.E9102506 Protector 01.E9130341 Protector 01.E9130342 TS-WX300A...
  • Page 4: Schematic Diagram

    3. SCHEMATIC DIAGRAM AMP UNIT (02.P0030037) When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation.
  • Page 5 AMP UNIT (02.P0030037) SVCC +VCC +PVCC R242 390PF/50V 1nF/50V SIP12 100UF/25V +VCC +VCC1 0.01R SP Output DC Detection 1nF/50V 1uF/50V 10V1 C104 C149 R114 R115 R116 22uF R265 10V1 C175 AGND2 PGND 1nF/50V IN4148 100UF/25V LOWESR AGND2 R138 AGND2 AGND2 AGND2 AGND2 1.8K...
  • Page 6: Pcb Connection Diagram

    2. View point of PCB diagrams. Connector Capacitor 1. The parts mounted on this PCB include all necessary parts for several destinations. SIDE A For further information for respective destinations, be sure to check with the WOOFER schematic diagram. SIDE B P.C.Board Chip Part TS-WX300A...
  • Page 7: Pcb Parts List

    01.44-ZZFH0-051 C 62,64,109 CEAT100M25 CONNECTOR 01.44-ZZPH0-051 C 3,35,42,53,162,169 CEAT101M25 PACKING 01.P0500168 C 98,99,107,187 CEAT1R0M50 SCREW 01.E8200219-1 C 15,25 CEAT221M25 SCREW 01.E8200596 CE 1-3 CEAT332M25 SCREW 01.E8200614 C 45,49,96 CEAT470M25 C 9,18,37,40,59,60,63,89 CKSQYB103J25 RESISTORS C 4-7,13,14,17,19,22,24,28,29,34,36,38 CKSQYB104J25 VR 1 01.32-120K2-131 TS-WX300A...
  • Page 8 C 43,44,46-48,51,52,54,57,66,85,88,90 CKSQYB104J25 C 122,126,133,161,163-166,175,188 CKSQYB104J25 C 8,74,79 CKSQYB105K50 C 12,84 CKSQYB106K25 C 58 CKSQYB227K16 C 125 CKSQYB471J50 C 80,81 CKSQYB473K50 C 20,23 CKSQYB475K25 C 134-137 CKSQYB682J25 C 82,83 CKSYB103J25 C 21,39,50 CKSYB104K2A C 67 CKSYB106K25 C 129,130 CKSYB475K25 TS-WX300A...
