Summary of Contents for dedalo pixel

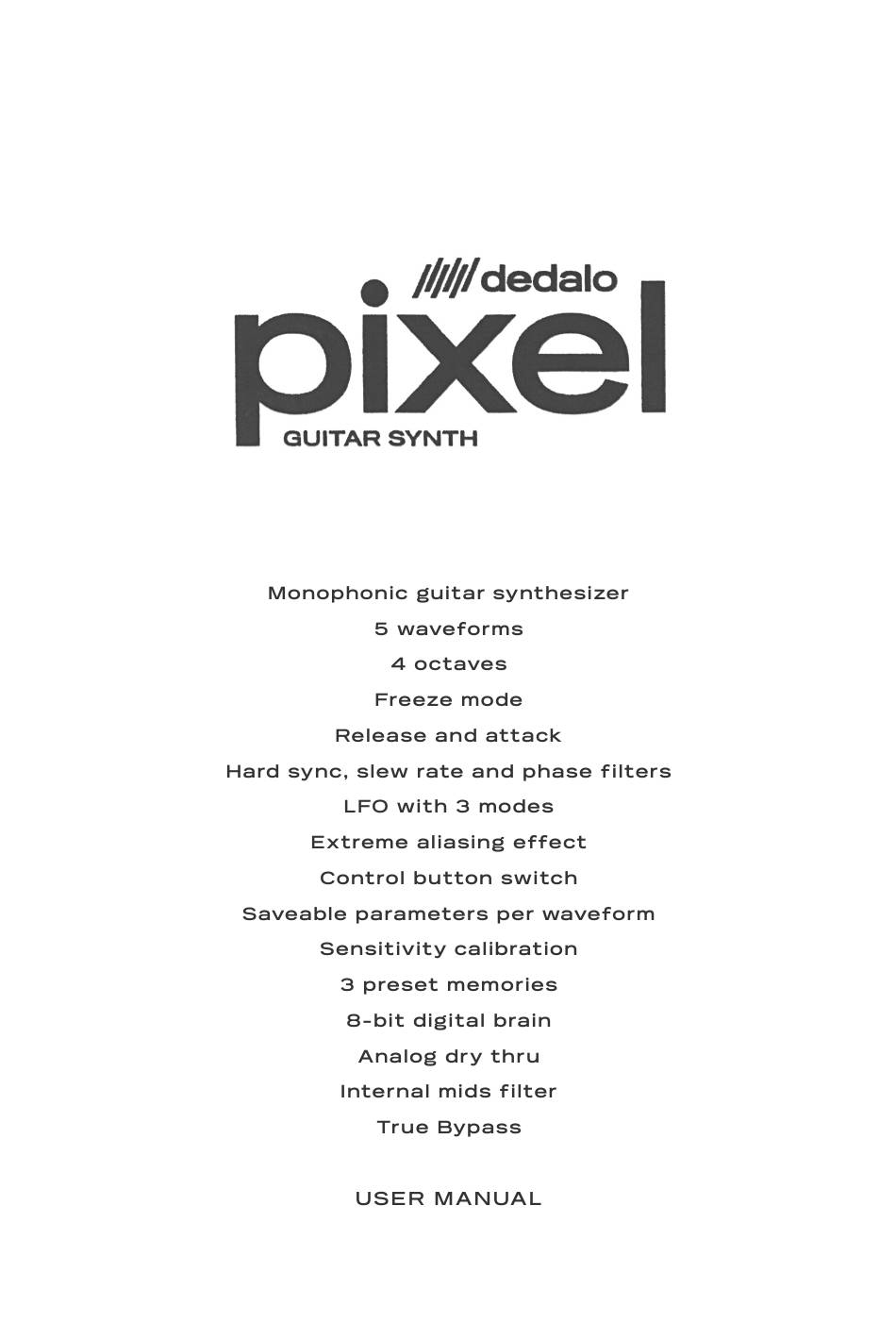

- Page 1 P IX 3 - 2 1/ 11/ 2 02 2...
- Page 2 The Pixel turns your guitar into an 8-bit monophonic synthesizer. Get out of the basic box of sounds, changing your guitar tone at its core and turning it into interesting waveforms, which you can filter and modulate to your liking. Thanks to Freeze modes and Blend control, the pedal can play along with you, generating drones or following your notes.
- Page 3 01 - LEVEL Volume of the synthesized signal. 02 - BLEND Volume of the clean signal that is added in parallel with the effect. 03 - WAVE Select one of the five synthesized waveforms, or the Digital Input: Triangle, Square, M shape, Sawtooth, Inverted Sawtooth.
- Page 4 The Pixel 3 has the ability of "freezing" tones by a command of the player on the CONTROL button. Whatever sound the synth is generating, will keep playing until a new freeze action is commanded.
- Page 5 ALIASING knob: Sensitivity how loud must be the note played, to be detected by the pedal. Less sensitivity means also less sustain, as the guitar note decays below the threshold, but may help to avoid artifacts at the end of the notes and enhance the start of the synthesized tones. * Alternate function with CONTROL button pressed: Frequency limit the lower frequency that the detector will try to detect.
- Page 6 - Unison + Unison (only makes sense when LFO is set to Phase) - Octave Up + Unison ATTACK time is set in any of the modes, by keeping the CONTROL pressed and adjusting the side trimpot. ALIASING knob: LFO Speed easy - the speed of the modulating Low Frequency Oscillator * Alternate function with CONTROL button pressed: LFO Depth...
- Page 7 The Pixel 3 comes with 3 slots of preset memory where the sounds and pedal settings are stored. Preset0 and Preset1 are read-only, and correspond to the Factory and Reset sounds. So you are free to make any changes in the waveforms, knowing that the initial settings can be easily restored.
- Page 8 • Failures due to accident or misuse are not covered in the warranty. • DEDALO is not responsible for any loss or damage the user may suffer as a result of using the pedal. • Power adapter not included in the warranty.
- Page 9 Tech n i ca l sp ecif ica tion s M od el 2 022 – P IX - 3 Tr ue Byp as s In p ut i mp ed an ce: 700Ko h m P o w er s up p l y: DC 9 v cen t er n eg ati v e (min i mum 100mA ) P o w er co n s ump t io n : 8 0mA at 9 v D C D imen s io n s : 12 cm x 9 .4c m x 5 .4cm Wei g h t : 475 g r...
