Traxxas Pro Scale Sand Car Installation Instructions

LED Light Bar Kit Installation Instructions
Kit contents:
• High-voltage power amplifier
• Front LED light bar
• Rear LED light bar
• Rear LED light bar mounts (left & right)
• Side Pod LED lights (left & right)
• Extension harness (long)
• Extension harness (short)
• Body cage mount cover
• Power amplifier chassis mount
• Extension harness cover
• 2-in-1 wire harness (2)
1A
2
4859
3x10mm FCS

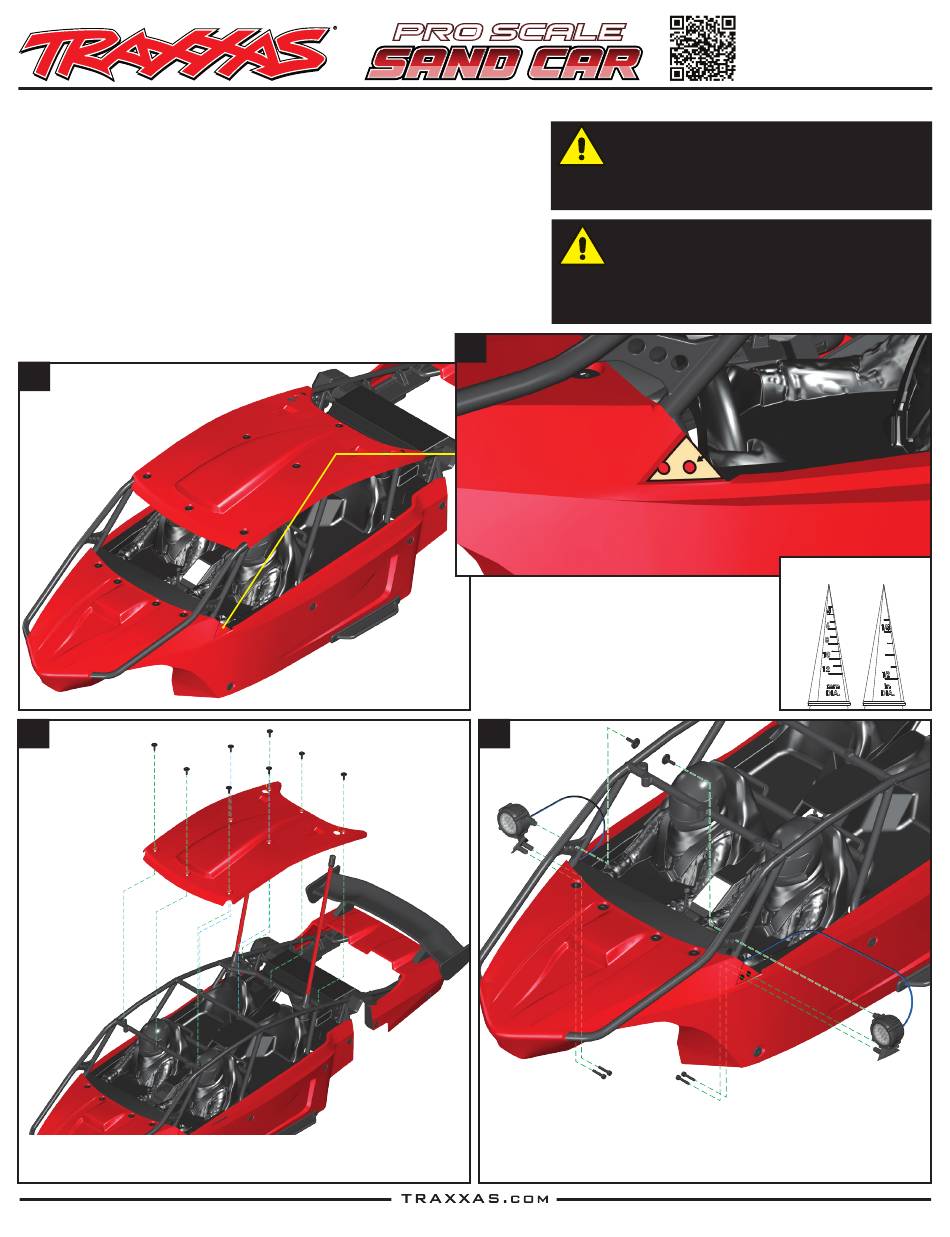

Remove the eight 3x10mm flat-head cap screws to remove the
vehicle roof. Retain the screws for reinstallation.
Traxxas, 6250 Traxxas Way, McKinney, TX 75070, Phone: 972-549-3000, Fax: 972-549-3011, e-mail: support@Traxxas.com
• LED power harness (2)
• 3x15mm cap-head screws (CS) (4)
• 3x12mm cap-head screws (CS) (10)
• 2.5x10mm cap-head screws (CS) (4)
• 3x10mm flat-head screws (FCS) (2)
• Zip ties (15)
Tools needed
(all not included and sold separately):
• Tapered body reamer
(part #3433 or #3433X)
• 2.0mm hex wrench
• 2.5mm hex wrench
1B
4859
3x10mm FCS
Covers Parts #10996, 10916, 10917, 10918, 10919
CAUTION: RISK OF INJURY!
Use care with hobby knives, tapered reamers, and
other cutting tools as they are extremely sharp and can
cause severe injury, deep cuts, and/or punctures.
CAUTION: RISK OF DAMAGE
TO ELECTRONICS!
damage to the electronic speed control (ESC) and/or the
high-voltage power amplifier, ensure the battery is
disconnected before plugging the amplifier into the ESC.
Body Modification:
Install the included cutting templates as
shown and cut two small 4.35mm holes on
the left and right sides of the vehicle body
(note the hole diameter measurements on
the body reamer).
3
4859
3x10mm FCS
Right Pod Light
2584
3x12mm CS
Insert the screw bosses on the base of the left pod light through the
reamed holes on the body and attach the pod light to the body cage
using two of the included 3x12mm cap screws and one 3x10 mm flat-
head cap screws. Repeat for the right pod light.
Visitez Traxxas.com/manuals pour télécharger
les instructions dans votre langue.
Visite la página Traxxas.com/manuals para
descargar el instrucciones en su idioma.
Auf Traxxas.com/manuals, können Sie
anleitung in Ihrer Sprache downloaden.
To prevent
Tapered Body Reamer
Diameter Measurements
Left Pod Light
HKC24010-R01 Rev 250327
