Traxxas PRO SCALE 1979 Quick Start Manual

Pro Scale Lighting
®
Kit contents:
• Distribution block mount (1)
• Reverse lights harness (1)
• Double jumper (1)
• 2.6x8mm button-head cap screws (2)
• Double-sided adhesive foam tape
• Zip ties (5)
Tools required:
• 1.5mm hex wrench
• 2.0mm hex wrench
Installation
This kit contains the installation components necessary to adapt
the part #8039 Blazer LED Light Kit for full compatibility with the Pro Scale
Advanced Lighting Control system, part #6591 (part #8039 and 6591 sold
separately).
If the 8039 LED light kit has already been installed, it will be necessary to
remove the existing distribution block and mount in the body and install
the new Pro Scale Lighting Distribution Block (part #6593, included with part
#6591) using the new distribution block mount supplied with this kit. These
instructions assume the 8039 LED Light Kit has already been installed.
If you are installing the 8039 LED light kit for the first time, then follow the
instructions included with the LED light kit except use the Pro Scale Lighting
Distribution Block along with the mounting bracket supplied with this kit.
In either case above, you will also install the reverse lights harness supplied
with this kit alongside the tail light harness in the body. See the wiring
diagram on the reverse side for supplemental information.

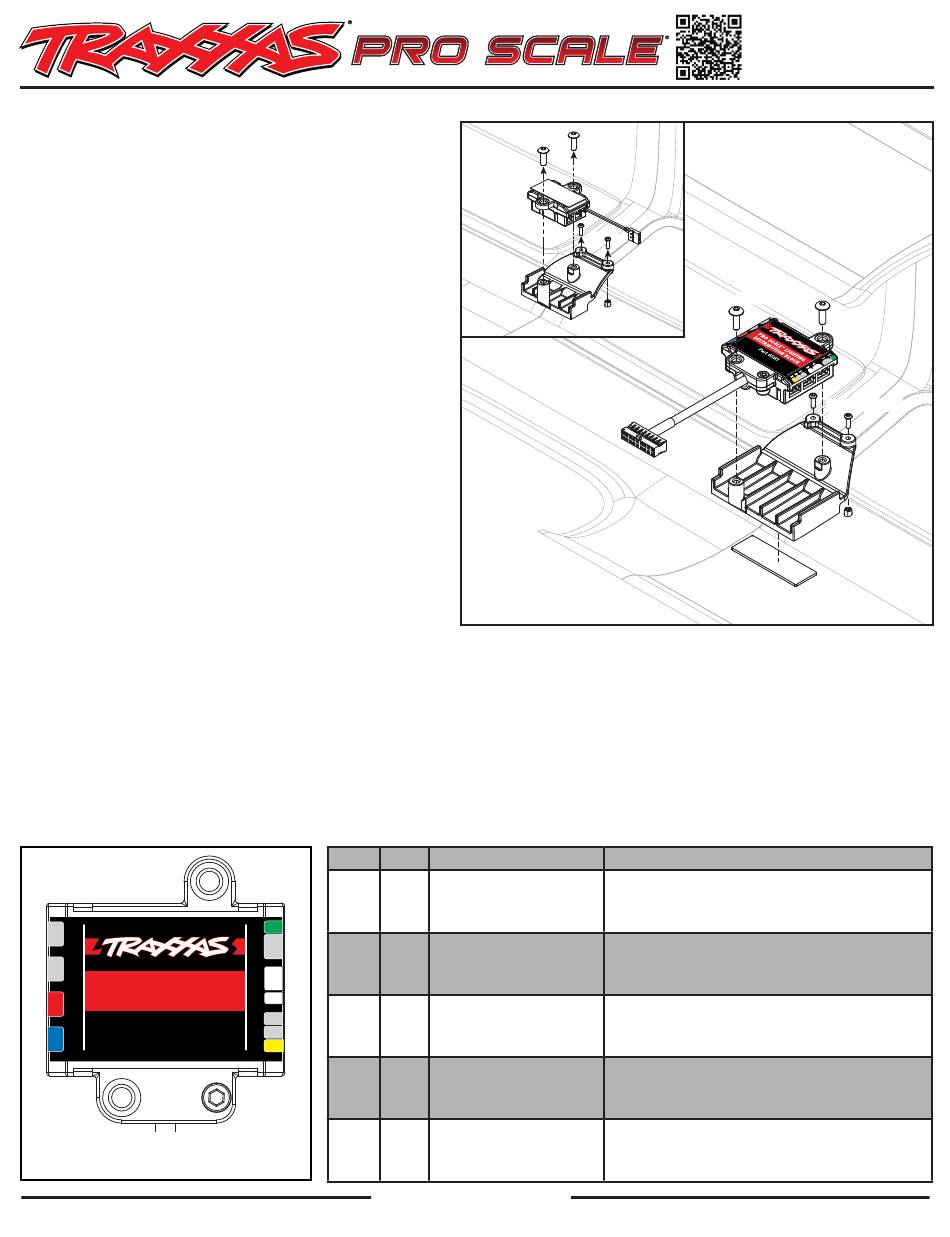

1. Remove the 1.6x8mm button-head screws (2) to remove the installed
distribution block and mount from the vehicle body (Fig. A1).
2. Unplug the installed LED light wire harness connectors from the existing
distribution block.
3. Peel the backing from one side of the included adhesive foam tape and attach it to the flat surface on the back of the new distribution block mount. Do not
remove the backing from the other side of the tape yet (Fig. A2).
4. Install the new distribution block mount and secure with the 1.6x5mm button-head screws (2) from step 1 (Fig. A2).
5. Gently flex the body away from the distribution block mount and remove the backing from the other side of the foam tape. Press the body against the mount
to adhere it to the mount.
6. Insert the LEDs on the included reverse lights harness into the tail light assemblies. The LEDs should snap into place. Route the wiring harness alongside the
brake lights harness in the body (see Wiring Diagram on reverse side). Remove the installed zip ties. New zip ties are provided to secure the wires after the new
harness is added. Secure the wiring to the body in the locations provided. The zip ties do not need to be tight; allow some extra length for wire movement.
7. Plug all LED light wire harness connectors and the included double jumper into the ports on the Pro Scale Distribution Block. Match the color band and/or
letter indicator on the wire harnesses with the corresponding color/letter of each port on the distribution block (see chart below).
8. Use the included 2.6x8mm button-head screws (2) to secure the distribution block to the mount (Fig. A2).
Distribution Block LED Light Harness Ports
A
PRO-SCALE
B
PRO SCALE LIGHTING
®
DISTRIBUTION
DISTRIBUTION BLOCK
C
BLOCK
Part 6593
#XXXX
D
Wiring connectors for the lights are
labeled with numbers and/or colors.
Traxxas, 6250 Traxxas Way, McKinney, TX 75070, Phone: 972-549-3000, Fax: 972-549-3011, e-mail: support@Traxxas.com
Installation Kit - 1979 Chevrolet
Letter Color
A N/A
E
F
C Red
™
G
H
K
F N/A
M
N
G White
H White
T R A XXA S . com
Fig. A1
Description Function
Reverse light harness Back up light LEDs when vehicle is put in reverse
Tail light harness
Tail lights, brake lights, and rear integrated turn signal LEDs
Rear integrated turn signal Install jumper when using rear integrated turn signals
jumper (single red LED for tail, stop, and turn)
Headlight assembly harness Headlights and front marker light LEDs
Front turn signal harness Front turn signal light LEDs
Visitez Traxxas.com/manuals pour télécharger
les instructions dans votre langue.
Visite la página Traxxas.com/manuals para
descargar el instrucciones en su idioma.
Auf Traxxas.com/manuals, können Sie
anleitung in Ihrer Sprache downloaden.
Blazer
® ®
Covers Part #8082
2.6x8mm BCS
1.6x8mm BCS
HKC20013-R00
Fig. A2
