Robotic Pool Cleaner
Detachable supply unit
Before charging, read the instructions
Correct Disposal of this product.
This marking indicates that this battery charger and battery pack should not be disposed
with other household wastes throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources. To return your used device, please
use the return and collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe recycling.
User Manual
DFC/RB/F001
1
Advertisement
Table of Contents
Related Manuals for ROBO-TEK DFC/RB/F001
Summary of Contents for ROBO-TEK DFC/RB/F001
-
Page 1: Table Of Contents
User Manual Robotic Pool Cleaner DFC/RB/F001 Detachable supply unit Before charging, read the instructions Correct Disposal of this product. This marking indicates that this battery charger and battery pack should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. -
Page 2: Product Introduction
Warning 1. Please read the instructions carefully and follow the instructions. Our company is not responsible for any loss or injury caused by improper use. 2. Only use the accessories recommended or sold by the manufacturer. 3. Do not let children ride on the cleaning vehicle or use it as a toy. 4. -
Page 3: Product Information And Specifications

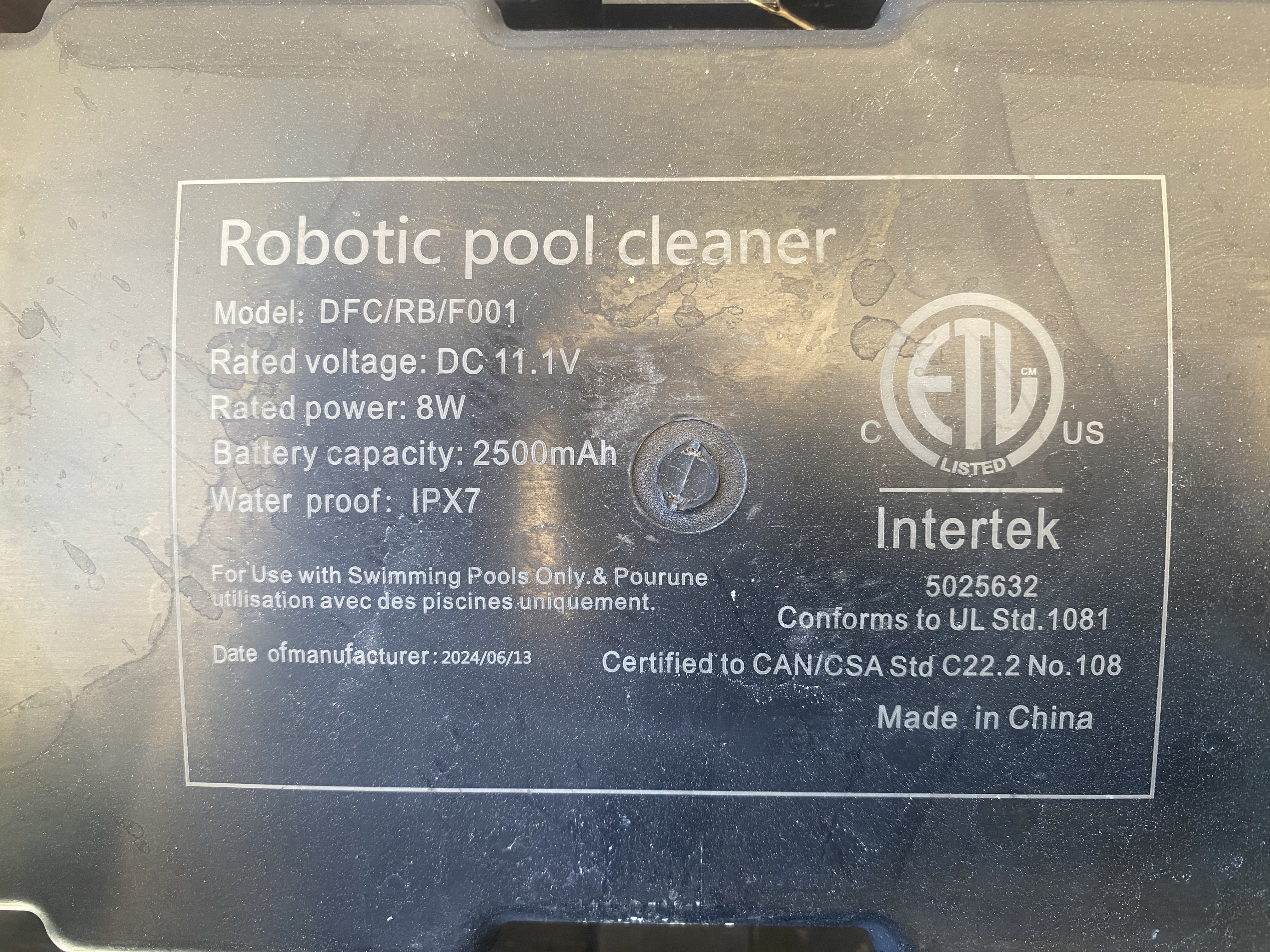

2.Product Information and Specifications Product Model DFC/RB/F001 Filtering Capability 860 SQ/FT（80 ㎡） Rated Voltage 11.1V Solar Panel Power Power Filtering Density 400um Cruising Ability More than 6 hours Movement Speed 5-10 meters/minute Rated Input Voltage of the 100-240VAC IP Code... -
Page 4: Function And Operation Instructions
3. Function and Operation Instructions 3.1 Function Instructions ⑨ ⑩ ⑪ ① ⑦ ⑧ ⑦ ⑧ ③ ④ ② ⑥ ⑤ ⑬ ⑫ ①Solar panel ⑦Machine left and right radar ②Function button (on/off) ⑧Machine left and right headlights ③Adapter charging prompt light ⑨Tail light ④Solar charging light ⑩Adapter charging port... - Page 5 Press the ② function button to switch between the quick cleaning mode and the normal cleaning mode, and the corresponding prompt light will also switch; Power on for normal cleaning mode. 5.Barrier and escape function When the radar senses obstacles such as the pool wall, it will automatically adjust the direction of movement. When the Robotic Pool Cleaner enters the blind zone or is trapped, it will automatically backslide and turn to escape.
- Page 6 Normal mode operation: green and blue light flashes when charging by sunlight; green light flashes fast or long when fully charged; Solar green light and Sports blue light blink when working in Sports mode and solar charging; Solar green light blinks fast or long when fully charged;...
-
Page 7: Notice
The Sports blue light blinks when Sport mode is operating and there is no solar charging; when then machine is turned off manually all the lights go off or when the battery is low ,thus you can only turn on the machine after it has been charged sufficiently. -
Page 8: Quick Actions
1. When the Robotic Pool Cleaner is placed, pay attention to the protection of the ⑪ side-to-side propulsion motor to avoid damage or deformation of the impeller. 2. Checking before starting, pay attention to the ⑪ side-to-side promotion motor and ⑬ rolling brush, whether there is stuck or foreign body entanglement which need to remove it first. -
Page 9: Disassembly And Cleaning Of Storage Basket
3.4Disassembly and cleaning of storage basket 1.Disassembly of storage basket Take out the storage basket in the direction of the arrow (the installation direction is opposite to the removal direction). 2. Storage basket cleaning... -
Page 10: Installation And Removal Of Station Feet
3.5 Installation and removal of stationary feet 1. Installation of the feet, as shown in the figure below 2.Standing foot removal, opposite of installation; 4.FAQ and Troubleshooting Guide Full battery life Normal mode: about 12 hours or more; Sport mode: about 8 hours or more; How long does it take for solar This is related to the intensity of the sunlight, usually in full sunlight, within half charging to go from standby to... -
Page 11: The Battery Power And Long-Term Storage In Winter
Troubleshooting Guide Status Probable Cause Solution No response after power-on. The battery is not sufficient Start with a quick charge with the charger or 1 hour in the sun. The machine stopped working soon The battery is not sufficient. Start with a quick charge with the after turned it on. -
Page 12: Packing List
6.Packing List Name Model Quantity Remark Robotic Pool Cleaner DFC/RB/F001 In Carton Battery Charger In Carton Storage Baskets In Machine User Manual In Plastic Bags Guarantee card In Carton Certification In Carton 7.Warranty Information This product has undergone all quality control and safety tests by the factory production department;...
Need help?
Do you have a question about the DFC/RB/F001 and is the answer not in the manual?
Questions and answers
I bought a Robotic Pool Skimmer Aug,16 2024.the Rolling brush has stopped and it is DFC/RB/F001. I am trying to get support on the warranty. Can not get a number or address to address this.
@Jackie Warren The roller might be 'off track'. You need to check the axel to make sure it is correctly positioned. I re-positioned mine with a pliers.

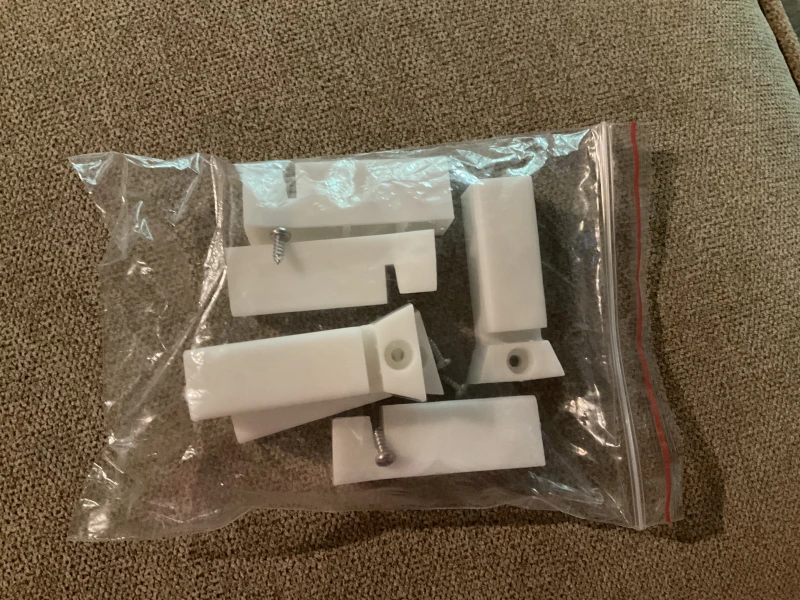

We bought a doc/rb/f001 pool skimmer. Included in the box was a plastic bag of white clips with screws. What are they for? There is no5hing in the manual to indicate how to use the m.
