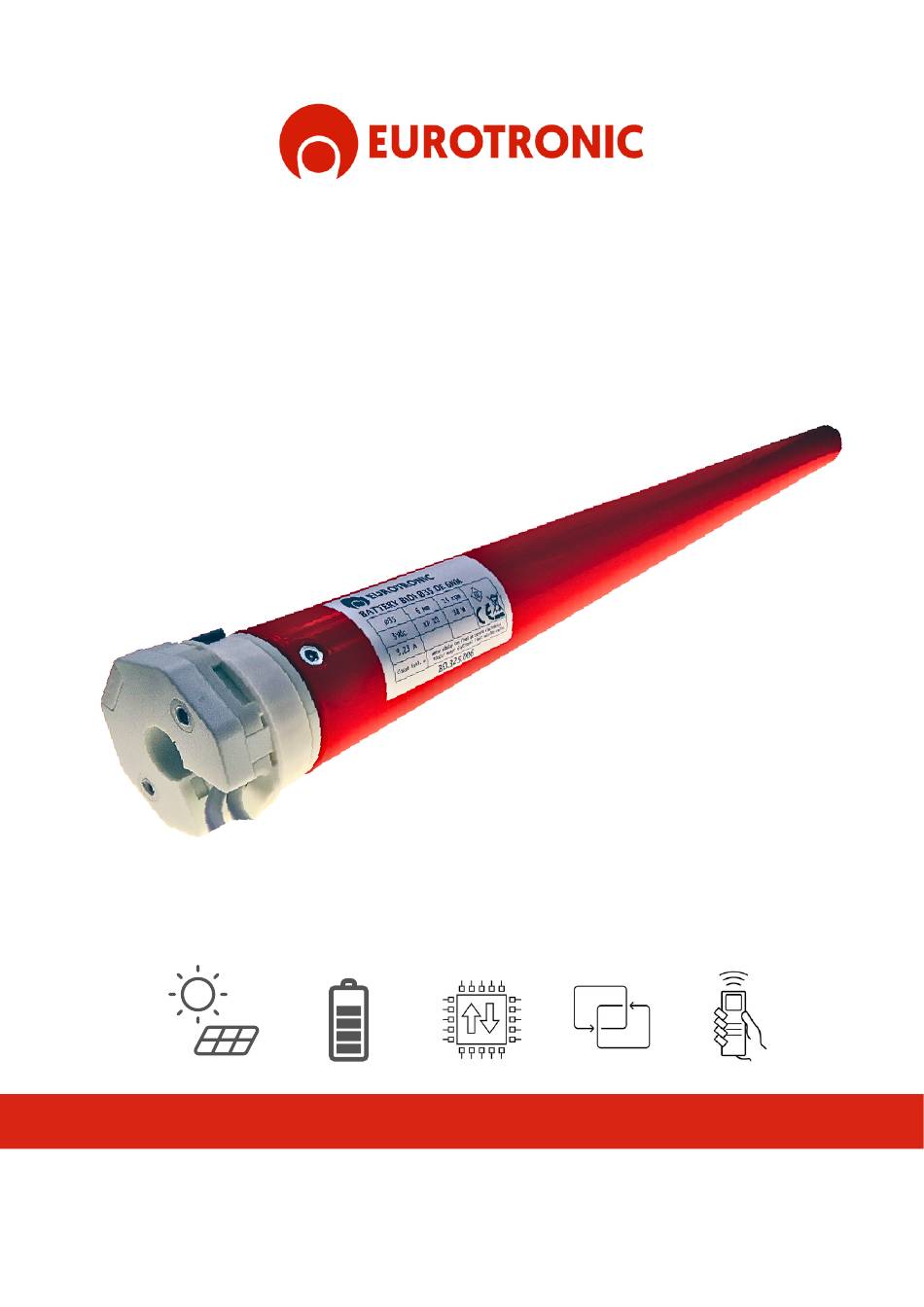

  • Page 1 BATTERY BIDI Built-in Electronic Compatible con Two-way Radio control panel solar battery limit switch protocol BATTERY BIDI Ø25mm | BATTERY BIDI Ø35mm | BATTERY BIDI Ø45MM...
  • Page 2 The battery offers three options for recharging: using a solar panel, through a conventional charger, or using a connector for monoblock drawers. REFERENCES BATTERY BIDI Ø25mm BATTERY BIDI Ø35mm BATTERY BIDI Ø45MM Ø25 mm Ø35 mm...

  • Page 3: Technical Characteristics

    TECHNICAL CHARACTERISTICS Length Par- Nominal Amperag Working Degree of Model Speed Feeding measure nominal power time rotations protection Weight ment 1,2/28 1.2Nm 28 rpm 8 In 0.94 A 6 min ∞ IP 20 475 mm 3 Kg 6/24 24 rpm 38 In 7.6 A 6 min...

  • Page 4: Battery Charging Options

    BATTERY CHARGING OPTIONS For Ø35mm motor 1. Charger + Type C cable 2. Panel solar The battery lasts approximately 12 months. At the end By using a solar panel, the need to manually charge of this period, you must charge the motor using a the motor battery is eliminated.

  • Page 5: Mounting Brackets

    ACCESSORIES FOR DIAMETER 25MM: Pulley 38 Corona 38 61.325.001 61.325.101 Pulley 43 61.325.005 Corona 43 61.325.105 ACCESSORIES FOR DIAMETER 35MM: Corona 40 octagonal Pulley 43 61.005.101 61.005.002 40 octagonal pulley 61.005.001 Pulley 56 Corona 56 61.005.003 61.005.103 Corona 43 61.005.102 Pulley 50 round 61.005.009 MOUNTING BRACKETS:...
  • Page 6 ACCESSORIES FOR DIAMETER 45MM: DEPRAT 54 octagonal pulley 61.005.099 50 octagonal pulley Corona 50 octagonal 61.005.010 61.005.110 Pulley 56 61.005.003 Corona 56 61.005.103 Corona 54 octagonal DEPRAT 61.005.098 Pulley 60 round Reinforced Crown 58 reinforced pulley 58 61.005.108 61.005.012 61.005.008 reinforced octagonal pulley 60 Corona 60 octagonal Reinforced octagonal crown 60...
  • Page 7 ACCESSORIES FOR DIAMETER 45MM: Pulley 70 BAT Pulley 70 centered Corona 70 BAT 61.005.029 61.005.014 61.005.129 warhead warhead warhead Crown 70 centered ogive 70 octagonal pulley Corona 70 octagonal 61.005.114 61.005.006 61.005.106 Pulley 78 Crown 78 Pulley 80 BAT 61.005.007 61.005.107 61.005.030 Warhead...

  • Page 8: Safety Warnings

    COMPATIBLE CON: KUMO WAVE KIK1 KIK15 KIKWALLL BD.100.001 BD.003.101 BD.003.115 90.003.101 KIKWALLL15 NOX SOLAR KIK SUN KIK MOVE WEATHER VANE 90.003.115 BD.003.115SUN BD.001.125 BD.002.124 12V 1A 3.5 JACK TYPE CHARGER BD.325.200.20 ROLLER SHUTTER BOX EXTENSION CONNECTOR BD.325.001 EXTENSION CABLE FOR ROLLER SHUTTER BOX BD.325.420 PANEL SOLAR TYPE C CABLE...
  • Page 9 INSTRUCTIONS: 1. LINK FIRST TRANSMITTER From remote control: (x1) (5'') ( x2 ) Click- Click-Clack Clack x2 Procedure: To give current. The motor will make a "CLICK-CLACK" sound (x1). Press (STOP) on the remote control to record for five seconds. The motor will make a "CLICK-CLACK"...
  • Page 10 2. CHANGE OF ADDRESS From remote control: (5'') (x2) Click- Clack x2 Procedure: Press the up and down buttons on the remote control at the same time for 5 seconds (5"). The motor will make two "CLICK-CLACK" sounds (x2). From the Motor button: (x3) (10'') Click-...
  • Page 11 3. PROGRAM THE DOWNHILL LIMIT SWITCH ( x2 ) (2 '') Click- Clack x2 Procedure: We will position the motor in the desired location using the up or down button on the transmitter. (if the up or down button is held down for 2 seconds the movement will be automatic) We will hold down the (DOWN + STOP) button for two seconds (2") to confirm.
  • Page 12 5. ADD/DELETE FAVORITE POSITION ( x2 ) (1'') (1'') (x1) (x1) Click- Click-Clack Click-Clack Clack x2 Procedure: We will position the motor in the desired favorite position using the up or down button on the transmitter. We will press the button (P2) located behind the transmitter. The motor will make a "CLICK-CLACK"...
  • Page 13 7. LINK/REMOVE AN ADDITIONAL TRANSMITTER From remote control: ( x1 ) ( x1 ) ( x2 ) Click- Click- Click- Clack x1 Clack x2 Clack x1 Procedure: Press the button (P2) located behind the already linked transmitter (A). The motor will make a CLICK-CLACK (x1) and a beep (x1). We will press the button (P2) of the same transmitter (A) again.
  • Page 14 8. DELETE ALL TRANSMITTERS (x1) (x1) (x2) Click- Click- Click- Clack x1 Clack x1 Clack x2 Procedure: Press the button (P2), of an already recorded transmitter, located on the back. The motor will make a "CLICK-CLACK" sound (x1) and a beep sound (x1). Next we will press the central button (STOP).
  • Page 15 10. RADIO BLOCKING (x2) (4'') Click- Clack x2 Procedure: Press the (PROG.) button on the motor head for ten seconds (4"). The motor will make two "CLICK-CLACK" sounds (x2). 11. RESET TO FACTORY MODE (x4) (8'') Click- Clack x4 Procedure: Press the (PROG.) button on the motor head for eight seconds (8").
