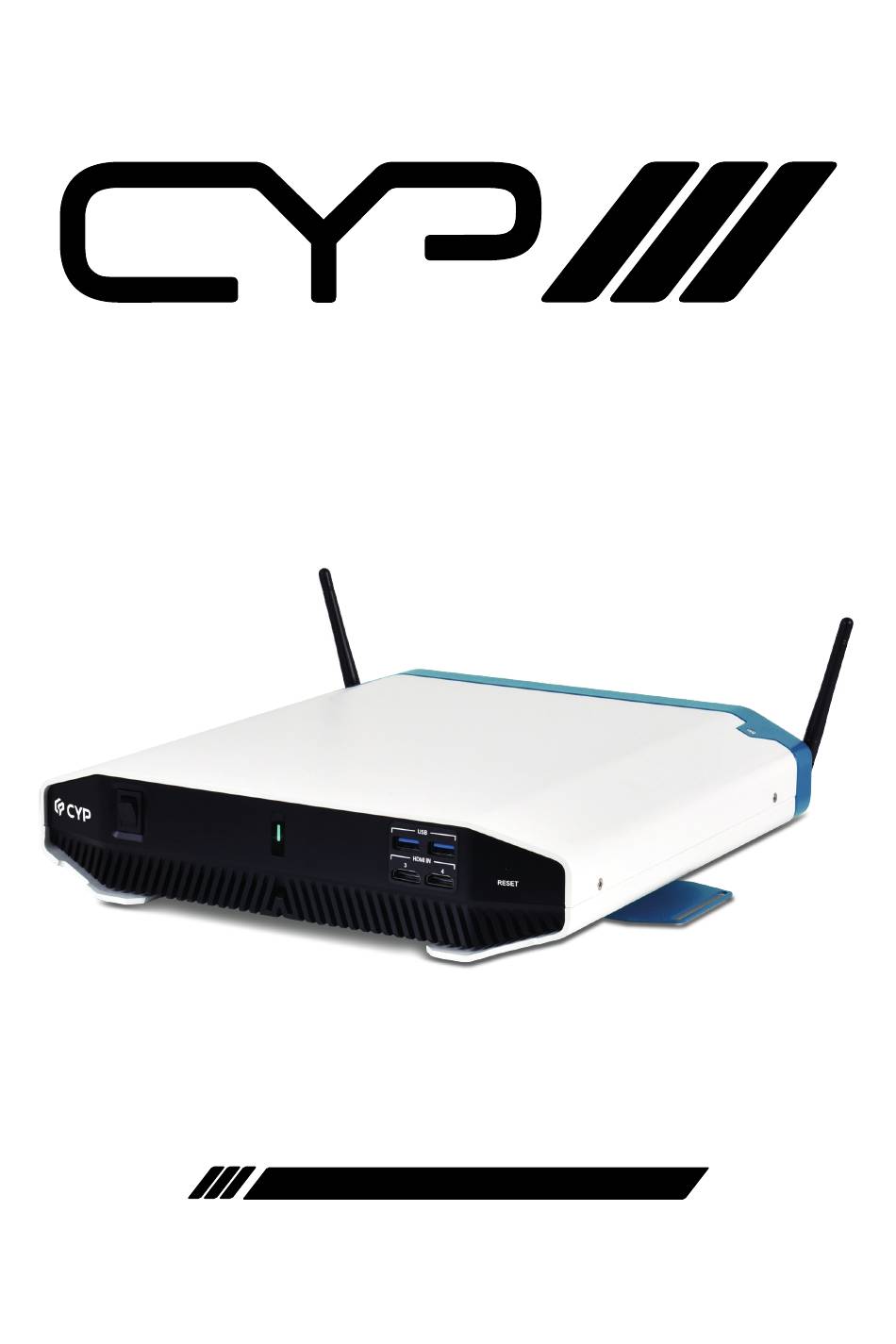

- Page 1 SDM-HBT1-TX Multi-viewer with Streaming Solution and Stand-alone PC-based System for Video Capturing OPERATION MANUAL...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents .........1 4. System Requirements ........1 5. Features ............2 6. Operation Controls And Functions....3 6.1 Front Panel .............3 6.2 Rear Panel ...............4 6.3 Serial (RS-232) Pinout and Defaults ....6 6.4 Serial (Remote) Pinout and Defaults ....6 7. -
Page 6: Introduction
1. INTRODUCTION The MED-VPR-8430 video recorder is dedicated design to integrate with multiple medical devices for video recording during operation or diagnosis. It supports high quality video of 4K@60 video input and output to display over HDMI. The video from medical devices such as endoscope, X-Ray system, ultrasonic, da Vinci Surgical System…etc. -
Page 7: Features
5. FEATURES 4 HDMI inputs 1 HDBaseT and 2 HDMI outputs Intuitive, and easy to use, graphical user interface Multi-windowing modes with support for window size, position and setting adjustments Per-input EDID management with internal or external EDID options Assignable macros for each trigger input on the unit Live video source previews Supports video recording and photo snapshot capture... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel HDMI IN HDMI IN HDMI IN RESET RESET RESET POWER Switch: Press this switch to power the unit on or off. POWER LED: This LED will illuminate to indicate the unit is on and receiving power. -
Page 9: Rear Panel
6.2 Rear Panel HDMI OUT HDMI OUT HDMI OUT HDMI IN HDMI IN HDMI IN 7 7 6 6 5 5 7 6 5 3 3 2 2 1 1 5V 5V 3 2 1 5V HDBT OUT HDBT OUT HDBT OUT TRIGGER IN TRIGGER IN... - Page 10 ISOLATED USB (4KV) Port: Connect directly to standard USB devices such as a mouse, keyboard or flash drive. Note: This port is designed for connecting to specialized, electrically isolated, USB devices. USB Device Ports: Connect directly to standard USB devices such as a mouse, keyboard or flash drive.
-
Page 11: Serial (Rs-232) Pinout And Defaults
6.3 Serial (RS-232) Pinout and Defaults Serial Port Default Settings Baud Rate 9600 Data Bits Parity Bits None Stop Bits DE-9 Male Port Flow Control None 6.4 Serial (Remote) Pinout and Defaults Serial Port Default Settings Baud Rate 9600 Data Bits Parity Bits None 3.5mm to DE-9... -
Page 12: Connection Diagram
7. CONNECTION DIAGRAM HDMI TV/Display PC/Laptop Endoscope USB Keyboard Mouse HDMI LINE Input Input HDMI Input HDMI TV/Display Web camera HDMI IN RESET HDMI HDMI Output Output Network Switch HDMI OUT HDMI IN 7 6 5 3 2 1 5V HDBT OUT TRIGGER IN Button Panel... -
Page 13: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI IN/Multi Bandwidth 18Gbps HDMI PC Out Bandwidth 10.2Gbps HDBaseT Bandwidth 10.2Gbps Input Ports 4×HDMI (Type-A) 1×Analog Stereo (3.5mm) 1×Microphone (3.5mm) Output Ports 2×HDMI (Type-A) 1×HDBaseT (RJ-45) 1×Analog Stereo (3.5mm) Control Ports 1×RS-232 (DE-9) 1×RS-232 (3.5mm) 1×LAN (RJ-45) 1×Isolated LAN (RJ-45) 3×USB 2.0 (Type-A) -
Page 14: Video Specifications
8.2 Video Specifications Input Output HDMI HDMI Supported Resolutions (Hz) HDMI (PC) (Multi) HDBT 720×400p@70/85 640×480p@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 ... - Page 15 Input Output HDMI HDMI Supported Resolutions (Hz) HDMI (PC) (Multi) HDBT 3840×2160p@50/60 (4:2:0),HDR10 3840×2160p@50/60 4096×2160p@24/25/30 4096×2160p@50/60 (4:2:0) 4096×2160p@24, HDR10 4096×2160p@50/60 ...
-
Page 16: Audio Specifications
8.3 Audio Specifications 8.3.1 Digital Audio HDMI Input / HDMI & HDBaseT Output LPCM Max Channels 2 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats None 8.3.2 Analog Audio Line Input Max Audio Level 2Vrms Impedance 18kΩ... -
Page 17: Cable Specifications
8.4 Cable Specifications Cable Length High Speed HDMI Cable HDMI Input HDMI Output Ethernet Cable Cat.5e/6 100m Cat.6A/7 100m 100m Bandwidth Category Examples: HD Video - 720p@60Hz - HDMI transmission rates lower than 3Gbps - HD-SDI (SMPTE 292M, 1.485Gbps) FHD Video - 1080p@60Hz - HDMI transmission rates between 3Gbps and 5.3Gbps... -
Page 18: Hdbaset Features
8.5 HDBaseT Features HDBaseT Feature Set Transmitter Video & Audio Extension Supported LAN Extension Unsupported Send power to Receiver Supported (PoH) Accept power from Receiver Unsupported IR Extension Unsupported RS-232 Extension Unsupported USB 2.0 Extension Supported 9. ACRONYMS ACRONYM COMPLETE TERM 4K UHD 4K Ultra-High-Definition (10.2Gbps max) 4K UHD... - Page 19 ACRONYM COMPLETE TERM HDMI High-Definition Multimedia Interface High Dynamic Range Internet Protocol Kilohertz Local Area Network Light-Emitting Diode LPCM Linear Pulse-Code Modulation Megahertz On-Screen Display Powered Device Picture in Picture Power over HDBaseT Picture outside of Picture Power Sourcing Equipment Signal-to-Noise Ratio Transmission Control Protocol THD+N...
- Page 20 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.10...
