Summary of Contents for Molilock JD-669

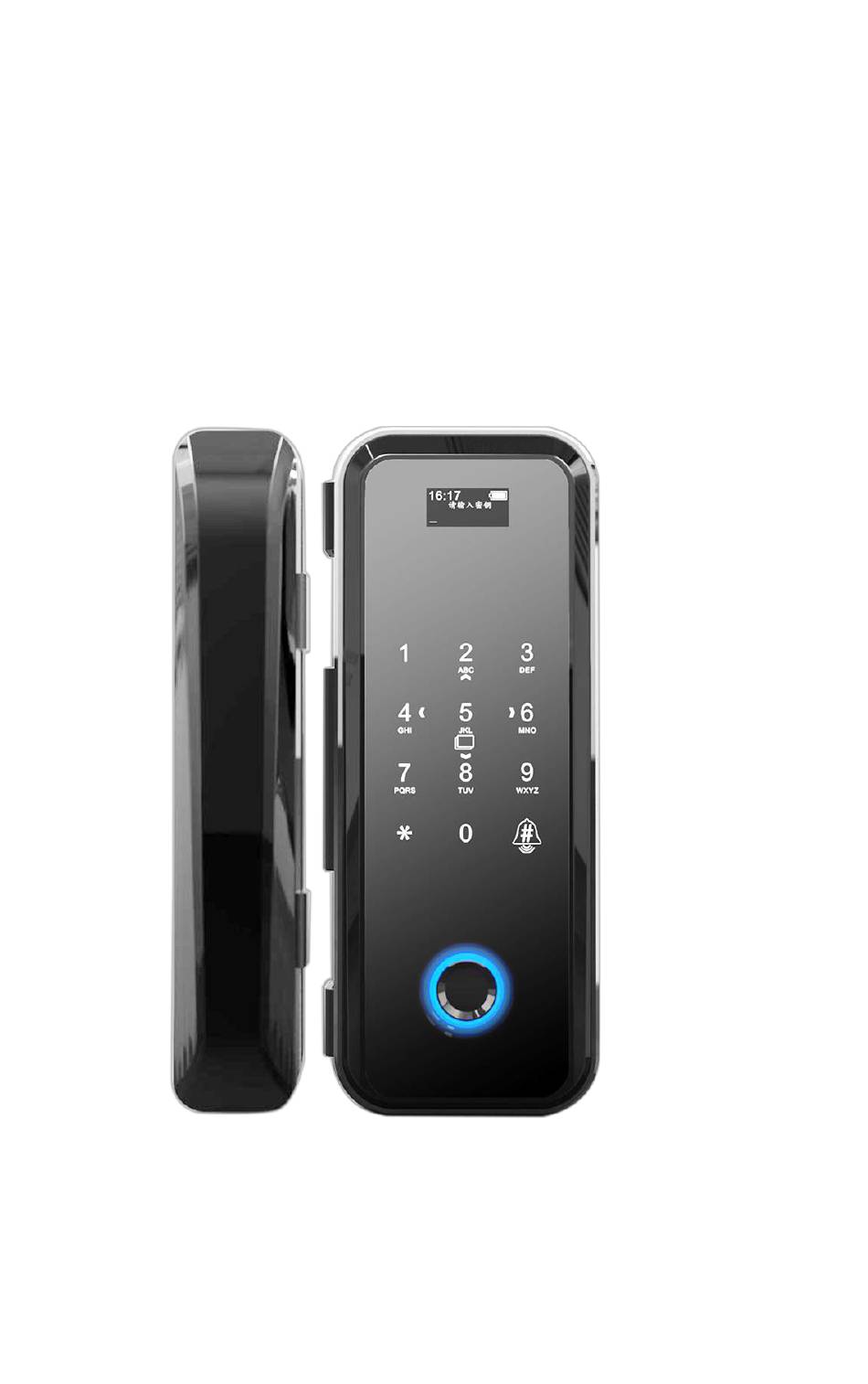

- Page 1 Smart Glass Door Lock: JD-669 Operation manual...
-
Page 2: Safety And Precautions
Safety and Precautions Electronic door lock as the high-tech products, the installation directly impact on the normal operation of the door lock and life, it is recommended that you have completed the renovation of the room before the installation of the door, please select the quality of personnel to install, and in strict accordance with the the company's installation standards to operating. - Page 3 Lock body(Schematic of lock) Outdoor lock Display screen Digital keyboard, swipe area The doorbell The fingerprint Emergency power interface Switch knob indoor Battery cover Indoor lock...
-
Page 4: Product Features
Smart Glass Door Lock Dimension Figure Product features (1)outdoor unlock 1. Enter the correct user (fingerprint. Password. Card) or the correct remote control key on the outdoor lock body, and the lock will automatically return to unlock. (2) Outdoor lock 1. - Page 5 Technology and parameter details 4pcs*1.5V“AA”alkaline batteries Working voltage High quality Fingerprint sesor type Optical sensor Password keyboard Capacitive touch keyboard 12 button（0~9，ensure，cancel） Number of keys Including managing passwords,fingerprints and cards Password capacity 300 groups Switch between Chinese and English Language models Chinese-English Without any working condition Screen display and fingerprint window light and...
-
Page 6: Acrylic Panel
Acrylic panel 1. When enter the main menu bar, number 2, 4, 6, 8, * and # keys backlight light up, 2 for the turn key, 4 for the left, 6for the right, 8 as the down key, * for the return key, # for confirmation key. - Page 7 5.Lock has added a user mode, you must enter "0 #", the button panel screen displays"Please entered password management (fingerprint) authorization" voice synchronization prompts "Please input management fingerprints or password", enter "key management member", press "#" key to confirm, then enter the main menu bar interface.
- Page 8 Smart Anti-theft lock instructions item Function Description Menu display Using OLED0.96 display, hierarchical management menu display mode System Press "0 + #" to enter the main menu bar system management interface, Manageme the initial state directly into the main menu bar Password by the user management, it can save 300 groups 6-10 password,initialization will delete all the Password...
- Page 9 The system has time memory, which provides the time basis for the unlock operation and can be adjusted Time setting according to the current time information. Time setting according to the current time information. Voice Different operations have voice navigation tips, adjustable volume prompts and select mute.
-
Page 10: Function Menu
Function menu navigation 1.Function menu Project item step 1 Step 2 Step 3 Step 4 Step 5 Step6 Step 7 Step 8 Edit Ente r t he Enter th e u th e Add th e n ew pa ne w New u ser se r password... -
Page 11: Factory Settings
Serial num ber ： 0 01 （ password ） Name： Ente r“0 admin #” Lo ck recor d En ter admin User Lo ck reco rd ma nageme passwor d Date： 2017 -05- time ： 12:10:12 ID： 536 1489 221 2 Ente r“0 V2 .2 x1 7052 #”... -
Page 12: Functional Instructions
theinformation such as fingerprints, password , management password recovery to factory Settings, the lock of the time willnot return to initialize. 3.Functional instructions 3.1 Administrator key Settings, changes and deletes 3.1.1 Administrator key settingEnter "0 #" on the keypad, the screen displays "Please enter the management password (fingerprint) authorization", voice synchronization prompts "... - Page 13 card once configured successfully. After confirming success, press "*" to exit the menu. If you want to input more than one key, repeat the above operation. 3.2.2 Delete the key Delete the key：Enter "0 #" on the keypad, the screen displays "Please enter the management password (fingerprint) authorization"...
- Page 14 settings interface, press "#" key to confirm, and then choose to use the language (Chinese and English) mode, press the "#" key to confirm,press "*" to exit. Note: replace the voice option with an initial operation 3.4 Volume adjustment function: Convenient for user to set the volume according to the user environmental needsVolume adjustment: Enter "0 #"...
- Page 15 synchronization prompts "Please enter the management password or fingerprint", enter the management key "such as 0123456789 ,then press" # "Key to confirm, enter the main menu interface, select" unlock record ", press" # "key to confirm the completion of the lock record query, press"...
- Page 16 Appendix I Common problems and exclusion of door locks Fault phenomenon Possible Causes Method of exclusion ①Replace the battery or Door card/fingerprint/password ① The battery is exhausted unlocked emergency power ② Others without reaction supply ②Please contact after-sales service ①Try again when the door is ①The door is not aligned Unlock the tongue fixed aligned...
-
Page 17: Configuration List
Appendix II Configuration list D o u b l P a rt na m e p a rt U n it S i n gl e B o r d er s id e d e s cri p t io n d o o r d o o r d o o r / w o o d e n... - Page 18 Dear customer： Thank you for using the smart glass door lock products, we will in accordance with the "People'sRepublic of China Consumer Protection Law", to provide you with one year free maintenance and life-longmaintenance services! 1.Within one year from the date of purchase, if the performance of non-personnel damage failure, consumers can provide the invoice and warranty book in the designated authorized maintenance shops to enjoy free maintenance services.
- Page 19 Smart Glass door lock installation instructions： 1. Change the former lock direction： When the direction of the door and the lock is not consistent, change the direction of the former lock bod y, re move the back of the four screws,the front lock body rotated 180°, and then tighten the four screws.
- Page 20 5.Install the rear lock body： Insert the line, arrange line straightening, install the rear lock body in the lock mounting plate, with 4pcs *M4X5 sunk head screw tightening. 6. Paste lock plate: (The outdoor) and the rear (indoor) are wiped clean, the rear lock body of the tongue out, so that the lock hole aligned on the tongue, bothsides of the same distance, with a pencil make the mark, remove the protective paper of the fixed plate in the lock, the two buttons on thefixed side of the lock plate close the side of the door, and slowly paste the...
-
Page 21: Warranty Card
Warranty Card Customer Name Communication Address Telephone Purchase place Product Model Dealer Signature Guarantee Clause： 1. Within half a month from the date of the sale of the goods, if there is a performance malfunction, the goods themselves and the outer packing must be kept intact (without scratch), the same type of goods can be changed (subject to inspection)It does not include human damage.
