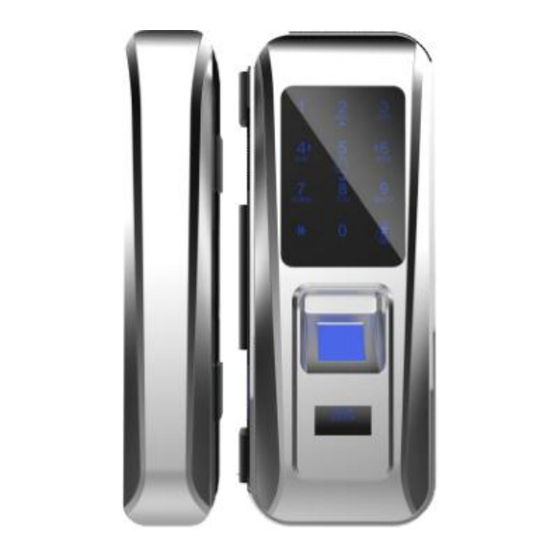

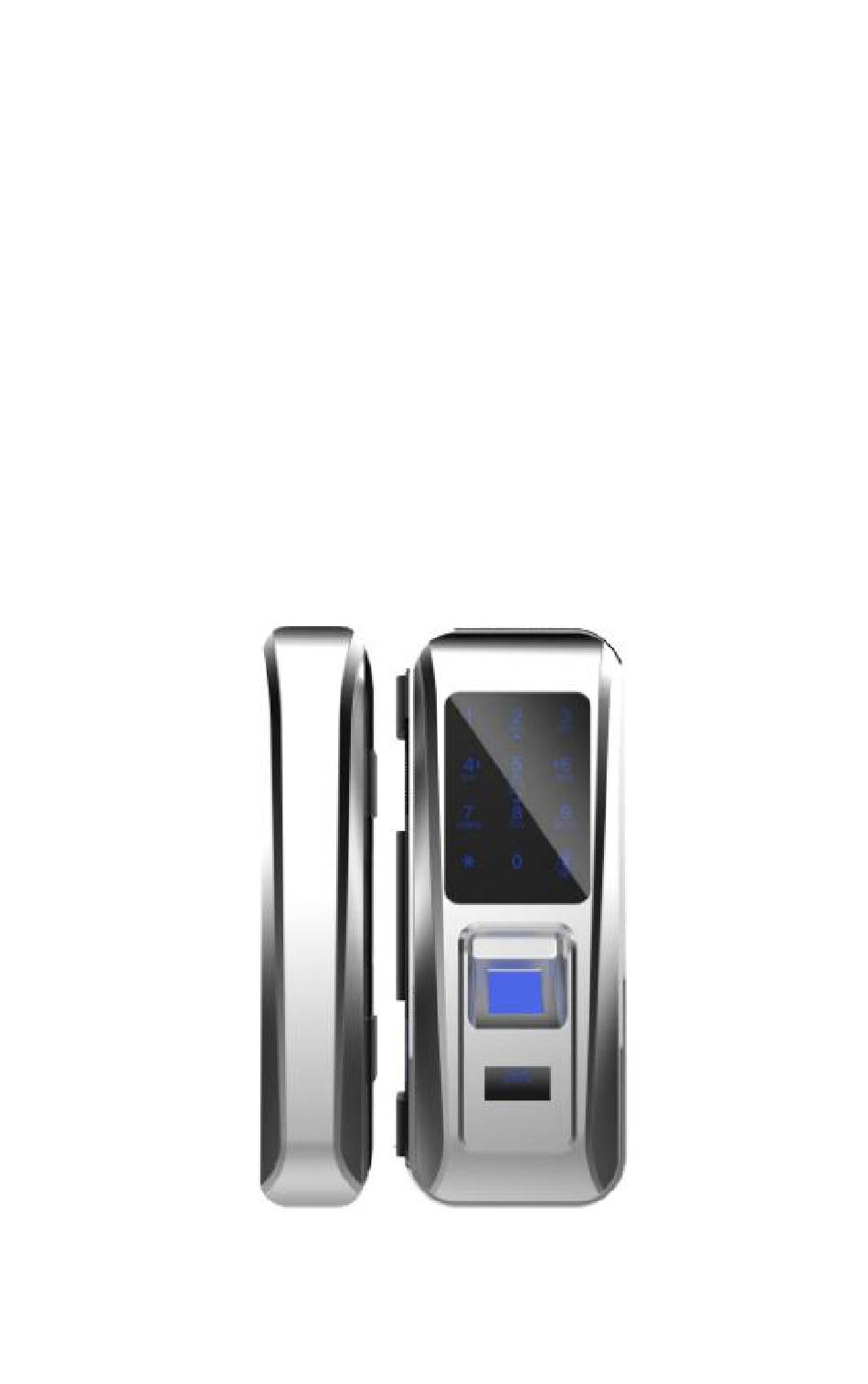

- Page 1 Smart Glass Door Lock: F05 Operation manual...
-
Page 2: Safety And Precautions
Safety and Precautions Electronic door lock as the high-tech products, the installation directly impact on the normal operation of the door lock and life, it is recommended that you have completed the renovation of the room before the installation of the door, please select the quality of personnel to install, and in strict accordance with the the company's installation standards to operating. - Page 3 Lock body(Schematic of lock) Outdoor lock Digital keyboard, swipe area The doorbell The fingerprint Display screen Emergency power interface Switch knob indoor Battery cover...
-
Page 4: Product Features
Indoor lock Smart Glass Door Lock Dimension Figure Product features (1)outdoor unlock 1. Enter the correct user (fingerprint. Password. Card) or the correct remote control key on the outdoor lock body, and the lock will automatically return to unlock. (2) Outdoor lock 1. -
Page 5: Matters Need Attention
Matters need attention 1.Please do not let water, drink and other liquid ingredients infiltrate into the product. 2.Do not use acid material to clean the door. Please update your password regularly. 3.Please pay attention to the battery usage and replace the battery in time. 4.Do not use sharp objects to scrape and beat the door lock. - Page 6 Technology and parameter details 4pcs*1.5V“AA”alkaline batteries Working voltage High quality Fingerprint sesor type Optical sensor Password keyboard Capacitive touch keyboard Including managing passwords,fingerprints Number of keys 12 button（0~9，ensure，cancel） cards Password capacity 300 groups Switch between Chinese and English Language models Chinese-English Without any working condition Screen display and fingerprint window light...
-
Page 7: Acrylic Panel
Acrylic panel 1. When enter the main menu bar, number 2, 4, 6, 8, * and # keys backlight light up, 2 for the turn key, 4 for the left, 6for the right, 8 as the down key, * for the return key, # for confirmation key. 2.When entering the input state of the add key, all digital backlight lights will be lit, for the digital password key. - Page 8 input management fingerprints or password", enter "key management member", press "#" key to confirm, then enter the main menu bar interface.
- Page 9 The use of fingerprints Precautions： When fingerprint collection window light is on , please press the correct method above the finger on the fingerprint collection window, about 1 second ,and the door is automatically completed fingerprint collection.
- Page 10 Smart Anti-theft lock instructions item Function Description Menu display Using OLED0.96 display, hierarchical management menu display mode Press "0 + #" to enter the main menu bar system management interface, the initial state directly into System the main Management menu bar Password by the user management, it can save 300 groups 6-10 password,initialization will delete all the Password...
- Page 11 Records query Can provide the most recent 10,000 open lock operation record. Power display With the power display function to show the current state electrical value.
-
Page 12: Function Menu
Garbled function Open lock password can be entered in 20 bits of password, as long as continuous input the correct password to open the door; Prevent others from watching and stealing passwords. Emergency open When the battery voltage is insufficient to drive the motor, the external power supply can be used for emergency the door door opening or mechanical key to open the door. - Page 13 mod es English...
- Page 14 Sing le temp Dynamic orary password password Period ic password Network temp orary password password Time slo t password Time slot password manage ment Start date 2017 -05-23 Ch ild End d ate 2017 -05-23 Ente r“0 #” 00:00～ 23 :5 9 Perm ission En ter admin User...
- Page 15 settings setting...
-
Page 16: Factory Settings
2. Factory Settings 2.1.After panel operating: enter "0 # " on the button panel, screen displays "Please enter the administrative password (fingerprint) authorization"and voice synchronization prompts "Please enter management password (fingerprint)", enter the management "0123456789",and press "#" key and ensure, then enter the main menu interface; turn the left or right in the column of the main menu find restore factory Settings. - Page 17 "#"to confirm, enter the main menu ,press "#" key to enter"User management" select "administrator" in the user list, press "#" key to enter, select "Edit password", select"Edit password", press "#" key to enter " Add a new password", enter the new password and press "#" to confirm the system automatically clear the original password.
-
Page 18: Lock Mode
3.2.2 Delete the key Delete the key： Enter "0 #" on the keypad, the screen displays "Please enter the management password (fingerprint) authorization" voice synchronization prompts "Please enter the management password or fingerprint", enter the management key "such as 0123456789", phen press "#"to confirm, enter the main menu ,press "#"... -
Page 19: Factory Reset
Language setting: enter "0 #" on the keypad, the screen displays "Please enter the management password (fingerprint) authorization" voice synchronization prompts "Please enter the management password or fingerprint", enter the management key "such as 0123456789" press the "#" key to confirm.Enter the main menu interface, select "lock mode", press "#" key to confirm, choose "language choice"... -
Page 20: Time Setting
3.8.1 Check Unlock record: the administrator check a specific user that when and which way to unlock Key Record query: enter "0 #" on the key panel, the screen displays "Please enter the management password (fingerprint) authorization" voice synchronization prompts "Please enter the management password or fingerprint", enter the management key "such as 0123456789 ,then press"... - Page 21 Appendix I Common problems and exclusion of door locks Fault phenomenon Possible Causes Method of exclusion Door card/fingerprint/password unlocked ① The battery is exhausted ①Replace the battery or emergency power without reaction ② Others supply ②Please contact after-sales service ①The door is not aligned ①Try again when the door is aligned Unlock the tongue fixed ②Not enough power...
-
Page 22: Configuration List
Appendix II Configuration list P a rt na m e p a rt U n it D o u b l e S i n gl e B o r d er s id e d e s cri p t io n d o o r d o o r d o o r / w o o d e n... - Page 23 Dear customer： Thank you for using the smart glass door lock products, we will in accordance with the "People's Republic of China Consumer Protection Law", to provide you with one year free maintenance and life-long maintenance services! 1. Within one year from the date of purchase, if the performance of non-personnel damage failure, consumers can provide the invoice and warranty book in the designated authorized maintenance shops to enjoy free maintenance services.
- Page 24 Smart Glass door lock installation instructions： 1. Change the former lock direction： When the direction of the door and the lock is not consistent, change the direction of the former lock bod y, re move the back of the four screws,the front lock body rotated 180°, and then tighten the four screws.
- Page 25 5.Install the rear lock body： Insert the line, arrange line straightening, install the rear lock body in the lock mounting plate, with 4pcs *M4X5 sunk head screw tightening. 6. Paste lock plate: (The outdoor) and the rear (indoor) are wiped clean, the rear lock body of the tongue out, so that the lock hole aligned on the tongue, both sides of the same distance, with a pencil make the mark, remove the protective paper of the fixed plate in the lock, the two buttons on the...
