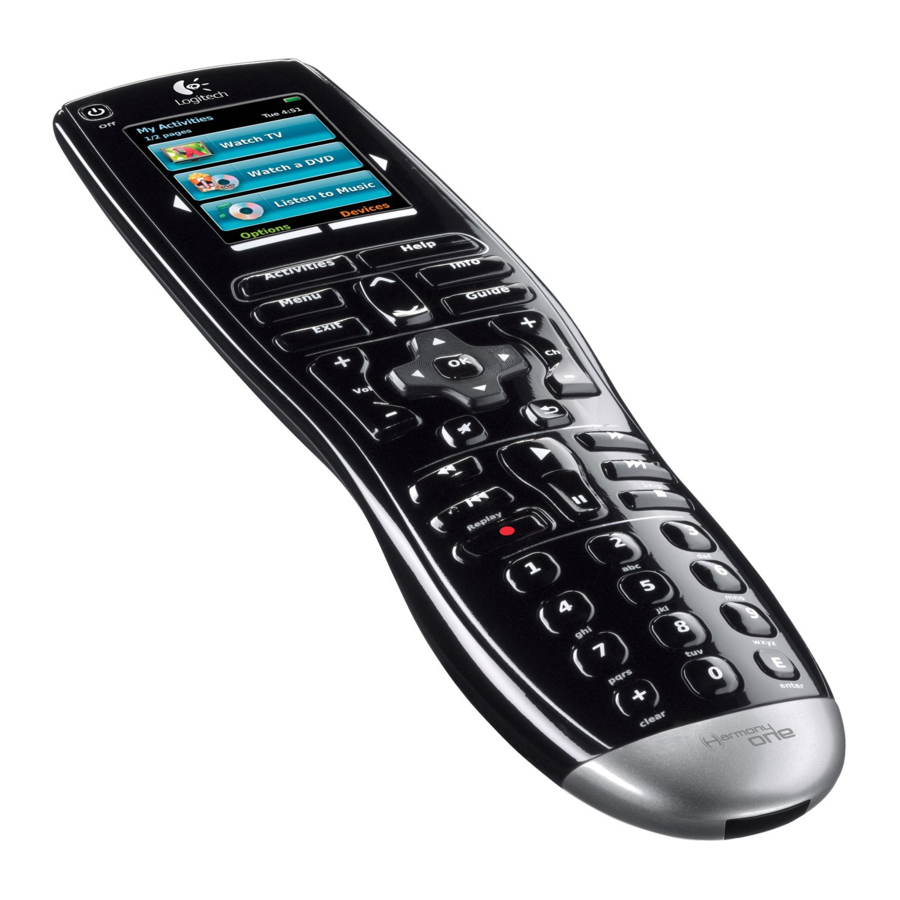

Logitech Harmony one Manual

Installation

Package Contents

1. Remote
2. Software CD
3. USB cable
4. Lithium-ion battery
5. AC Adapter
6. Charging station

Install Battery

Install battery in the remote.

Charge Battery

1. Connect AC cable into back of charging station.

2. Plug AC adapter into outlet.

3. Place remote in charging station to charge battery. The battery is fully charged when the charging indicator is completely green.


What to Expect During Setup

Set aside at least 30 minutes to set up your Harmony remote.

1. Gather the make and model of all the devices to be used with your Harmony remote.
2. Install the software
3. Create an account.
4. Enter device information.
5. Set up Activities.
6. Update, use, and adjust your Harmony remote.

Gather Device Information

Record your device information, see example:

1. Device type,
2. Manufacturer,
3. Model number

You will need this information during the online setup process. The make and model information for your device is most commonly found on the front, back, or bottom of the device.

Install Software

Windows

1. Turn ON the computer and ensure that an Internet connection is active.

2. To start setup. install the software by inserting the CD. Note:The CD installs an application that lets you configure and update your Harmony remote.

3. Connect the USB cable to a USB port on the computer. when prompted.

4. Connect the other end of the cable to the remote.


Macintosh

1. Insert the software CD and click the Harmony Remote Software icon on your desktop.

2. Double-click the file Harmony Remote Software.mpkg to install the software.
3. After installation, a message is displayed asking you to restart your computer. Click Restart.

4. Once the computer has restarted, connect the USB cable to the computer and your remote. Click Finder and then click the Application folder.

5. Double-click the Logitech Harmony Remote Software file. If the software doesn't start, click the Harmony icon in the dock.

Create an Account

Once you have installed the Logitech Harmony remote software, you will be guided through a series of steps to complete the setup process. The first step is to create your account so that you can update, customize, and adjust the settings for your remote at any time..

Set Up Devices

By providing information about the devices you have, the remote will be set up to properly control them. You will need to know the manufacturer and model number for your devices to complete this step.

Set Up Activities

Tell us how your devices work together to perform Activities. For example, to watch a DVD, your TV is on, and set to a specific input. Your DVD player is on, and sound comes from your stereo. You need to know how your devices are connected to complete this step.

Go Try Your Device

Follow the instructions displayed on the remote to test your settings. Press the Activities button and select an Activity to test. You may need to come back to the computer to adjust the settings.

Adjust Your Settings

Use the Harmony remote software to troubleshoot; make changes to your Activities, devices, and remote preferences; customize buttons; get help; and update the remote with any changes you've made.

For More Help

Check out the online User Manual, FAQs (Frequently Asked Questions), and the software's Help system. For support information and hours go to http://supportinfo.harmonyremote.com.

www.logitech.com

Features Guide

One remote and complete control

Your Harmony One controls up to 15 devices with touch screen simplicity to give you complete control of your entertainment system.
With Harmony One you can control virtually any home entertainment device - past, present, or future.

One touch to your entertainment

Simple tasks should be just that - simple. With Activities, the Harmony One eliminates the need to use multiple remotes for simple tasks. Just select the Activity and the Harmony One does the rest.
For example, when you select Watch a DVD, your Harmony One (1) powers on your TV and DVD player, (2) sets all your inputs, and (3) even starts your movie.

Setting up Activities for your Device

Creating the Activities that appear on your Harmony One is quick and easy.
After you enter the manufacturer and model numbers for your devices in the Harmony Remote Software, the software walks you through creating Activities for the things you do most often.

One touch to your Activities

The Activities button puts control of your entertainment system in one convenient location.
You can go from watching TV to watching a DVD to listening to music with a touch of the screen.

The right buttons for the right devices

After you create your Activities, the Harmony One knows which buttons need to control which devices. This way, the volume buttons always change the volume.

Watch the show

The touch screen

You can use the touch screen (A) to select Activities or change to a favorite channel.
Use the navigation arrows on the sides of the remote's screen (B) to see more options.

The touch screen is color-coded to remind you which menu you are In: .

• Blue for Activities
• Green for Remote Options
• Amber for Devices

Using the Harmony Remote Software, you can even select different themes for your remote's screen.

Customizing the buttons on your device

Looking for a button to do something specific? That's easy!
You can use the Harmony Remote Software to customize the buttons on the remote.
You can even create your own buttons that appear on the touch screen.

No picture/No sound? No problem

If a device doesn't do what you expect when you choose an Activity, press the Help button and the Harmony One uses simple yes or no questions to guide you through fixing the problem.

Creating a slideshow

With the Harmony Remote Software, you can create a slideshow of your favorite pictures that will show on your Harmony One's screen.

One touch to your favorite channels

The Harmony One puts all your favorite channels in one spot!
Using the Harmony Remote Software, choose the channels you watch most often and they will appear in one location on the remote's screen.
You can even add graphics and logos to each channel that shows on your remote's screen.

Always be up-to-date

At Logitech, we like to keep up-to-date on the latest technology. That's why we keep updating our device list, so you can get the most out of your Harmony One.
We also enhance the software that drives your remote, so it's important to update it every so often!

To update your remote, simply connect the remote to your computer and start the Harmony Remote Software. It will update your remote automatically.

Your device is always learning new tricks

Although we update our device list often, there are always new devices in the market.
If you have a device that's not in our list yet, we've still got you covered:

• You can use the Harmony One and the Harmony Remote Software to learn from your device's original remote.


As a result, your Harmony One is never out-of-date.

Controlling devices one-by-one

If you need a rarely-used function from one of your devices' original remotes, press the Devices button and select the device you want to control.
After you select the device, all the functions of the device's original remote are available using your Harmony One.
When you're done, return to Activities for optimal control of your entertainment system.

System requirements

IBM compatible PC

• Windows 2000, Windows XP Windows Vista
• USB port
• CD-ROM drive
• Internet access

Macintosh

• Macintosh OS X 10.3 or later
• USB port
• CD-ROM drive
• Internet Access

Customer Support

Important Information

Care and Maintenance. Do not open the remote. There are no user-serviceable parts inside. Do not allow moisture to enter the unit. Moisture will corrode the inner electronics. To clean the LCD screen, wipe gently with a dry cloth. Any changes or modifications not expressly approved by Logitech' Inc. void the user's authority to operate the equipment and could void the warranty.

Power Supply Warning. The power supply for this product is for indoor use only. Use the power supply that comes with your product; do not use any other power supply. Do not use a damaged power supply or attempt to repair one that is damaged. Do not immerse the power supply in water or subject it to physical abuse. Inspect the power supply regularly for damage to its cable, plug, and body.

Warranty

How to Obtain Warranty Support. Before submitting a warranty claim, we recommend you visit the support section at www.logitech.com for technical assistance.
The addresses and customer service contact information for Logitech can be found in the documentation accompanying your product and on the web at www.logitech.com/contactus.

Logitech Address
Logitech, Inc.
6505 Kaiser Drive
Fremont. california 94555
U.S.A.

Need help using your product

Logitech provides several places where you can go to get help setting up or using your Harmony Remote:

• Web: www.logitech.com
• Online User Manuals
• User Forums
• Online Help
• Phone Support - for a list of support information and hours, go to:
  supportinfo.harmonyremote.com
  (yes, you can actually talk to a real person!)
