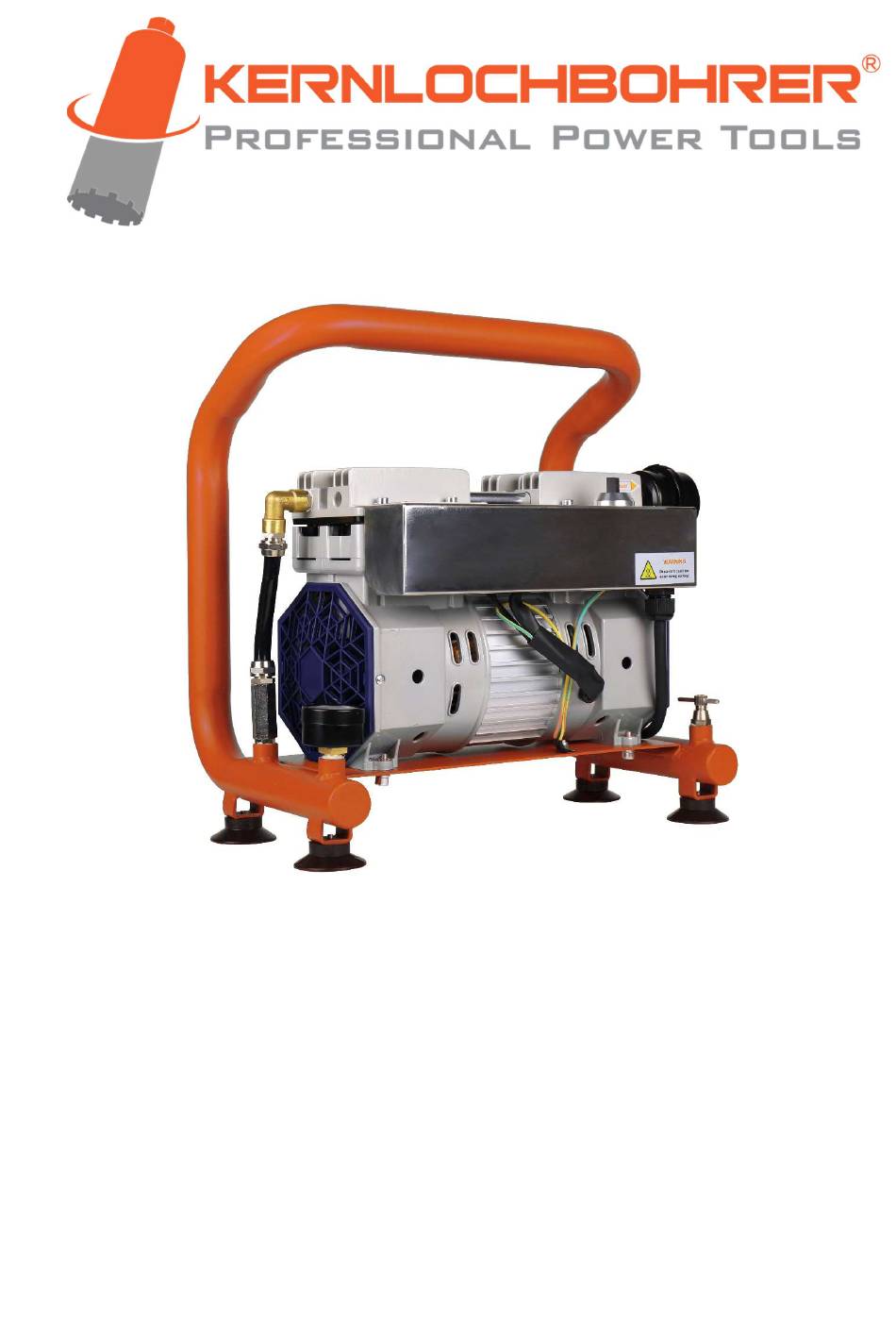

- Page 1 Operating instructions Vacuum pump VP-113/PRO BA-07-000002-01-EN...
- Page 3 Kernlochbohrer GmbH. Subject to errors and technical changes. Kernlochbohrer GmbH is not liable for any errors in this documentation. Liability for direct or indirect damages arising in connection with the delivery or use of this documentation is excluded to the extent permitted by law.
-
Page 4: Table Of Contents
Operating instructions Vacuum pump VP-113/PRO Table of contents Information and support ................6 Thanks to the buyer ................6 Using the Operating instructions ............6 Changes ....................6 Explanation of symbols ................ 7 Guarantee .................... 7 Environmental protection..............8 1.6.1 Disposal of the product .............. - Page 5 Operating instructions Vacuum pump VP-113/PRO Utilisation of the machine ................. 21 Specific precautions ................21 Optical inspection ................22 Electrical connection ................22 Switch on the machine ............... 24 Switch off the machine ............... 26 Store the machine ................27 EU Declaration of Conformity ..............
-
Page 6: Information And Support
By following the Operating instructions, you will be able to fully uti- lise the outstanding performance of our product. If you have any questions regarding the operation of the machine, please con- tact Kernlochbohrer GmbH directly. We are available to answer your questions at any time. Using the Operating instructions The machine is intended for professional use and may only be operated by trained personnel. -
Page 7: Explanation Of Symbols
Background information or reference to special features. Guarantee In accordance with Kernlochbohrer GmbH's general terms of delivery, a war- ranty period of 12 months applies for material defects in business transactions with companies (proof by invoice or delivery note). -
Page 8: Environmental Protection
Operating instructions Vacuum pump VP-113/PRO Environmental protection 1.6.1 Disposal of the product Follow national regulations on environmentally friendly disposal and recycling of used machines and accessories. For EU countries only: Do not dispose of the device with household waste! In accordance with Euro-... -
Page 9: Service
Operating instructions Vacuum pump VP-113/PRO Service Precise information and specific questions allow faults to be rectified quickly, make it easier to order spare parts and prevent incorrect deliveries. Before contacting the service, please collect the following data first. The model designation must be stated in all enquiries and orders. This infor- mation can be found on the rating plate of the machine. -
Page 10: Security
"Technical data" chapter. Any other use or use beyond this is considered improper use - risk of accident! Kernlochbohrer GmbH is not liable for any resulting damage. The risk is borne solely by the operator. Intended use also includes observing the operating instructions and complying with the prescribed maintenance intervals. -
Page 11: Safety Regulations For The Operator
Changes to the device The operator may not make any modifications to the machine without written authorisation from Kernlochbohrer GmbH. If the operator carries out modifica- tions without authorisation, the warranty becomes void. Kernlochbohrer GmbH is not liable for damage caused by unauthorised modifications. -
Page 12: Spare Parts
Spare parts Spare parts must comply with the properties defined by Kernlochbohrer GmbH. This is always guaranteed for spare parts supplied by Kernlochbohrer GmbH. Kernlochbohrer GmbH is not liable for damage caused by the use of unsuitable spare parts. 2.3.4... -
Page 13: Safety Regulations For Staff
Operating instructions Vacuum pump VP-113/PRO Safety regulations for staff 2.4.1 Safe behaviour All persons responsible for commissioning, operating and maintaining the ma- chine must have read and understood the Operating instructions beforehand. The machine may only be operated by persons who have been adequately in- structed beforehand. -
Page 14: Safe Operation
Operating instructions Vacuum pump VP-113/PRO 2.4.2 Safe operation Operating the machine requires the full concentration and ability of the person- nel. Persons who are overtired, unable to concentrate or under the influence of alcohol, drugs or medication must not work on or with the machine. -
Page 15: Protective Equipment
Operating instructions Vacuum pump VP-113/PRO 2.4.3 Protective equipment Wearing protective equipment reduces the risk of injury: - Safety shoes with non-slip sole and protective toe cap - Cut-resistant and non-slip gloves - Safety goggles according to standard EN 166 or face protection... -
Page 16: Safety During Maintenance
Operating instructions Vacuum pump VP-113/PRO Safety during maintenance 2.5.1 General information The machine may only be serviced by persons who have completed the ap- propriate specialised training for this activity. The maintenance activities and intervals specified in the Operating instructions must be observed. -
Page 17: Technical Data
Operating instructions Vacuum pump VP-113/PRO Technical data Article number 6256 Power consumption 430 W Tension 230 V± 5% | 50 Hz Generated negative pressure 0.7 bar Air flow 113 L/min Length 390 mm Width 230 mm Height 390 mm Weight 14.3 kg... -
Page 18: Machine Description
Operating instructions Vacuum pump VP-113/PRO Machine description Machine components Front page Transport handle and vacuum tank On/off switch Air outlet silencer Vacuum pressure gauge Stand (4 pieces) Vacuum generator Ventilation valve Mains cable BA-07-000002-01-EN 2025-02-02... - Page 19 Operating instructions Vacuum pump VP-113/PRO Back Water separator Connection for vacuum hose 2025-02-02 BA-07-000002-01-EN...
-
Page 20: Scope Of Delivery
The vacuum base plate required for using the device as well as the Core drilling machine and Core drilling rig must be procured sepa- rately. Kernlochbohrer GmbH offers an extensive range of machines, tools and accessories for the device. The webshop http://www.kernlochbohrer.com is available for information and or- dering. -
Page 21: Utilisation Of The Machine
Operating instructions Vacuum pump VP-113/PRO Utilisation of the machine In these Operating instructions, the term drilling system is used for a combination of Core drilling rig, Core drilling machine and drill bit. The vacuum base plate, Core drilling rig and Core drilling machine may only be used in accordance with their Operating instructions. -
Page 22: Optical Inspection
- The mains cable and connection plug must not be damaged. - Damaged mains cable or damaged mains plug may only be replaced by Kernlochbohrer GmbH or a qualified electrician. - The mains plug and socket must be clean and dust-free. - Page 23 Operating instructions Vacuum pump VP-113/PRO - When connecting the machine to the mains, a residual current device (RCD) with a maximum tripping current of 30 mA must be connected upstream. - The machine is supplied with a type F mains plug (CEE 7/4). It may only be operated with the corresponding safety sockets (CEE 7/3).
-
Page 24: Switch On The Machine
Operating instructions Vacuum pump VP-113/PRO Switch on the machine Core drilling rig Vacuum base plate Vacuum hose Vacuum pump BA-07-000002-01-EN 2025-02-02... - Page 25 Operating instructions Vacuum pump VP-113/PRO Risk of burns! The vacuum pump motor becomes very hot during operation (70 - 80°C). Do not touch the vacuum pump during operation and allow it to cool down sufficiently at the end of operation! Procedure: ...
-
Page 26: Switch Off The Machine
Operating instructions Vacuum pump VP-113/PRO Switch off the machine Procedure: Drilling process completed. Core drilling machine removed from the Core drilling rig. Core drilling rig removed from vacuum base plate. Switch off the vacuum pump at the on/off switch. -
Page 27: Store The Machine
Operating instructions Vacuum pump VP-113/PRO Store the machine Procedure: Machine switched off and cooled down. Close the ventilation valve of the vacuum tank. Store the machine in a dry, cool place protected from moisture and direct sunlight. -
Page 28: Eu Declaration Of Conformity
Electromagnetic compatibility (EMC) - Part 6-3: Generic standards - Emission standard for residential, commercial and light-industrial envi- ronments Name and address of the person authorised to compile the technical documentation: Kernlochbohrer GmbH | Geigersbühlweg 52 | 72663 Großbettlingen | Germany Großbettlingen 02.02.2025 Kernlochbohrer GmbH Guido Pillat...
