- Page 1 Operating instructions Vacuum pump VP-113/PRO Kernlochbohrer GmbH Geigersbühlweg 52 72663 Großbettlingen Tel. 07022-5034900 E-Mail: info@kernlochbohrer.com Version 0 1. Output 05/2023...
-
Page 2: Table Of Contents
Content Introduction About this guide Note Safety regulations Commissioning Attention Technical data Product description Use with a vacuum base plate Environmental protection Warranty EC Declaration of Conformity... -
Page 3: Introduction
Read the entire instruction manual carefully before using the vacuum pump. Special attention should be paid to the section "Safety precautions". Kernlochbohrer GmbH reserves the right to change the design and appearance of the products and their operating instructions. Future changes to the operating... -
Page 4: Safety Regulations
Safety regulations Read all precautions before commissioning and keep the operating ❖ instructions. Please follow the operating instructions carefully, as failure to observe these ❖ safety precautions and instructions may cause electric shock, fire and/or serious injury. 1. Check the unit, cables and plugs before each use. Only have damage repaired by a specialist. - Page 5 9. No liability is accepted for any damage caused by misuse, improper operation or improper repair. 10. There is a risk of electric shock if the appliance earth conductor is not connected properly. Consult a qualified electrician or service person if in doubt about whether the socket is properly earthed.
-
Page 6: Commissioning
Commissioning Check the voltage indicated on the rating plate on the bottom. Make sure it matches the line voltage of the socket you want to use. Install the unit in a clean, dust-free and ventilated area below 40°C. Before activating the vacuum function, connect the pump inlet with a high-pressure hose to the vacuum outlet of the unit to be connected. -
Page 7: Technical Data

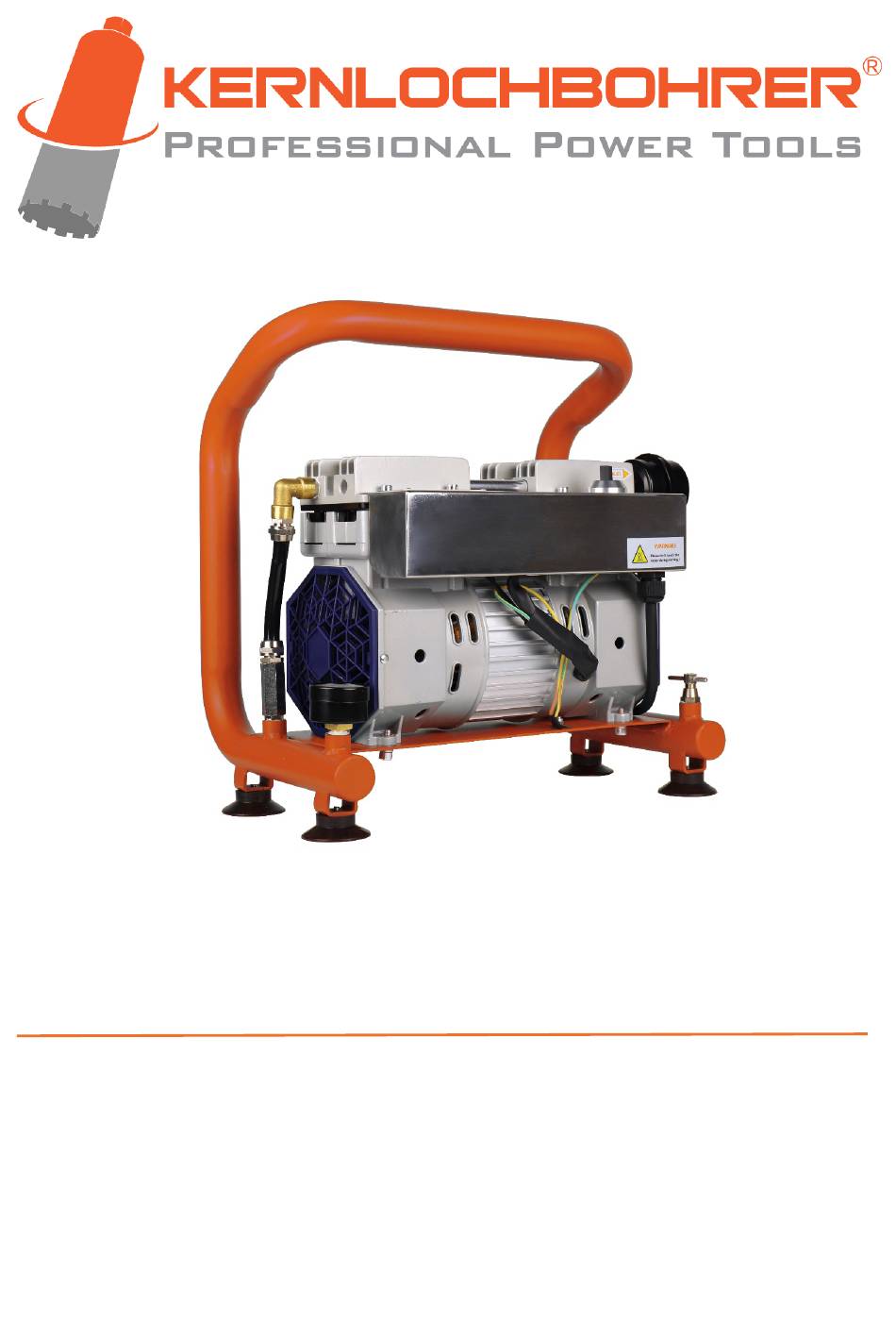

Technical data Voltage 230 V/50 Hz Power 430 W Air flow 113 L/min Speed 1440 1/min Amper 3.6A Max. Pressure -0.09MPA Weight 14.3kg Product description 1. Exhaust silencer 2. Air hose quick connector (not visible on the picture) 3. Vacuum manometer 4. -
Page 8: Use With A Vacuum Base Plate
Use with a vacuum base plate Please prepare all necessary tools, including vacuum pump, vacuum hose, vacuum base plate and adjustment tool. Use adjustment tools to mount the core drill rig on the vacuum base plate. Connect vacuum pump to vacuum base plate with vacuum hose. -
Page 9: Environmental Protection
Now switch on the vacuum pump to test the function. Please read and observe the operating instructions for the vacuum base plate. Depending on the manufacturer, the operation may differ slightly. Environmental protection Raw material recovery instead of waste disposal! To avoid transport damage, the unit must be delivered in sturdy packaging. -
Page 10: Warranty
Warranty In accordance with our general terms and conditions of delivery, a warranty period of 12 months applies for material defects in business transactions with companies (proof by invoice or delivery note). Damage caused by natural wear and tear, overloading or improper handling shall remain excluded from this. Damage caused by material or manufacturer defects shall be remedied free of charge by repair or replacement. -
Page 11: Ec Declaration Of Conformity
EC Declaration of Conformity The manufacturer/marketer Kernlochbohrer GmbH Geigersbühlweg 52 72663 Großbettlingen hereby declares that the following product Product designation: Vacuum pump Typ: VP-100/PRO VP-113/PRO complies with all relevant provisions of the applied legal regulations (hereinafter) - including their amendments in force at the time of the declaration.
